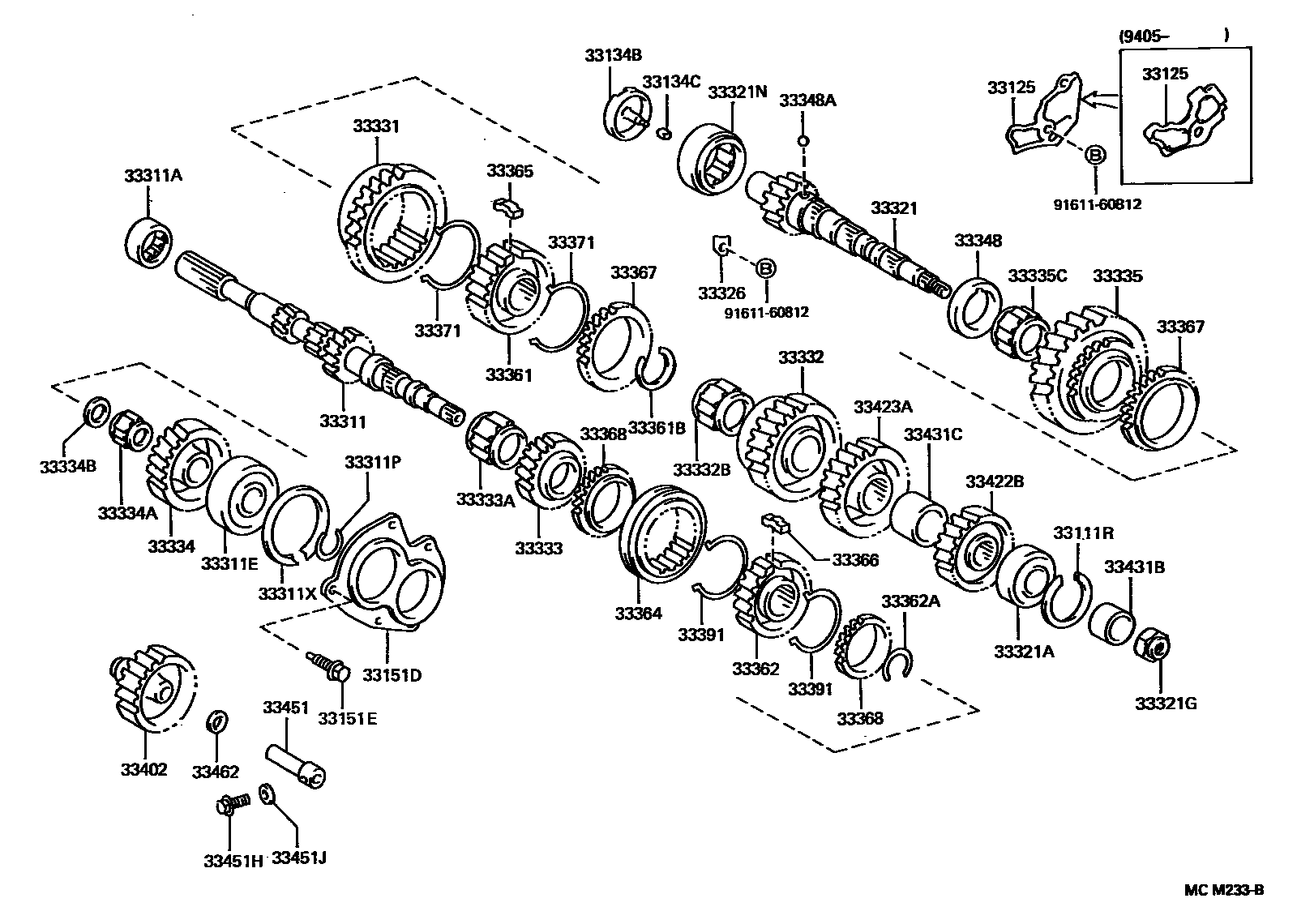

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33134BCOVER, OUTPUT SHAFT(MTM)
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25035
sub90363-25065
sub90363-25091
sub90363-25092
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
sub33034-10051
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12110
sub33034-12111
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
sub33035-12091
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
33364SLEEVE, TRANSMISSION HUB, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
2ND GEAR SIDE
2ND GEAR SIDE
1ST GEAR SIDE
2ND GEAR SIDE
2ND GEAR SIDE
33368RING, SYNCHRONIZER, NO.2
4TH GEAR SIDE
4TH GEAR SIDE
3RD GEAR SIDE
3RD GEAR SIDE
33422BGEAR, 4TH DRIVEN
sub33422-12090
33431BSPACER, OUTPUT SHAFT
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
9161160812
main91611-60812
49 parts on this diagram · 3 diagrams in section
