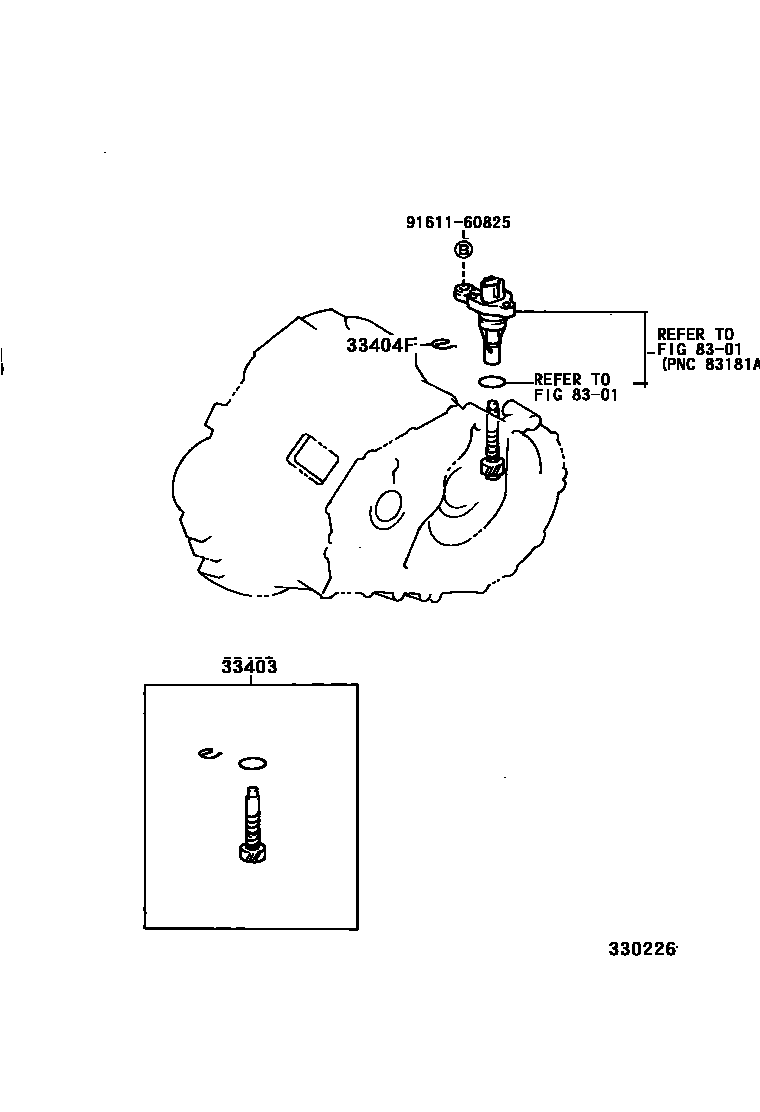

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19445iEE100..MTM199205-199710

N=30,MARK 30:34

main33403-19455iAE101..5F..GL199205-199405

N=30,MARK 30:35

main33403-19465iAE10#..5F199205

N=31,MARK 31:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE10#,EE100..MTM199205

8301METER

→ Go to FIG 83-01

9161160825

main91611-60825

4 parts on this diagram · 1 diagram in section
