TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

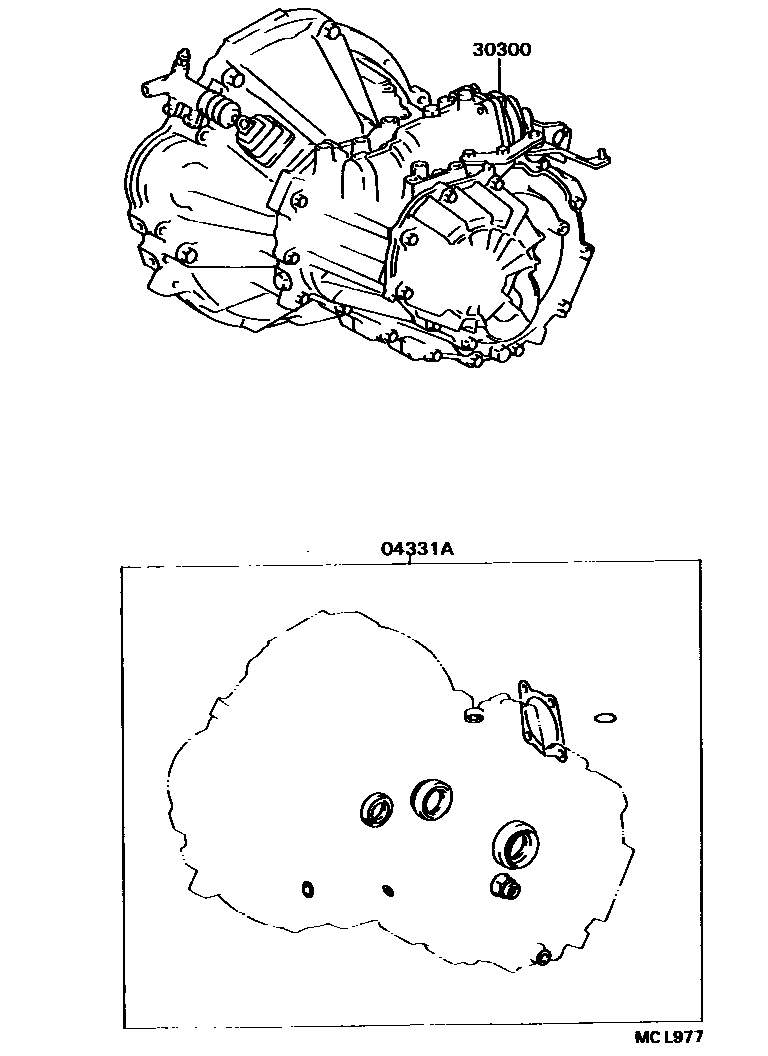

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12110i199205-199710

30300TRANSAXLE ASSY, MANUAL

main30300-12800i199205-199505

main30300-12801i199505-199710

main30300-12840i199205-199405

main30300-12841i199405-199505

main30300-12850i199205-199405

*AXC=-02A

main30300-12851i199405-199505

*AXC=-02A

main30300-12860i199205-199405

main30300-12861i199405-199505

main30300-12862i199505-199710

main30300-12870i199205-199405

*AXC=-02A

main30300-12871i199405-199505

*AXC=-02A

main30300-12872i199505-199710

*AXC=-02A

main30300-1A080i199402-199505

main30300-1A081i199505-199710

main30300-1A090i199205-199505

*AXC=-02A

main30300-1A091i199505-199605

*AXC=-02A

2 parts on this diagram · 1 diagram in section
