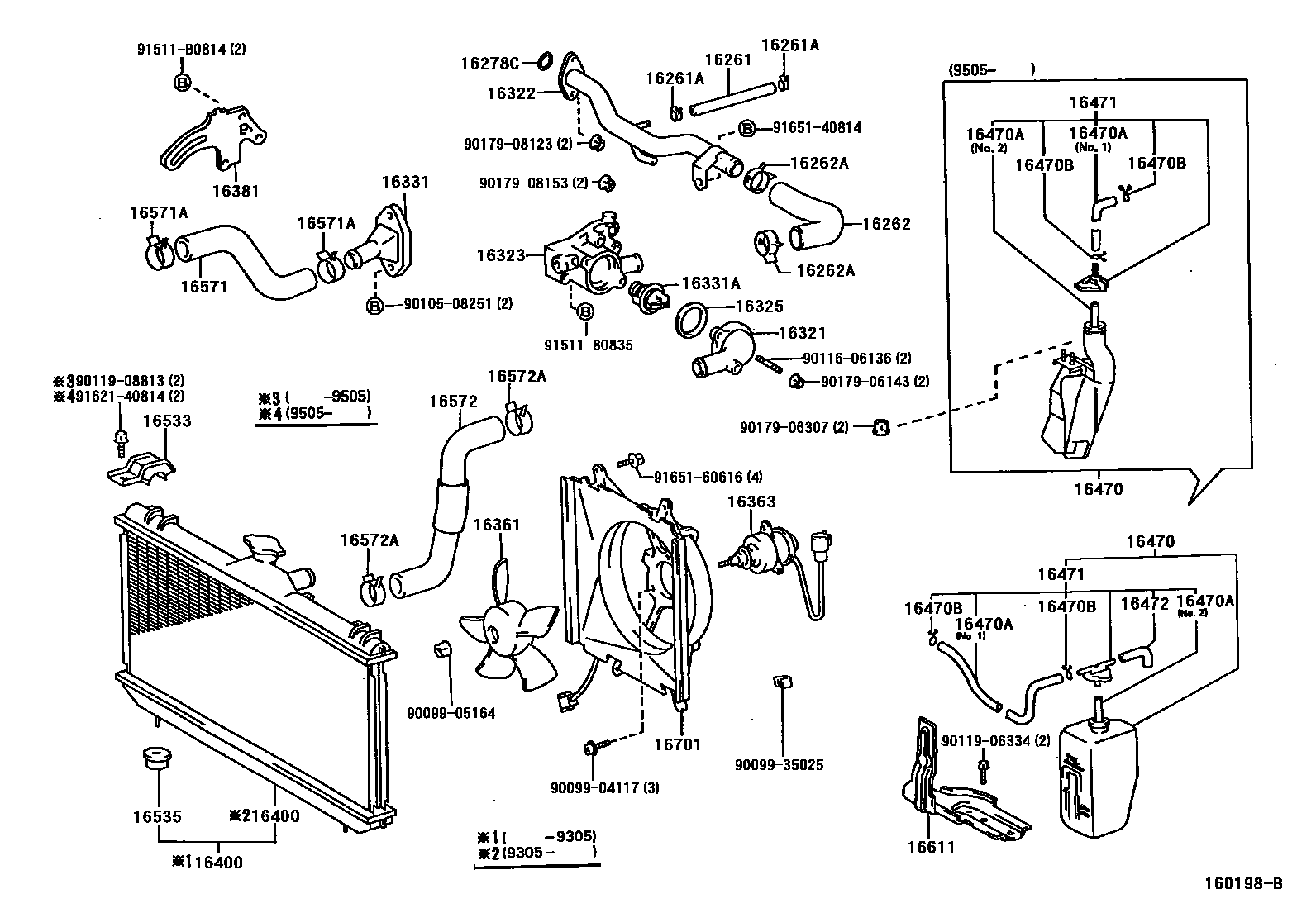

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main99555-10300i4AF..AE101199205

*H,L=220

sub99555-10500

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-41300i4AF..AE101199205

sub96135-51300

16262HOSE, WATER INLET

main16262-10010i2E..EE100..MTM199205-199410

sub16262-10011

main16262-10011i2E..EE100..MTM199410-199710

main16262-10020i2E..EE100..3FC199206-199410

sub16262-10022

main16262-10022i2E..EE100..3FC199410-199505

main16262-15030i4AF..AE101199205

main16262-15040i4AFE,7AFE..AE10#199205-199710

sub16262-16030

main16262-16030i4AFE..AE101..GEN199508-199710

NEW ZEALNAD SPEC

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i2E..EE100199205-199710

sub90467-34004

main90467-36001i4AF..AE101199205

main90467-37002i4AFE,7AFE..AE10#199205-199710

sub90467-37005

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4AF..AE101199205-199502

sub96761-24035

main96761-24035i4AF..AE101199502

16321INLET, WATER

main16321-11011i2E..EE100199205-199710

main16321-15020i4AF..AE101199205

main16321-15040i4AFE,7AFE..AE10#199205-199710

main16321-15040i4AFE..AE101..GEN199508-199710

NEW ZEALNAD SPEC

16322PIPE, WATER INLET

main16322-11081i2E..EE100199205-199710

sub16322-11091

main16322-15041i4AF..AE101199205

main16322-15050i4AFE..AE101199205-199710

main16322-16060i7AFE..AE102199402-199710

16323HOUSING, WATER INLET

main16323-15060i4AF..AE101199205

main16323-15180i4AFE..AE101..GEN199508-199710

NEW ZEALNAD SPEC

main16323-15180i4AFE,7AFE..AE10#..GCC,GEN199205-199710

main16323-16420i4AFE..AE101..GLI199205-199710

SINGAPORE SPEC

sub16323-16410

main16323-16420i7AFE..AE102..ARL199402-199605

sub16323-16410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2E..EE100199205-199301

sub16325-63011

main16325-63011i2E..EE100199301-199710

16331OUTLET, WATER

main16331-15070i4AF..AE101..4FC199205-199505

main16331-15080i4AF..AE101..5F;4AFE,7AFE..AE10#199205

16331ATHERMOSTAT

main90916-03046i4AF#,7AFE..AE10#199205-199710

*WAX 82-95

main90916-03109i4AF..AE101199608-199704

*WAX 82-95

sub90916-03115

main90916-03115i4AFE,7AFE..AE10#199608-199710

*WAX 82-95

16361FAN

main16361-02050i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199301-199707

NIPPONDENSO USA

main16361-02050i4AFE..AE101..4FC..GEN199505-199707

NEW ZEALAND SPEC,NIPPONDENSO USA

main16361-11010i4AF#,7AFE..AE10#..5F..(GL,GLI,SI)..(GCC,GEN)199205-199605

main16361-11020i4AFE..AE101..5F..XLI199205-199710

main16361-11020i4AFE..AE101..4FC..GEN199505-199707

NEW ZEALAND SPEC,NIPPONDENSO JAPAN

main16361-11020i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199301-199707

NIPPONDENSO JAPAN

main16361-11020i4AFE..AE101..5F..XLI199707-199710

NEW ZEALAND SPEC

main16361-63020i4AF#,7AFE..AE10#..4FC199205-199710

sub16361-74070

16363MOTOR, COOLING FAN

main16363-02040i4AFE..AE101..4FC..GEN199505-199710

(L)

main16363-02040i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199505-199710

NEW ZEALNAD SPEC,(L)

main16363-15120i2E..EE100..LB199205-199605

main16363-74020i4AFE..AE101..4FC..GEN199505-199710

NEW ZEALNAD SPEC,(J)

main16363-74020i2E..EE100..HB199205-199710

main16363-74020i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199206-199710

(J)

main16363-74030i4AF#,7AFE..AE10#..4FC199205-199710

16381BAR, FAN BELT ADJUSTING

main16381-11020i2E..EE100199205-199207

sub16381-11021

main16381-11021i2E..EE100199207-199710

main16381-15060i4AF..AE101199205

main16381-15080i4AFE,7AFE..AE10#199205-199710

16400RADIATOR ASSY

main16400-15480i2E..EE100..HB..MTM..GEN199205-199305

*ME

sub16400-15481

sub16535-74010

main16400-15480i4AFE..AE101..5F..XLI199206-199305

sub16400-15481

sub16535-74010

main16400-15481i4AFE,7AFE..AE10#..5F..(ARL,GCC)199305-199704

sub16400-16680

main16400-15481i4AF..AE101..LHD199305-199605

*ME

sub16400-16680

main16400-15500i2E..EE100..3FC199205-199305

sub16400-15501

sub16535-74010

main16400-15501i4AFE,7AFE..AE10#..4FC..GLI199305-199710

sub16400-16690

main16400-15510i4AFE..AE101..4FC..XLI199206-199305

*AXC=-01A

sub16400-15511

sub16535-74010

main16400-15511i4AFE..AE101..4FC..XLI199305-199505

*AXC=-01A

sub16400-16710

main16400-15530i2E..EE100..LB199205-199305

sub16400-15531

sub16535-74010

main16400-15531i4AF#..AE101..LB..5F199305-199505

sub16400-15690

main16400-15550i4AF..AE101..4FC199205-199305

sub16400-15551

sub16535-74010

main16400-15551i4AF..AE101..4FC199305-199505

sub16400-15700

main16400-15680i4AF#..AE101..LB..5F199505-199712

sub16400-16640

main16400-15690i4AFE..AE101..5F..XLI;7AFE..AE102..5F..GEN199505-199710

sub16400-16660

main16400-15700i4AFE..AE101..4FC..GLI199505-199710

sub16400-16670

main16400-16430i4AFE..AE101..4FC..GCC199207-199305

sub16400-16431

sub16535-11030

main16400-16431i4AFE..AE101..4FC..GCC199305-199505

sub16400-16730

main16400-16441i4AFE..AE101..4FC..GCC199505-199704

sub16400-16720

main16400-16500i2E..EE100..GCC199207-199305

sub16400-16501

sub16535-74010

main16400-16501i2E..EE100..GCC199305-199505

sub16400-16710

16470TANK ASSY, RADIATOR RESERVE

main16470-15080i4AF#..AE101199205-199305

sub16470-15081

main16470-15081i2E..EE100199305-199505

main16470-15090i2E..EE100199505-199710

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-15080i2E..EE100199205-199505

NO.1

main16478-15090i2E..EE100199505-199710

NO.1

main90445-12078i2E..EE100199205-199505

L=600(*H,L=170),NO.2

main90445-12078i2E..EE100199505-199710

NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2E..EE100199205-199710

16471CAP SUB-ASSY, RESERVE TANK

main16405-15090i4AF#..AE101199205-199305

sub16405-15091

main16405-15091i2E..EE100199305-199505

main16405-15100i2E..EE100199505-199710

16472HOSE, BREATHER

main16477-15080i2E..EE100199205-199505

16533SUPPORT, RADIATOR, UPPER

main16533-02020i7AFE..AE102..ARL199305-199605

W(*66),(L),RH

main16533-02020i4AF#,7AFE..AE10#199301-199710

(L)

main16533-02020i7AFE..AE102..GEN199510-199710

(L),RH

main16533-15120i7AFE..AE102..ARL199305-199605

W(*66),(J),RH

main16533-15120i2E..EE100199205-199710

(J)

main16533-15120i7AFE..AE102..GEN199510-199710

(J),RH

main16533-15130i7AFE..AE102..ARL199305-199605

W(*66),LH

main16533-15130i7AFE..AE102..GEN199510-199710

LH

16535SUPPORT, RADIATOR, LOWER

main16535-11030i4AFE..AE101..4FC..GCC199207-199505

main16535-15050i4AFE..AE101..GLI199205-199301

TOYOTA GOUSEI

sub16535-74010

main16535-74010i4AFE..AE101..5F..GLI199206-199301

TOYOTA GOUSEI

sub90916-04002

main16535-74010i4AFE..AE101..GLI;4AFE..AE101..5F..XLI199205-199301

MARUYASU

sub90916-04002

main16535-74010i2E..EE100..LB;2E..EE100..3FC;2E..EE100..GCC199205-199505

sub90916-04002

main90916-04002i2E..EE100199505-199710

TYPE A:REFER TO ILLUSTRATION

main90916-04002i4AFE..AE101..5F..GCC;4AF#,7AFE..AE10#..ARL,GEN199505

MARUYASU

main90916-04003i2E..EE100199505-199710

TYPE B:REFER TO ILLUSTRATION

main90916-04003i4AFE..AE101..5F..GCC;4AF#,7AFE..AE10#..ARL,GEN199505

TOYOTA GOUSEI

main90916-04005i4AFE..AE101..4FC..GCC199505-199704

16571HOSE, RADIATOR, INLET

main16571-02030i4AF#..AE101199505-199707

(L)

main16571-02040i4AF#..AE101199301-199707

main16571-02050i7AFE..AE102199505-199707

(L)

main16571-02060i7AFE..AE102199402-199707

main16571-11130i2E..EE100..MTM199205-199710

main16571-11140i2E..EE100..3FC199206-199505

main16571-15160i4AFE..AE101199707

main16571-15160i4AF#..AE101199205-199707

(J)

main16571-16180i7AFE..AE102199402-199707

(J)

main16571-16180i7AFE..AE102199707-199710

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i2E..EE100199205-199710

ENGINE SIDE

main90467-34003i4AF#,7AFE..AE10#199205

sub90467-34004

main90467-34003i2E..EE100199205-199710

RADIATOR SIDE

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-02030i4AFE..AE101199301-199707

(L)

main16572-02050i7AFE..AE102199402-199707

(L)

main16572-11220i2E..EE100..MTM199205-199710

main16572-11230i2E..EE100..3FC199206-199505

sub16572-11231

main16572-15210i4AFE..AE101199707-199710

main16572-15210i4AFE..AE101199205-199707

(J)

main16572-16150i7AFE..AE102199402-199707

(J)

main16572-16150i7AFE..AE102199707-199710

main16572-16160i4AF..AE101199205

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i2E..EE100199205-199710

ENGINE SIDE

main90467-34003i2E..EE100199205-199710

RADIATOR SIDE

sub90467-34004

main90467-34003i4AF#,7AFE..AE10#199205

sub90467-34004

16611BRACKET, RADIATOR RESERVE TANK

main16611-15020i4AF#,7AFE..AE10#199205-199505

16701SHROUD SUB-ASSY, FAN

main16711-02050i4AFE..AE101..5F..XLI199301-199308

NIPPONDENSO USA

sub16711-02051

main16711-02051i4AFE..AE101..4FC..GEN199505-199707

NEW ZEALAND SPEC,NIPPONDENSO USA

main16711-02051i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199308-199707

NIPPONDENSO USA

main16711-15260i4AF#..AE101..5F..(GL,GLI,SI)199205-199308

sub16711-15261

main16711-15261i4AF#,7AFE..AE10#..5F..(GL,GLI,SI)..(GCC,GEN)199308

main16711-15270i4AFE..AE101..5F..XLI199301-199308

NIPPONDENSO JAPAN

sub16711-15271

main16711-15270i4AFE..AE101..5F..XLI199206-199301

sub16711-15271

main16711-15271i4AFE..AE101..5F..XLI;7AFE..AE102..5F..ARL199308-199707

NIPPONDENSO JAPAN

main16711-15271i4AFE..AE101..4FC199707-199710

NEW ZEALAND SPEC

main16711-15271i4AFE..AE101..4FC..GEN199505-199707

NEW ZEALAND SPEC,NIPPONDENSO JAPAN

main16711-15280i4AF#..AE101..4FC199205-199307

sub16711-15281

main16711-15281i4AF#,7AFE..AE10#..4FC199307-199710

main16711-16220i2E..EE100..LB199205-199308

sub16711-16221

main16711-16221i2E..EE100..LB199308-199605

main16711-16230i2E..EE100..HB199205-199308

sub16711-16231

main16711-16231i2E..EE100..HB199308-199710

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9010508251

main90105-08251

9011606136

main90116-06136

9011906334

main90119-06334

9011908813

main90119-08813

9017906143

main90179-06143

9017906307

main90179-06307

9017908123

main90179-08123

9017908153

main90179-08153

9151180835

main91511-80835

91511B0814

main91511-B0814

9162140814

main91621-40814

9165140814

main91651-40814

9165160616

main91651-60616

44 parts on this diagram · 5 diagrams in section
