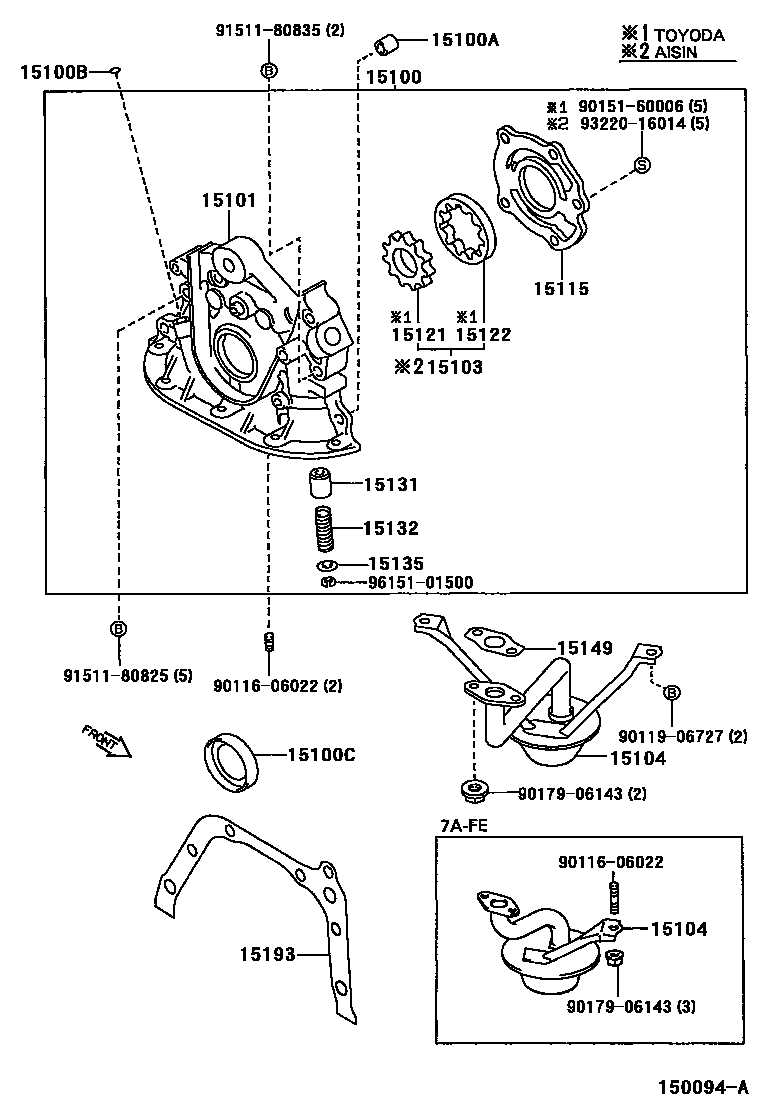

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-11050i2E..EE100199205-199407

main15100-11051i2E..EE100199407-199710

main15100-15040i4AF..AE101199408

main15100-15050i4AF..AE101199205-199408

main15100-15060i4AFE..AE101199205-199710

main15100-16040i7AFE..AE102199402-199710

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i2E..EE100199205-199710

main90253-11021×2i4AF#,7AFE..AE10#199205

15100BRING, O(FOR OIL PUMP)

main90301-55005i2E..EE100199205-199710

main96721-19010i4AF#,7AFE..AE10#199205

15100CSEAL(FOR OIL PUMP)

main90029-21007i2E..EE100199205-199207

main90029-21020i2E..EE100199207-199710

main90311-32018i4AF#,7AFE..AE10#199205-199702

main90311-32020i4AF#,7AFE..AE10#199702

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AF..AE101199205-199510

AISIN SEIKI

main15011-15060i4AFE..AE101199205-199710

AISIN SEIKI

main15011-16040i7AFE..AE102199402-199710

AISIN SEIKI

main15101-15040i4AF..AE101199205-199510

TOYODA KOUKI

main15101-15070i4AFE..AE101199205-199710

TOYODA KOUKI

main15101-16050i7AFE..AE102199402-199710

TOYODA KOUKI

15103GEAR SET, OIL PUMP

main15103-15020i4AF#..AE101199205-199510

main15103-16040i7AFE..AE102199402

15104STRAINER SUB-ASSY, OIL

main15104-11040i2E..EE100199205-199211

main15104-11041i2E..EE100199211-199505

main15104-11180i2E..EE100..GEN199505-199508

main15104-15090i4AF#..AE101199205

main15104-16040i7AFE..AE102199402-199408

main15104-16060i7AFE..AE102199408-199710

15115COVER, OIL PUMP

main15115-15020i4AFE,7AFE..AE10#199510-199710

AISIN SEIKI

main15115-15030i4AF#..AE101199205-199211

TOYODA KOUKI

main15115-16060i4AFE,7AFE..AE10#199510-199710

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AF#..AE101199205

main15121-16050i7AFE..AE102199402-199710

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AF#..AE101199205

main15122-16050i7AFE..AE102199402-199710

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AF..AE101199510

main15131-24010i4AF#,7AFE..AE10#199205-199510

AISIN SEIKI

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE,7AFE..AE10#199510-199710

TOYODA KOUKI

main15132-40010i4AFE,7AFE..AE10#199510-199710

AISIN SEIKI

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AF#,7AFE..AE10#199205-199510

AISIN SEIKI

main15135-15030i4AF#,7AFE..AE10#199205-199510

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-16010i4AF#,7AFE..AE10#199205

15193GASKET, OIL PUMP

main15197-15012i4AF#..AE101199205-199408

main15197-15030i4AF#..AE101199408

main15197-16010i7AFE..AE102199402-199710

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 2 diagrams in section
