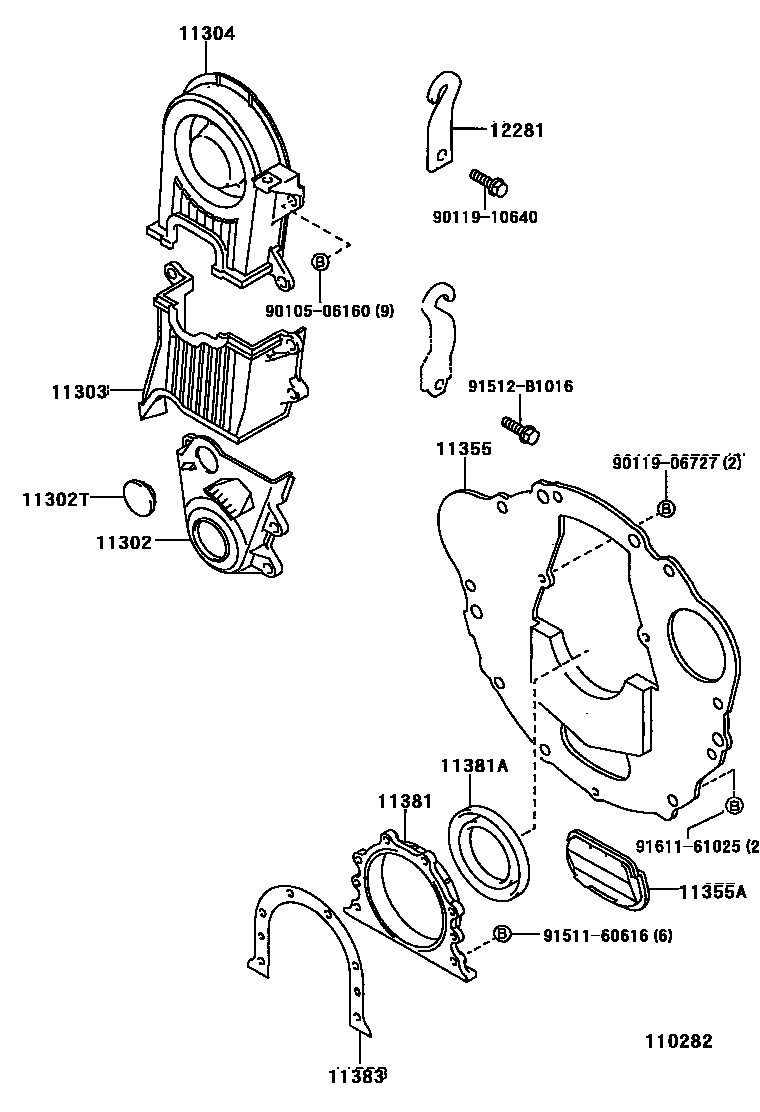

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15041i4AF..AE101199205

main11302-15050i4AFE,7AFE..AE10#199205-199710

11302TPLUG, HOLE

main90950-01391i4AF..AE101199205

main90950-01783i4AFE,7AFE..AE10#199205-199710

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF..AE101199205

main11303-15050i4AFE..AE101199205-199710

main11303-16050i7AFE..AE102199402-199710

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF..AE101199205

main11304-15030i4AFE..AE101199205-199710

main11304-16060i7AFE..AE102199402-199710

11355PLATE, REAR END

main11355-10011i2E..EE100..MTM199205-199611

sub11355-10012

main11355-10012i2E..EE100199611-199710

main11355-11011i2E..EE100..3FC199206-199505

sub11355-11012

main11355-15070i4AF#,7AFE..AE10#..5F199205

main11355-15080i4AF#,7AFE..AE10#..4FC199205-199710

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AF#,7AFE..AE10#..4FC199205

main90950-01548i2E..EE100..3FC199206-199505

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E..EE100199205-199407

main11381-10021i2E..EE100199407-199710

main11381-15010i4AF#,7AFE..AE10#199205

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AF#,7AFE..AE10#199205

main90311-75009i2E..EE100199205-199710

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AF#,7AFE..AE10#199205

12281HANGER, ENGINE, NO.1

main12281-15050i4AF#,7AFE..AE10#199309

9010506160

main90105-06160

9011906727

main90119-06727

9011910640

main90119-10640

9151160616

main91511-60616

91512B1016

main91512-B1016

9161161025

main91611-61025

16 parts on this diagram · 3 diagrams in section
