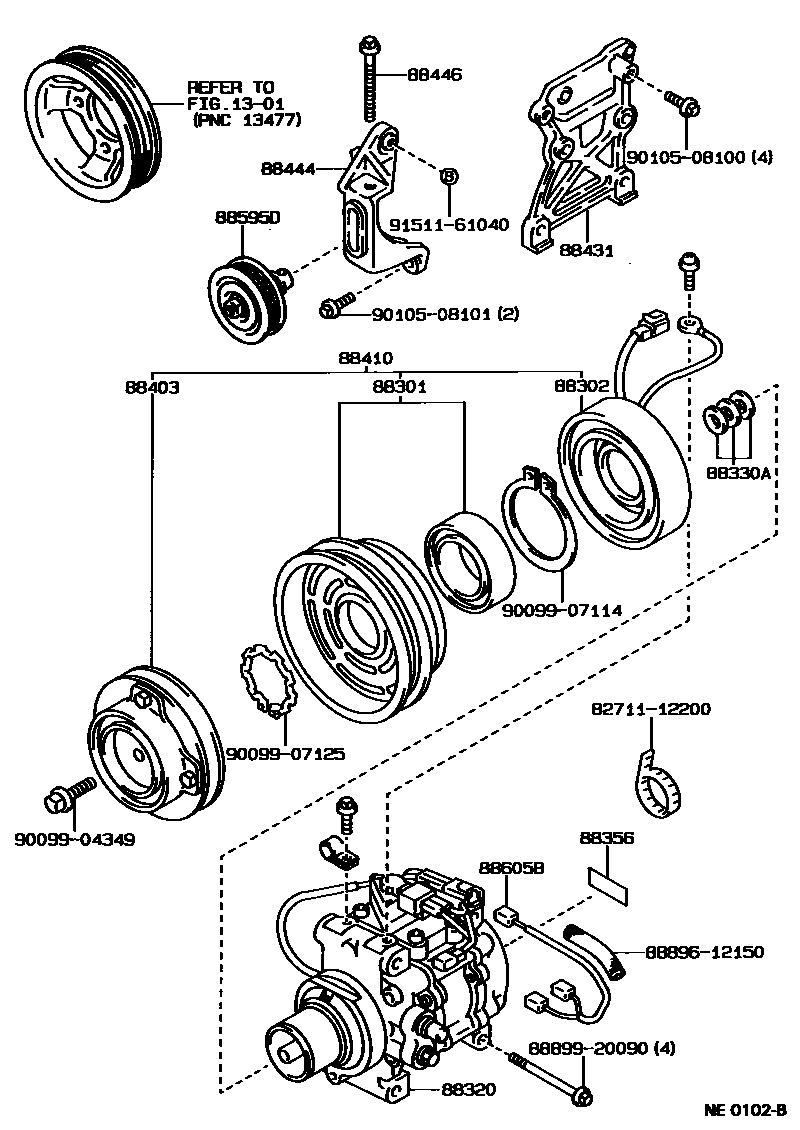

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iAE92..XL..GEN198712-198908

main88412-12190iAE92..XL198712-198803

LOW PULLEY

main88412-16030iEE90..GCC;AE92..GT,GTI; EE90..LHD..GEN; EE90..RHD..GEN198712-198908

main88412-16050iEE90..GEN198712-198908

LOW PULLEY

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12141iAE92..LHD..GEN; AE92..RHD..XL..GEN198908-199106

LOW PULLEY

main88411-16020iAE92..GTI;EE90..RHD; EE90..LHD198705-198709

W(POWER STEERING)

main88411-16021iAE92..GTI;EE90..RHD; EE90..LHD198705-198709

main88411-35020iAE92..GCC; AE92..XL..GEN198908-199109

main88411-60030iAE92..GTI198908-199205

88320COMPRESSOR ASSY, COOLER

main88320-12520iAE92..(STD,XL)..SA198908-199308

main88320-12530iAE92..GTI;EE90..GCC; EE90..GEN198712-198908

W(POWER STEERING)

main88320-12540iAE92..GTI;EE90..RHD; EE90..LHD198705-198708

main88320-12720iAE92..XL..GEN198908-199110

LOW PULLEY

main88320-12740iAE92..GT198810-199308

main88320-12810iAE92..GTI198908-199205

W(POWER STEERING),DEALER OPTION

main88320-12820iAE92..GTI198908-199205

DEALER OPTION

main88320-12830iAE92..GTI198908-199205

W(POWER STEERING)

main88320-12840iAE92..GTI198908-199205

main88320-12850iEE90..GEN198908-198909

main88320-12860iEE90..LHD..GEN; EE90..RHD..GEN198908-199206

W(POWER STEERING)

main88320-12880iAE92..GCC198908-199207

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAE92,EE90198705-198908

88356LABEL, COMPRESSOR CAUTION

main88356-12010iAE92;EE90..GCC,GEN198705-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16010iAE92..GTI;EE90..RHD..GEN; EE90..LHD198705-198810

main88403-16011iEE90..SA;AE92..2D,5D198705-198810

88410CLUTCH ASSY, MAGNET

main88410-10210iEE90..GCC,GEN198908-199207

main88410-12230iAE92..GTI198705-198708

W(POWER STEERING)

main88410-12240iAE92..XL198705-198712

main88410-12270iAE92..XL..GEN198803-198908

LOW PULLEY,DEALER OPTION

main88410-12300iAE92..GTI198908-199205

main88410-12320iAE92..XL..GEN198908-199106

DEALER OPTION

main88410-12330iAE92..XL..GEN198908-199110

LOW PULLEY

main88410-12420iAE92..XL..GEN198908-199110

main88410-16021iAE92..GTI; EE90198705-198708

main88410-16050iEE90..GEN198712-198908

LOW PULLEY

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE90198705-199308

main88431-12380iAE92..SR5,STD,XL199110-199308

main88431-12390iAE92..GT198808-199308

W(POWER STEERING)

main88431-12410iAE92..GTI198705-198712

88444BRACKET, IDLE PULLEY

main88444-10031iEE90..GCC,GEN198705-198810

88446BOLT, IDLE PULLEY

main88446-12030iAE92..STD,XL;EE90..GCC,GEN198705-198810

main88446-35010iAE92..GT,GTI198705-199308

88595DPULLEY ASSY, IDLE

main88440-12170iEE90..GCC,GEN198908-199207

main88440-17010iAE92..SR5,STD,XL198705-199110

main88440-32030iAE92..GT,GTI198705-199308

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1A720iAE92..GT;EE90..GEN198908-199308

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889612150PLATE, COOLER AIR OUTLET GRILLE ORNAMENT

main88896-12150

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

22 parts on this diagram · 5 diagrams in section
