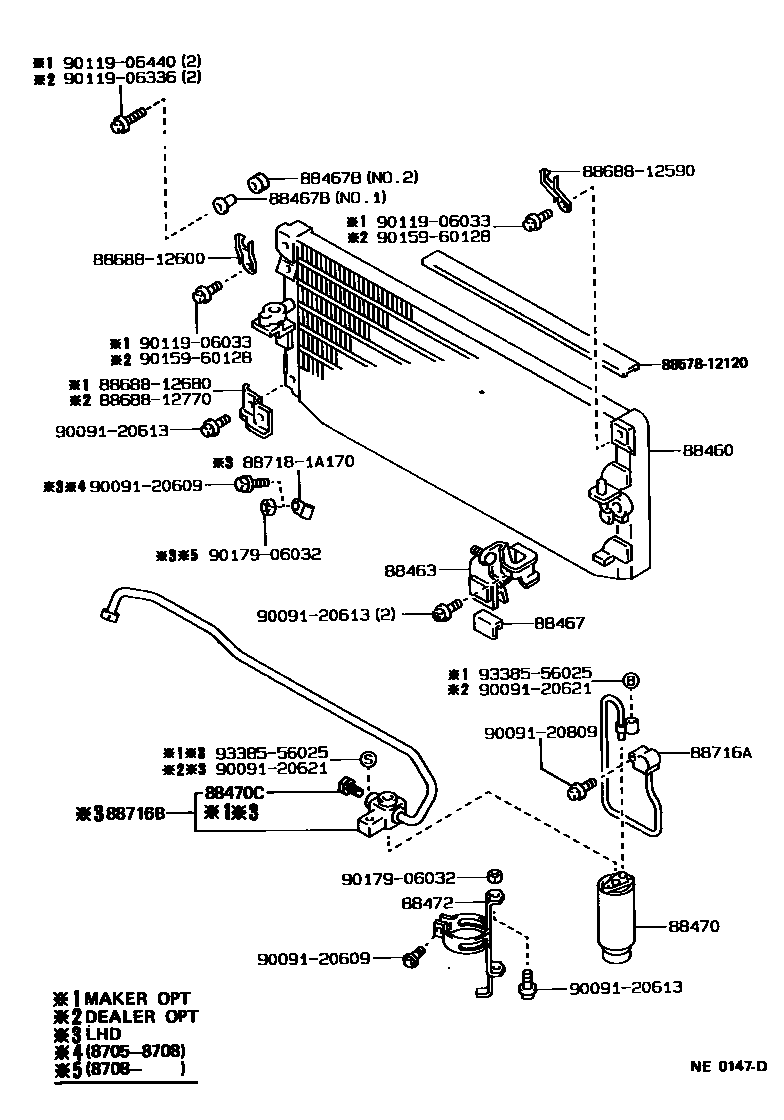

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1MAKER OPT 0004 1DEALER OPT 0005 1MAKER OPT 0006 1DEALER OPT 0007 1MAKER OPT 0008 1DEALER OPT 0009 1MAKER OPT 0010 1DEALER OPT 0011 1MAKER OPT 0012 1DEALER OPT 0013 1MAKER OPT 0014 1DEALER OPT

88460CONDENSER ASSY, COOLER

main88460-12370iAE92,EE90198705-198810

main88460-12400iAE92..LHD..GTI198810-198908

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12040iAE92,EE90198705-198801

main88463-12041iAE92..LHD..GTI; EE90..3FC..GCC; EE90..4F..GCC;AE92..RHD..GTI198810-198811

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12080×2iAE92,EE90198705-198801

main88467-12081×2iAE92..XL; EE90..LHD..GEN; EE90..RHD198801-198803

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070×2iAE92,EE90; AE92,EE90..GCC,GEN198705-198908

NO.1

main88467-20040×4iAE92,EE90; AE92,EE90..GCC,GEN; AE92..GTI198705-198908

N0.2; NO.2

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE92,EE90198705-198812

L=167

main88471-16040iAE92,EE90..SA; AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN)198812-198908

L=187

88470CBOLT, FUSE

main88475-12020iAE92,EE90198705-199009

88472BRACKET, RECEIVER TANK, NO.1

main88473-12040iAE92..LHD..GTI; AE92..XL..GEN; EE90..3FC..GCC; EE90..4F..GCC;AE92..RHD..GTI; EE90..GEN198811-198908

main88473-12070iAE92,EE90..SA; AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN)198811-198908

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12240iAE92,EE90198705-198812

main88726-12340iAE92,EE90..SA; AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN)198812-198908

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-12250iAE92,EE90..LHD198705-198709

main88726-12251iAE92,EE90..LHD198709-198712

main88726-12280iAE92,EE90..RHD198705-199308

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812680BRACKET, COOLER DIAPHRAGM

main88688-12680

8868812770BRACKET, COOLER DIAPHRAGM

main88688-12770

887181A170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A170

9009120609

main90091-20609

9009120613

main90091-20613

9009120621

main90091-20621

9009120809

main90091-20809

9011906033

main90119-06033

9011906336

main90119-06336

9011906440

main90119-06440

9015960128

main90159-60128

9017906032

main90179-06032

9338556025

main93385-56025

25 parts on this diagram · 14 diagrams in section
