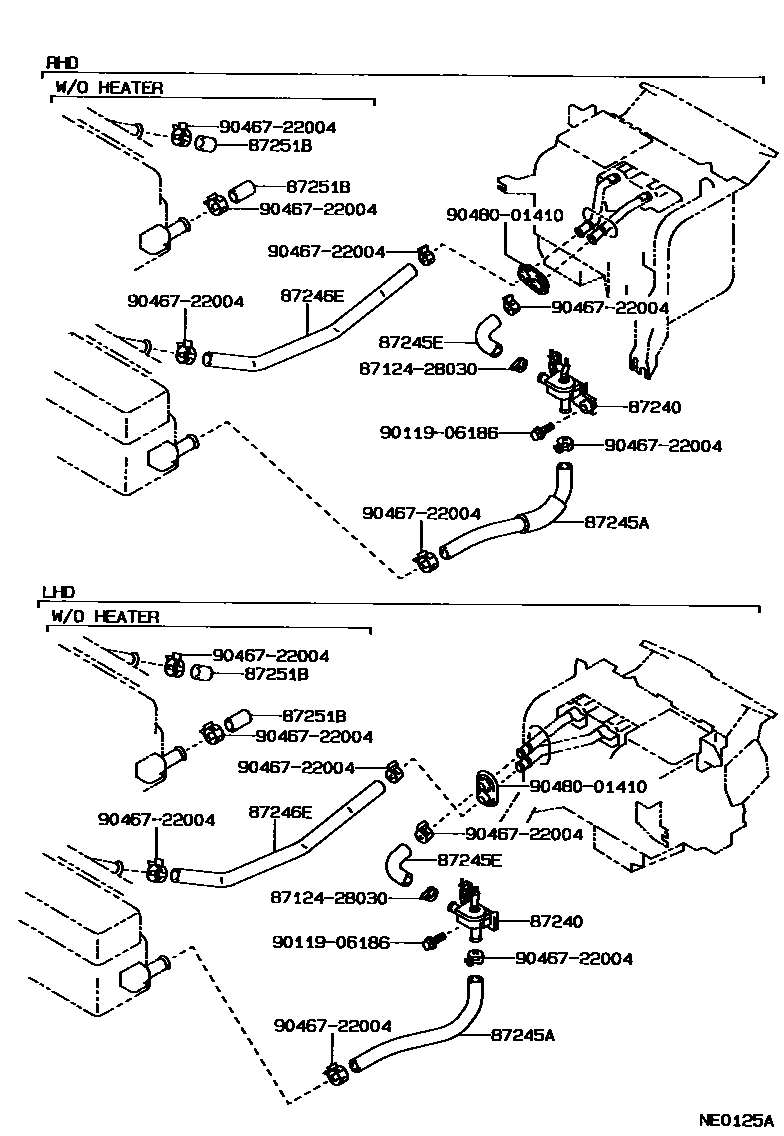

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-12230iAE92,EE90..RHD198705-199308

main87240-12240iAE92,EE90..LHD198705-199207

87245AHOSE, HEATER WATER, INLET A

main87245-12840iAE92,EE90..RHD..(GL,STD,XL)198705-198905

main87245-12841iAE92,EE90..RHD..(GL,STD,XL)198905-199308

main87245-1A160iEE90..LHD198908-199207

main87245-1A180iAE92..RHD..(GT,GTI)198705-199308

main87245-1A230iAE92..LHD..GTI198705-198908

main87245-1A390iAE92..LHD..GEN198908-199106

87245EHOSE, HEATER WATER, INLET E

main87245-1A300iAE92,EE90..RHD..(3D,5D)..GEN198908-199206

main87245-1A310iAE92,EE90..LHD198705-198908

main87245-1A380iAE92,EE90..LHD198908-199207

87246EHOSE, HEATER WATER, OUTLET E

main87245-1A210iEE90..RHD198705-198905

main87245-1A211iEE90..RHD198905-199308

main87245-1A240iAE92..RHD..(STD,XL)198705-198905

main87245-1A241iAE92..RHD..(STD,XL)198905-198908

main87245-1A242iAE92..STD,XL199106-199308

main87245-1A260iAE92..RHD..(GT,GTI)198705-199308

main87245-1A270iAE92,EE90..LHD..(GL,STD,XL)198705-198908

main87245-1A271iEE90..LHD198908-199112

main87245-1A272iEE90..LHD199112-199207

main87245-1A290iAE92..LHD..GTI198705-198708

main87245-1A330iAE92..LHD198908-199106

main87245-1A331iAE92..GCC199106-199207

main87245-1A400iAE92..LHD..GTI198708-198908

87251BPLUG, HEATER WATER

main90339-16001×2iAE92,EE90..(3D,5D)..(GCC,GEN)198811-199207

main90339-16007×2iAE92,EE90..3D,5D198705-198811

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186

9046722004

main90467-22004

9048001410

main90480-01410

9 parts on this diagram · 3 diagrams in section
