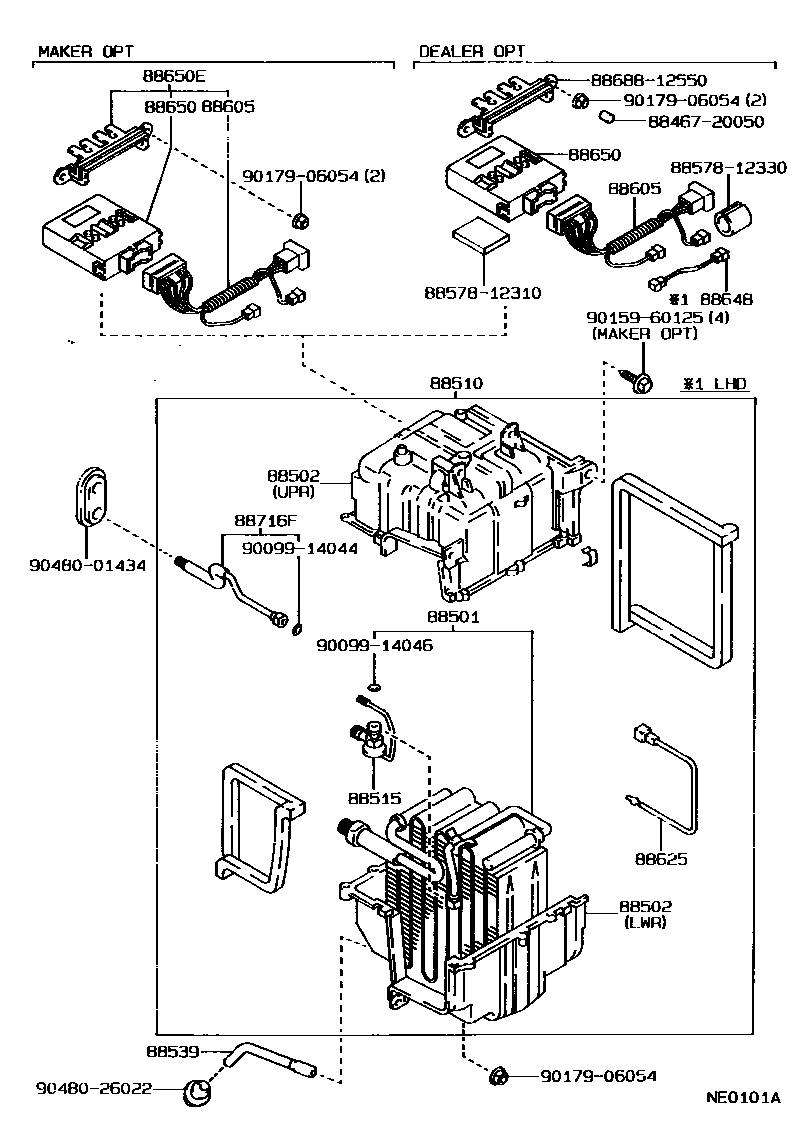

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12330iAE92,EE90..RHD198705-199308

main88501-12340iAE92,EE90..LHD..GEN199009-199106

88502CASE SUB-ASSY, COOLING UNIT

main88502-12100iAE92,EE90..LHD..GEN198908-199206

UPR

main88502-12110iAE92,EE90..LHD..GEN198908-199206

LWR

main88502-12140iAE92..RHD; EE90..RHD198705-198708

UPR

main88502-12150iEE90..RHD198705-198708

UPR,W(POWER STEERING)

88510UNIT ASSY, COOLER

main88510-12750iAE92,EE90..RHD..GEN198705-199009

main88510-12760iAE92,EE90..LHD198705-198908

main88510-12780iAE92..RHD..GTI; EE90..RHD..GEN198712-199009

main88510-12790iAE92..LHD..GTI; AE92..LHD..XL;EE90..LHD..GL; EE90..LHD..(STD,XL)198705-198708

DEALER OPT

88515VALVE, COOLER EXPANSION

main88515-16040iAE92,EE90199106-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12090iAE92,EE90..RHD198705-199308

main88539-12100iAE92,EE90..LHD198705-199009

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1A270iEE90..GCC198712-198807

main88605-1A280iEE90..GCC; EE90..GEN198712-198810

W/O(HEATER)

main88605-1A290iEE90..LHD198705-198712

W(POWER STEERING)

main88605-1A291iEE90..3FC..GCC; EE90..LHD..GEN198908-198911

W(POWER STEERING)

main88605-1A292iEE90..3FC..GCC198911-199008

W(POWER STEERING)

main88605-1A300iEE90..GCC; EE90..GEN198712-198908

W(POWER STEERING); W(POWER STEERING) & W/O(HEATER)

main88605-1A310iAE92..LHD..GTI198705-198908

main88605-1A320iAE92..GTI198705-199205

W/O(HEATER)

main88605-1A330iAE92..LHD..GTI198705-198908

W(POWER STEERING)

main88605-1A340iAE92..GTI198705-199205

W(POWER STEERING) & W/O(HEATER)

main88605-1A410iAE92..GT,GTI198908-199308

main88605-1A420iAE92..RHD..GTI198705-198908

W(POWER STEERING)

main88605-1A680iEE90..RHD..GEN199106-199206

main88605-1A740iEE90..RHD198705-198712

W(POWER STEERING)

main88605-1E170iAE92,EE90..LHD..(GL,STD,XL)..GEN; EE90..GCC198807-198908

main88605-1E171iAE92,EE90..(3FC,5F)..GCC; AE92..LHD..GEN; EE90..LHD..GEN198908-198911

main88605-1E172iAE92..GCC;EE90..3FC..GCC; AE92..LHD..GEN; EE90..LHD..GEN198911-199009

main88605-1E190iEE90..GCC; EE90..LHD..GEN198810-198908

W/O(HEATER)

main88605-1E191iAE92,EE90..(3FC,5F)..GCC; EE90..LHD..GEN198908-198911

W/O(HEATER)

main88605-1E192iAE92..GCC;EE90..3FC..GCC198911-199009

W/O(HEATER)

main88605-1E310iEE90..4F..GCC198908-198911

main88605-1E311iEE90..MTM..GCC198911-199207

main88605-1E320iEE90..4F..GCC198908-198911

W/O(HEATER)

main88605-1E321iEE90..MTM..GCC198911-199207

W/O(HEATER)

main88605-1E330iEE90..4F..GCC198908-198911

W(POWER STEERING)

main88605-1E331iEE90..MTM..GCC198911-199207

W(POWER STEERING)

main88605-1E340iEE90..4F..GCC198908-198911

W(POWER STEERING) & W/O(HEATER)

main88605-1E341iEE90..MTM..GCC198911-199207

W(POWER STEERING) & W/O(HEATER)

main88605-1E350iEE90..3FC..GCC; EE90..LHD..GEN198908-198911

W(POWER STEERING) & W/O(HEATER)

main88605-1E351iEE90..LHD..GEN198911-199206

W(POWER STEERING) & W/O(HEATER)

main88605-1E400iEE90..GCC; EE90..LHD..GEN198905-198908

W(POWER STEERING)

88625THERMISTOR, COOLER, NO.1

main88625-12230iAE92,EE90..GCC,SA199106-199308

88648WIRING, COOLER, NO.1

main88648-12340iAE92,EE90..LHD..GEN198908-199206

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12610iEE90..LHD..GEN198712-198908

W(POWER STEERING)

main88650-12620iEE90..RHD..GEN198712-199206

main88650-12630iAE92..GT198808-199308

main88650-12631iAE92..GTI198908-199205

main88650-12640iAE92..RHD..GTI198705-198908

W(POWER STEERING)

main88650-12641iAE92..GTI198908-199205

W(POWER STEERING)

main88650-12670iEE90..GCC198712-198810

main88650-12680iEE90..LHD..GEN; EE90..RHD..GEN198712-198905

W(POWER STEERING); W(POWER STEERING) & W/O(HEATER)

main88650-12690iAE92..LHD..GTI; AE92..RHD..GTI198705-198908

W/O(HEATER)

main88650-12691iAE92..GTI198908-199205

W/O(HEATER)

main88650-12700iAE92..LHD..GTI; AE92..RHD..GTI198705-198908

W(POWER STEERING); W(POWER STEERING) & W/O(HEATER)

main88650-12730iEE90..3FC..GCC198810-198908

main88650-12740iEE90..3FC..GCC198810-198905

W(POWER STEERING)

main88650-1A110iEE90..3FC..GCC198810-198908

W/O(HEATER)

main88650-1A240iEE90..LHD..GEN199001-199206

main88650-1A320iAE92..GTI198908-199205

W(POWER STEERING) & W/O(HEATER)

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-12460iEE90..LHD198705-198712

main88650-12461iAE92..LHD..XL; EE90..GCC; EE90..LHD..GEN198807-198908

main88650-12462iAE92,EE90..(3FC,5F)..GCC; AE92..LHD..GEN; EE90..LHD..GEN198908-198911

main88650-12463iAE92..GCC;EE90..3FC..GCC; AE92..LHD..GEN; EE90..LHD..GEN198911-199009

main88650-12470iEE90..GCC; EE90..LHD..GEN198712-198810

W/O(HEATER)

main88650-12471iEE90..GCC; EE90..LHD..GEN198810-198908

W/O(HEATER)

main88650-12472iAE92,EE90..(3FC,5F)..GCC; EE90..LHD..GEN198908-198911

W/O(HEATER)

main88650-12473iAE92..GCC199106-199207

W/O(HEATER)

main88650-12480iEE90..GCC; EE90..LHD..GEN198712-198905

W(POWER STEERING)

main88650-12481iEE90..3FC..GCC; EE90..LHD..GEN198908-198911

W(POWER STEERING)

main88650-12482iEE90..3FC..GCC198911-199008

W(POWER STEERING)

main88650-12490iEE90..GCC; EE90..LHD..GEN198712-198908

W(POWER STEERING) & W/O(HEATER)

main88650-12491iEE90..3FC..GCC; EE90..LHD..GEN198908-198911

W(POWER STEERING) & W/O(HEATER)

main88650-12492iEE90..LHD..GEN198911-199206

W(POWER STEERING) & W/O(HEATER)

main88650-12500iAE92..LHD..GTI198705-198908

main88650-12510iAE92..LHD..GTI198705-198908

W/O(HEATER)

main88650-12520iAE92..LHD..GTI198705-198908

W(POWER STEERING)

main88650-12530iAE92..LHD..GTI198705-198908

W(POWER STEERING) & W/O(HEATER)

main88650-12810iAE92,EE90..(STD,XL)..SA199009-199308

main88650-12820iEE90..RHD198705-198712

W/O(HEATER)

main88650-12830iEE90..RHD..GEN198712-199206

W(POWER STEERING)

main88650-12840iEE90..RHD198705-198712

W(POWER STEERING) & W/O(HEATER)

main88650-12850iAE92..RHD..(GT,GTI)198705-199308

main88650-12860iAE92..RHD..GTI198705-199205

W/O(HEATER)

main88650-12870iAE92..RHD..(GT,GTI)198705-199308

W(POWER STEERING)

main88650-12880iAE92..RHD..GTI198705-199205

W(POWER STEERING) & W/O(HEATER)

main88650-1A180iEE90..4F..GCC198908-198911

main88650-1A181iEE90..MTM..GCC198911-199207

main88650-1A190iEE90..4F..GCC198908-198911

W/O(HEATER)

main88650-1A191iEE90..MTM..GCC198911-199207

W/O(HEATER)

main88650-1A200iEE90..4F..GCC198908-198911

W(POWER STEERING)

main88650-1A201iEE90..MTM..GCC198911-199207

W(POWER STEERING)

main88650-1A210iEE90..4F..GCC198908-198911

W(POWER STEERING) & W/O(HEATER)

main88650-1A211iEE90..MTM..GCC198911-199207

W(POWER STEERING) & W/O(HEATER)

main88650-1A290iEE90..GCC; EE90..LHD..GEN198905-198908

W(POWER STEERING)

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12300iAE92,EE90..RHD198705-199308

main88726-12310iAE92,EE90..LHD..GEN199009-199106

8846720050CUSHION, COOLER CONDENSER, NO.1

main88467-20050

8857812310PAKING, COOLER AIR DUCT

main88578-12310

8857812330PAKING, COOLER AIR DUCT

main88578-12330

8868812550BRACKET, COOLER DIAPHRAGM

main88688-12550

9009914044

main90099-14044

9009914046

main90099-14046

9015960125

main90159-60125

9017906054

main90179-06054

9048001434

main90480-01434

9048026022

main90480-26022

21 parts on this diagram · 1 diagram in section
