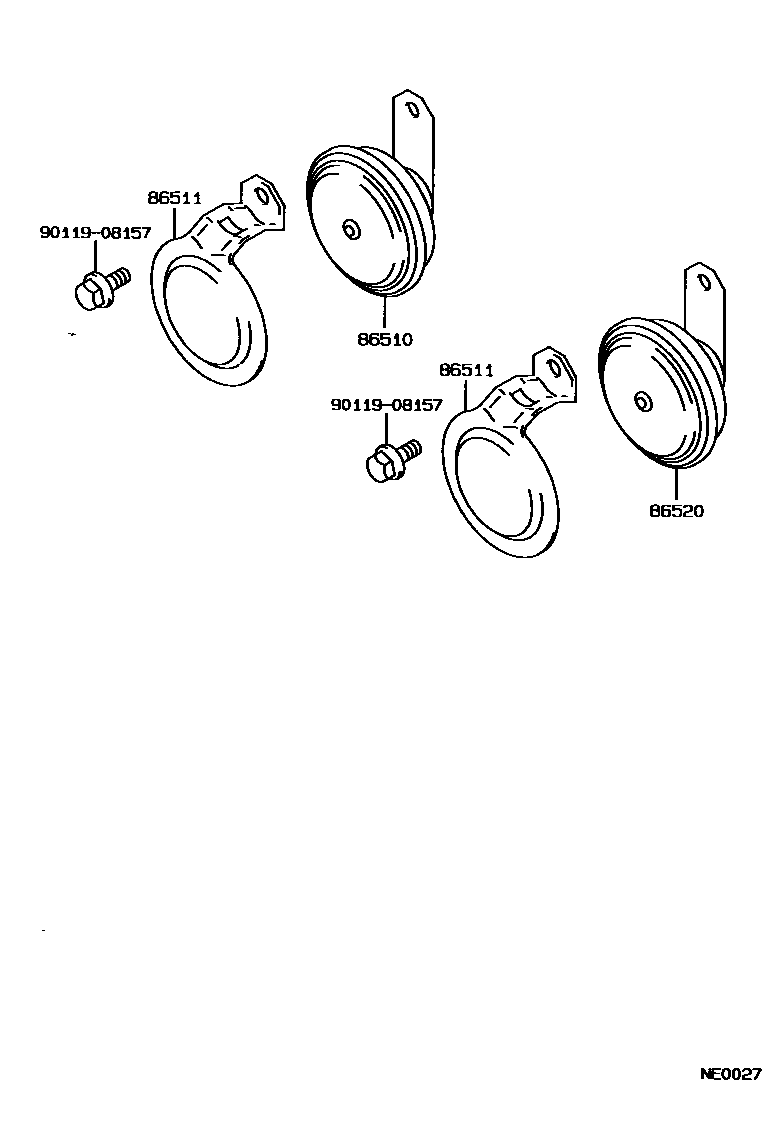

HORN

86510HORN ASSY, HIGH PITCHED

main86510-12270iAE92,EE90..GCC,GEN198705-198908

MARUKO

main86510-12280iAE92,EE90..GEN198908-199108

NIPPONDENSO

main86510-12440iAE92..GT198808-199308

NIPPONDENSO

main86510-12450iEE90..GCC;AE92..XL..GEN;EE90..RHD..STD..GEN; EE90..LHD..STD;AE92,EE90..(3D,5D)..(3FC,5F)..GEN198705-198908

W(MW/SW RADIO)

main86510-12470iAE92..GT198808-199308

MARUKO

main86510-12480iEE90..LHD..GEN198705-199206

CHINA SPEC

86511COVER, HIGH PITCHED HORN

main86511-12550×2iEE90..LHD..GEN198705-199206

86520HORN ASSY, LOW PITCHED

main86520-12220iAE92,EE90198705-198708

MARUKO

main86520-12640iAE92,EE90..GCC,GEN198705-198908

NIPPONDENSO

main86520-12660iAE92,EE90..SA198808-199308

main86520-12670iEE90..GCC;AE92..XL..GEN;EE90..RHD..STD..GEN; EE90..LHD..STD;AE92,EE90..(3D,5D)..(3FC,5F)..GEN198705-198908

W(MW/SW RADIO)

main86520-12680iEE90..LHD..GEN198705-199206

CHINA SPEC

9011908157

main90119-08157

4 parts on this diagram · 1 diagram in section
