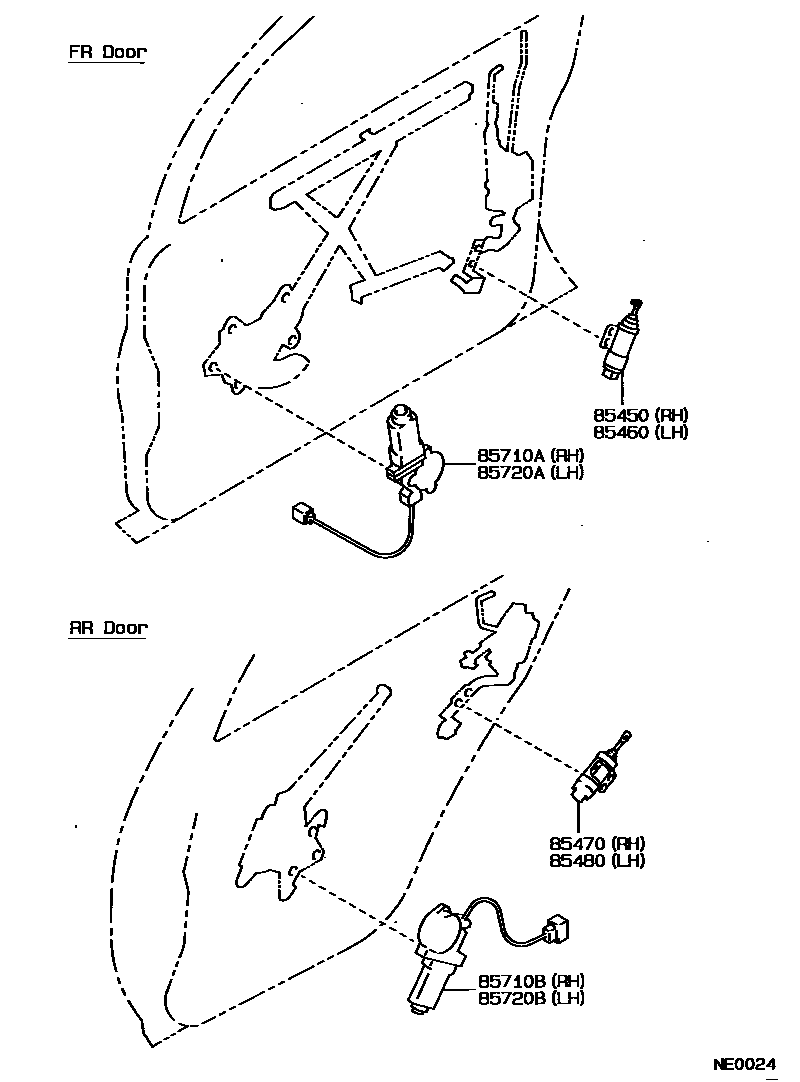

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-12160iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-199308

main85450-12200iAE92,EE90..3D..5F198705-199205

main85450-16060iAE92..XL..GEN198908-199106

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-12170iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-199308

main85450-12210iAE92,EE90..3D..5F198705-199205

main85450-16070iAE92..XL..GEN198908-199106

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-12250iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-198811

main85450-12320iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198811-199308

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-12240iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-198811

main85450-12310iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198811-199308

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-12060iAE92..GT;EE90..5D..(GCC,GEN)199107-199308

main85710-20060iAE92..GTI198705-198908

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-12080iEE90..5D..(GL,XL)198705-198808

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-12060iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198905-198908

main85720-20060iAE92..GEN198908-199205

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-12070iAE92..GT;EE90..5D..(GCC,GEN)199107-199308

8 parts on this diagram · 1 diagram in section
