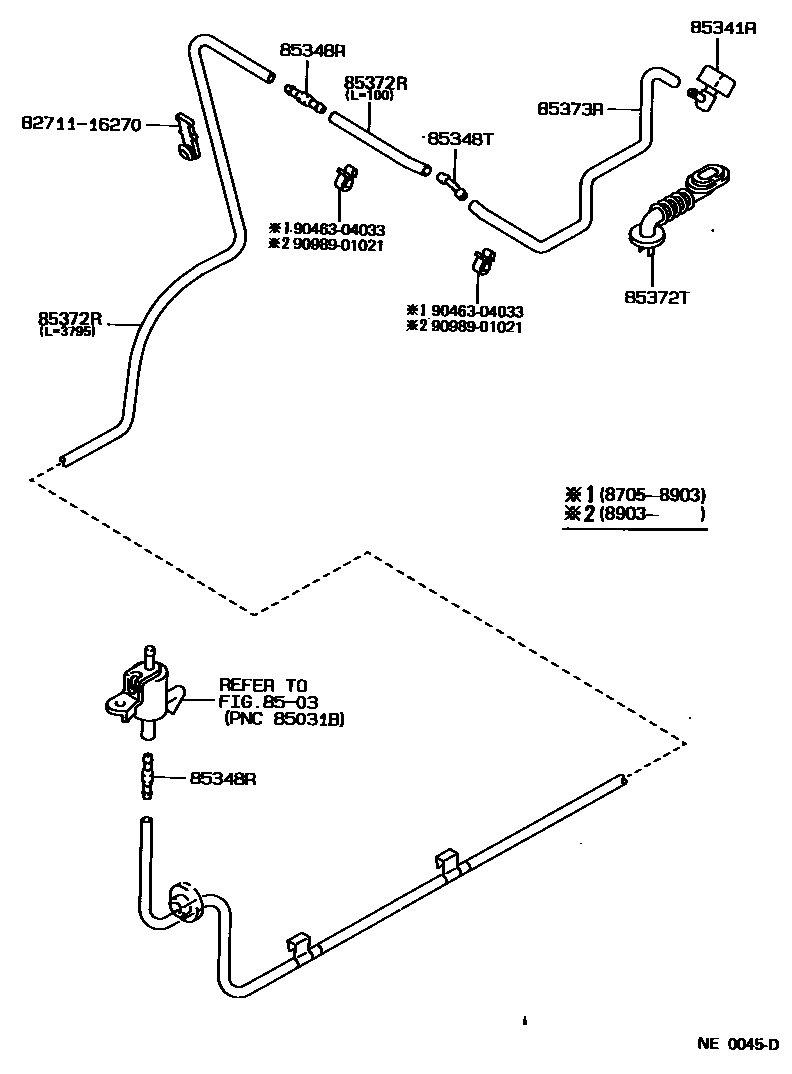

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85341RNOZZLE ASSY, WASHER

main85341-12230iAE92,EE90..3D,5D198705-198908

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iAE92,EE90..3D,5D198705-198908

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE92,EE90..3D,5D198705-198908

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iAE92,EE90..3D,5D198705-198908

L=1000

main90099-33852iAE92..3D,5D;EE90..LHD..GEN;EE90..5F..(GCC,SA);EE90..5D..(3FC,4F)..(STD,XL); EE90..RHD..5F..XL..GEN;EE90..RHD..(GL,STD)..GEN198908-199110

L=4985(*H,L=3801)

85372TGROMMET, WASHER

main85372-12020iAE92,EE90..3D,5D198705-199308

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE92,EE90..3D,5D198705-198908

L=1000

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

9046304033

main90463-04033

9098901021

main90989-01021

10 parts on this diagram · 1 diagram in section
