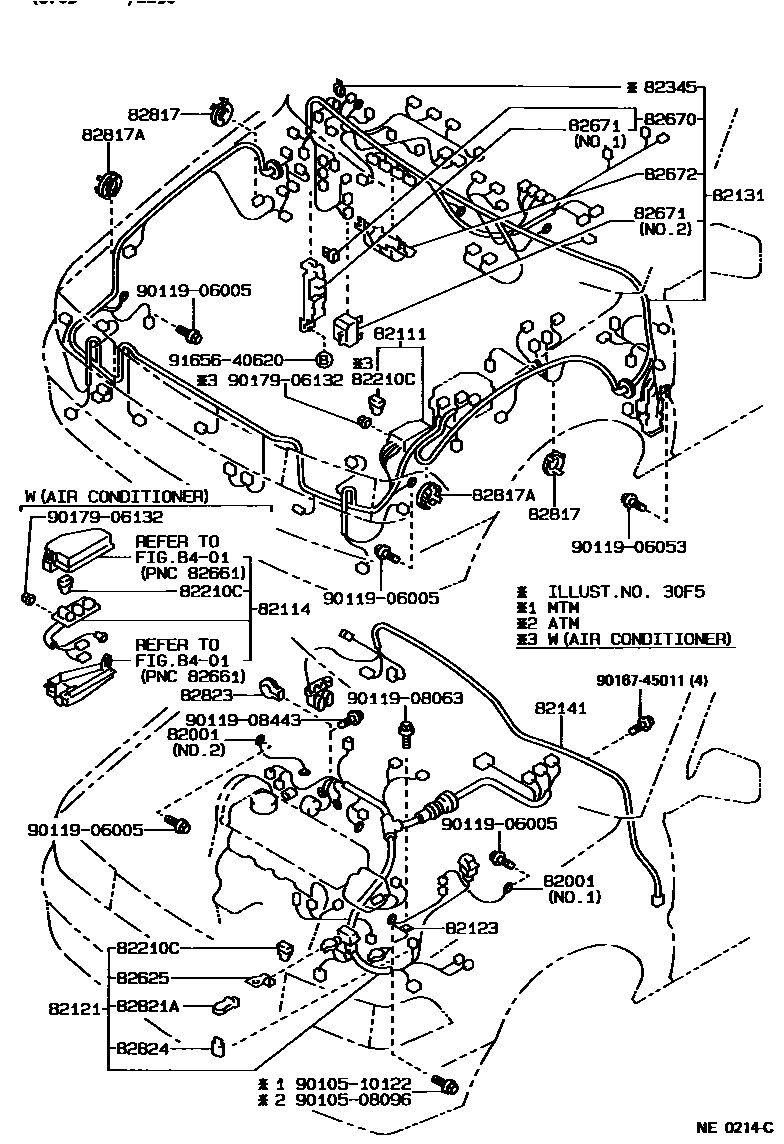

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82001CABLE, BOND, NO.1

main90980-07206iAE92,EE90; AE92..GT,GTI,SR5,XL198705-199308

NO.1

main90980-07235iAE92..GT,GTI198705-199308

NO.2

main90980-07236iAE92..XL198705-198709

NO.2

main90980-07293iEE90198705-199308

NO.2

main90980-07299iAE92..SR5,STD,XL198709-199308

NO.2

82111WIRE, ENGINE ROOM MAIN

main82111-1A310iAE92,EE90..RHD..(3D,5D)..GEN198705-198908

main82111-1A320iAE92,EE90..RHD..(3D,5D)..GEN198712-198908

W(COOLER)

main82111-1A330iAE92,EE90..LHD..(3D,5D)198705-198908

main82111-1A340iAE92,EE90..LHD..(3D,5D)..GEN; EE90..GCC198712-198908

W(COOLER)

main82111-1A360iAE92..LHD..XL198705-198908

main82111-1A480iAE92..RHD..XL..GEN198705-198908

main82111-1A830iAE92,EE90..RHD..(3D,5D)..GEN198908-199206

main82111-1A840iAE92..GTI; EE90..RHD..GEN198908-198910

W(COOLER)

main82111-1A841iEE90..RHD..GEN198910-199206

W(COOLER)

main82111-1A850iAE92,EE90..LHD..(3D,5D)198908-199207

main82111-1A860iEE90..LHD..STD198908-199205

ANTI-PROJECT MEASURE COUNTRIES & W(COOLER)

main82111-1E140iAE92..LHD..GEN198908-199106

main82111-1E150iAE92..RHD..XL..GEN198908-198910

main82111-1E151iAE92..RHD..XL..GEN198910-199106

82114WIRE, ENGINE ROOM, NO.4

main82114-12040iAE92,EE90198705-198908

82121WIRE, ENGINE

main82121-1A520iEE90..RHD..MTM..GEN198705-198908

main82121-1A530iEE90..RHD..3FC198705-198908

main82121-1A540iEE90..RHD..MTM..GEN198705-198908

SINGAPOLE SPEC

main82121-1A560iAE92..RHD..5F..XL198705-198806

main82121-1A561iAE92..RHD..5F..XL..GEN198806-198908

main82121-1A570iAE92..RHD..3FC198705-198806

main82121-1A571iAE92..RHD..3FC..GEN198806-198908

main82121-1A580iAE92..RHD..GTI198705-198808

main82121-1A581iAE92..RHD..GTI198808-198908

main82121-1A590iEE90..LHD..MTM198705-198908

main82121-1A600iEE90..LHD..3FC198705-198908

main82121-1A610iAE92..LHD..5F..XL198705-198806

main82121-1A611iAE92..LHD..5F..XL198806-198908

main82121-1A620iAE92..LHD..3FC198705-198806

main82121-1A621iAE92..LHD..3FC198806-198908

main82121-1A630iAE92..LHD..GTI198705-198808

main82121-1A631iAE92..LHD..GTI198808-198908

main82121-1E081iAE92..GT198808-198908

main82121-1E730iEE90..RHD..MTM..GEN198908-199206

main82121-1E740iEE90..3FC..GEN198908-199206

main82121-1E750iEE90..RHD..MTM..GEN198908-199206

SINGAPOLE SPEC

main82121-1E760iAE92..RHD..5F..XL..GEN198908-199106

main82121-1E770iAE92..4FC198908-199106

main82121-1E780iAE92..GT,GTI198908-199103

main82121-1E781iAE92..GT199103-199308

main82121-1E800iEE90..LHD..MTM198908-199207

main82121-1E810iEE90..3FC..GCC198908-199008

main82121-1E820iAE92..LHD..5F198908-199207

main82121-1E830iAE92..3FC..GCC199008-199207

main82121-1E860iEE90..RHD..MTM..GEN198908-199206

NEW ZEALAND SPEC

main82121-1E870iEE90..3FC..GL198908-199101

NEW ZEALAND SPEC

82123WIRE, ENGINE, NO.3

main82123-12140iAE92,EE90..3FC..(GCC,GEN)198705-199207

main82123-12150iAE92,EE90..3FC..(GCC,GEN)198705-199207

BATTERY=34B19L OR 32C24L

main82123-12160iAE92,EE90..(4F,4FC,5F)..(GCC,GEN)198705-199207

main82123-12170iAE92,EE90..MTM..(GL,STD,XL); AE92..GTI198705-198708

BATTERY=34B19L; BATTERY=34B19L OR 32C24L

82131WIRE, COWL

main82131-1E020iEE90..RHD198705-198806

main82131-1E021iEE90..RHD..GEN198806-198908

main82131-1E030iAE92..RHD..GTI198705-198806

main82131-1E031iAE92..RHD..GTI198806-198908

main82131-1E040iEE90..LHD..GEN198705-198806

main82131-1E041iEE90..LHD..GEN198806-198908

main82131-1E050iAE92..LHD..GTI198705-198806

main82131-1E051iAE92..LHD..GTI198806-198908

main82131-1E060iEE90..GCC198708-198806

main82131-1E061iEE90..GCC198806-198810

main82131-1E062iEE90..GCC198810-198908

main82131-1E200iAE92..LHD..XL198705-198806

main82131-1E201iAE92..LHD..XL198806-198908

main82131-1E210iAE92..RHD..XL198705-198806

main82131-1E211iAE92..RHD..XL..GEN198806-198908

main82131-1K230iEE90..RHD..GEN198908-199008

main82131-1K231iEE90..RHD..GEN199008-199206

main82131-1K240iAE92..GTI198908-199205

main82131-1K260iEE90..LHD..GEN198908-199206

main82131-1K280iAE92,EE90..GCC198908-199207

main82131-1K290iEE90..GL;EE90..RHD..5F..XL..GEN198908-198910

NEW ZEALAND SPEC

main82131-1K800iAE92..RHD..XL..GEN198908-199106

main82131-1K810iAE92..LHD..GEN198908-199106

82141WIRE, INSTRUMENT PANEL

main82141-12010iAE92..GT198908-199107

main82141-12011iAE92..GT199107-199308

main82141-12020iAE92,EE90..LHD..(3D,5D)..(GL,GTI,XL)198705-198908

main82141-12070iAE92,EE90..RHD..(3D,5D)..(3FC,5F)..GEN198908-199206

main82141-12080iEE90..LHD..XL198908-199106

82210CFUSIBLE LINK

main90982-08188iAE92,EE90198909-199308

30A,TERM.:FEMALE,PNK

main90982-08189iAE92..GT;AE92..GCC,GEN198908-199308

40A,TERM.:FEMALE,GRN

main90982-08190iAE92,EE90..(3D,5D)..(GL,STD,XL)198908-199308

60A,TERM.:FEMALE,YEL

main90982-08203iAE92..GT,GTI198705-198912

80A,TERM.:MALE,BLK

main90982-08223iAE92..GT;AE92..GCC,GEN198908-199308

30A,TERM.:MALE,PNK

main90982-08253iAE92..GCC,GEN198908-198912

80A,TERM.:MALE,BLK

82345DIODE

main82345-12030iAE92,EE90..3D,5D198705-199308

NO.2

main82345-12040iAE92..GT,GTI198705-198912

NO.3

main82345-20050iAE92..STD198808-199308

NO.6

main82345-32020iAE92..GT,GTI198705-198912

NO.8

82625TERMINAL, FUSIBLE LINK

main82625-12010iAE92,EE90..(3D,5D)..(GL,STD,XL)198908-199308

main82625-12020iAE92..(SR5,XL)..(GCC,GEN)198908-199207

main82625-12030iAE92..GT,GTI198705-199308

82670BLOCK ASSY, JUNCTION, NO.1

main82670-12090iAE92,EE90..SA198908-198909

main82670-12120iEE90..RHD..GEN198709-198908

82671BLOCK, JUNCTION

main82671-12020iAE92..XL..GEN198705-199106

NO.2

main82671-12030iAE92,EE90198705-199308

NO.1

main82671-12070iAE92,EE90..3D,5D198705-199308

NO.2

82672COVER, JUNKTION BLOCK

main82672-12080iEE90..RHD..GEN;AE92..RHD..(GT,GTI)198705-198908

main82672-12081iAE92,EE90..RHD..(3D,5D)..GEN198908-199206

main82672-12100iAE92..XL..GEN198705-199106

main82672-12110iAE92,EE90..LHD..(3D,5D)198705-198908

main82672-12111iAE92,EE90..LHD..(3D,5D)198908-199207

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-14350×2iAE92,EE90198705-199308

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32010×2iAE92,EE90198705-199308

82821ACOVER, CONNECTOR

main82821-12180iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198908-199207

main82821-12190iAE92,EE90198705-198908

82823CAP, TERMINAL, NO.1

main82823-22050iAE92,EE90198705-199308

82824CONNECTOR, WIRING HARNESS

main82824-32030iAE92,EE90198705-199308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9011906053

main90119-06053

9011908063

main90119-08063

9011908443

main90119-08443

9016745011

main90167-45011

9017906132

main90179-06132

9165640620

main91656-40620
