CENTER STOP LAMP

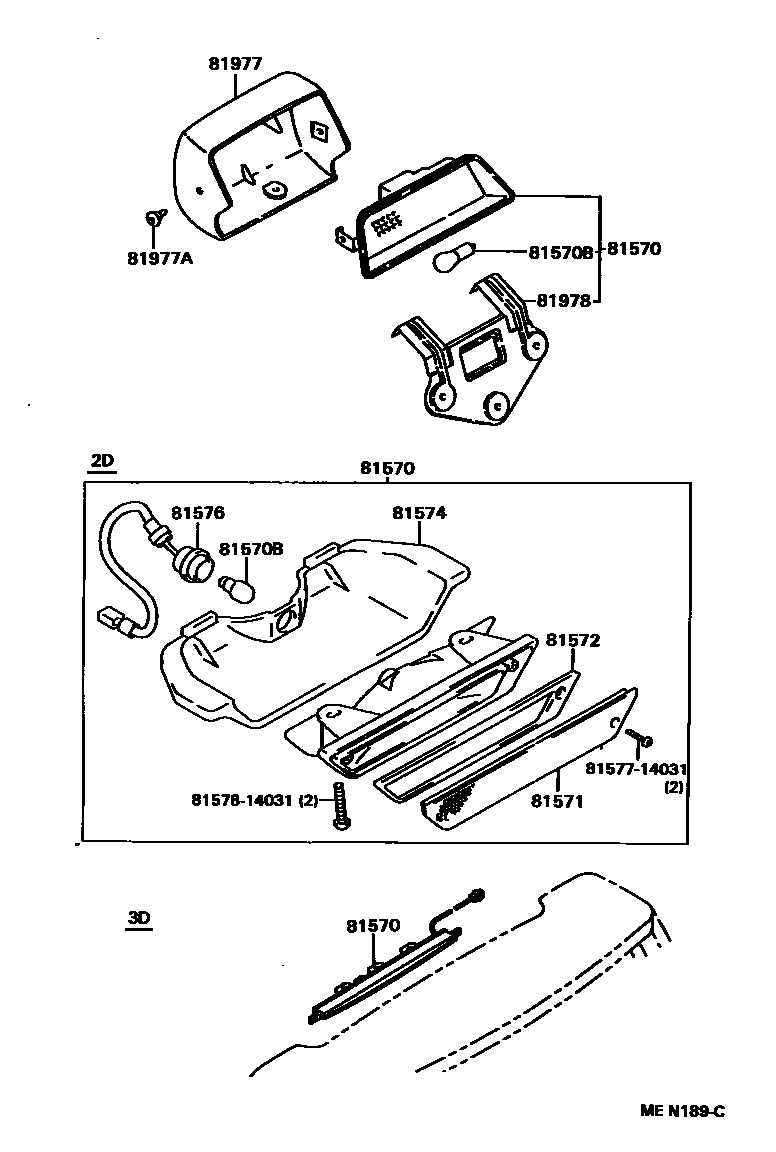

Parts diagram
81570LAMP ASSY, CENTER STOP
main81570-12080-01i198908-199106
BLACK-M,204
main81570-12080-02i198908-199106
SUPER RED,3E5
main81570-12080-03i198908-199008
GRAY-M,168
main81570-12080-04i198908-199106
DARK BLUE MICA METAL,8E9
main81570-12080-08i198908-199106
SUPER WHITE,040
main81570-12080-13i199008-199106
DARK BLUEISH GRAY ME,183
main81570-12080-14i198908-199106
BLUE MICA METALLIC,8G1
main81570-12130i199008-199205
W(RR SPOILER)
main81570-12150i198906-198908
NEW ZEALAND SPEC
81570BBULB (FOR CENTER STOP LAMP)
main90981-11039i198908-199106
12V 16W
main99132-11270i198906-198908
12V 27W,NEW ZEALAND SPEC
81571LENS, CENTER STOP LAMP
main81571-14031i198908-199106
81572GASKET, CENTER STOP LAMP
main81572-14031i198908-199106
81574COVER, CENTER STOP LAMP
main81574-12080-01i198908-199106
BLACK-M,204
main81574-12080-02i198908-199106
SUPER RED,3E5
main81574-12080-03i198908-199008
GRAY-M,168
main81574-12080-04i198908-199106
DARK BLUE MICA METAL,8E9
main81574-12080-08i198908-199106
SUPER WHITE,040
main81574-12080-13i199008-199106
DARK BLUEISH GRAY ME,183
main81574-12080-14i198908-199106
BLUE MICA METALLIC,8G1
81576SOCKET & WIRE, CENTER STOP LAMP
main81576-12080i198908-199106
81977COVER, CENTER STOP LAMP
main81977-12110-03i198911-199105
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main81977-12110-04i199105-199206
NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main81977-12110-05i198906-198908
NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
81977ACLIP (FOR CENTER STOP LAMP)
main90467-07055-03×3i198908-198911
NEW ZEALAND SPEC,GRAY,TRIM1#
main90467-07055-25×3i198906-198908
NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
main90467-07055-B2×3i199008-199105
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main90467-07055-J0×3i199105-199206
NEW ZEALAND SPEC,DARK BLUE,TRIM8#
81978BRACKET, STOP CENTER
main81978-12020i198906-198908
NEW ZEALAND SPEC
8157714031
main81577-14031
8157814031
main81578-14031

11 parts on this diagram · 1 diagram in section
