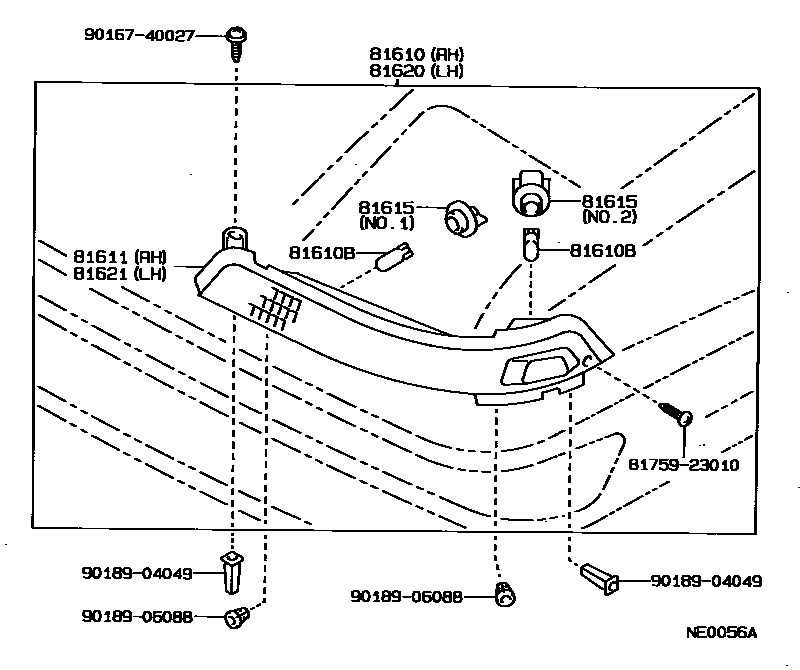

FRONT CLEARANCE LAMP

0001 1 0002 1

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12370iAE92..XL..GEN198705-199106

main81610-12390iAE92,EE90..3D,5D198705-198707

main81610-12391iAE92,EE90..(3D,5D)..(GCC,GEN)198707-199207

main81610-12400iAE92,EE90..SA198808-199308

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4iAE92,EE90..GCC,GEN198705-199207

12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12370iAE92..XL..GEN198905-198908

main81611-12390iAE92,EE90..3D,5D198705-198707

main81611-12391iAE92,EE90..(3D,5D)..(GCC,GEN)198707-199207

main81611-12400iAE92,EE90..SA198808-199308

81615SOCKET AND WIRE, CLEARANCE LAMP

main81735-12180×2iAE92,EE90..SA198808-199308

main90075-99006×2iAE92,EE90..GCC,GEN198705-199207

NO.2

main90075-99007×2iAE92,EE90..GCC,GEN198705-199207

NO.1

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12370iAE92..XL..GEN198705-199106

main81620-12390iAE92,EE90..3D,5D198705-198707

main81620-12391iAE92,EE90..(3D,5D)..(GCC,GEN)198707-199207

main81620-12400iAE92,EE90..SA198808-199308

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12370iAE92..XL..GEN198908-199106

main81621-12390iAE92,EE90..3D,5D198705-198707

main81621-12391iAE92,EE90..(3D,5D)..(GCC,GEN)198707-199207

main81621-12400iAE92,EE90..SA198808-199308

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9016740027

main90167-40027

9018904049

main90189-04049

9018906088

main90189-06088

10 parts on this diagram · 2 diagrams in section
