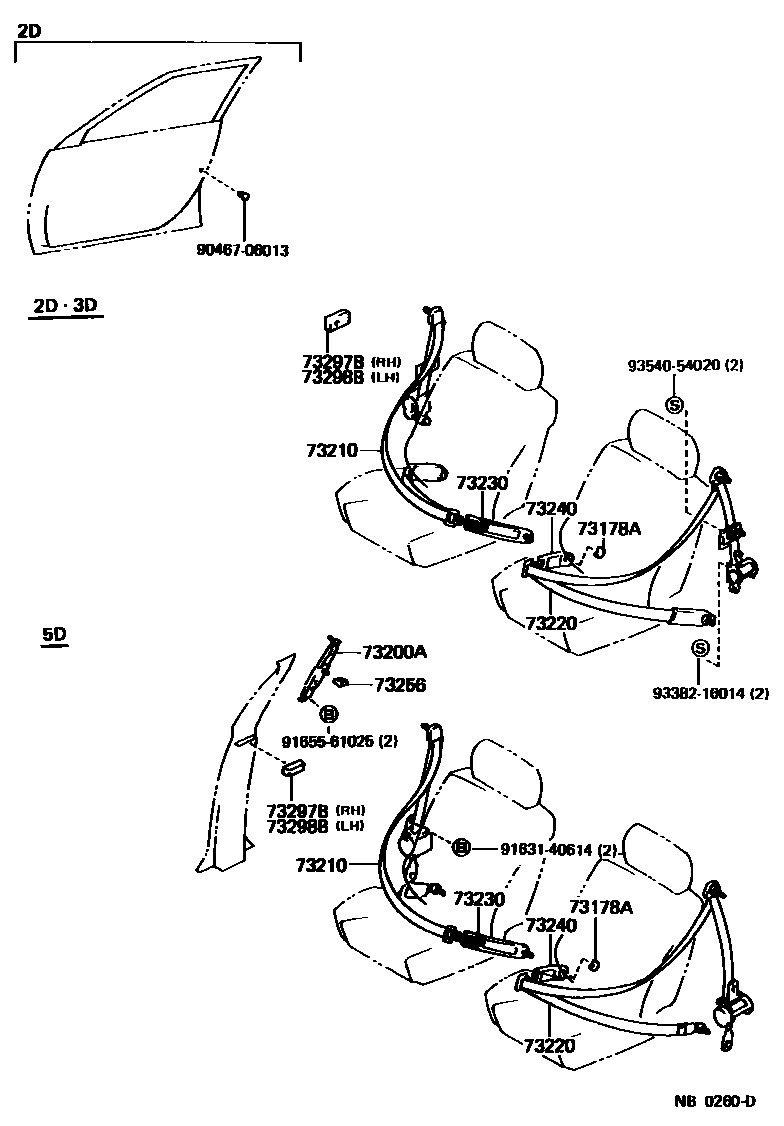

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-13iAE92,EE90..GCC,GEN198705-199009

GRAY,TRIM1#

sub73178-16010

main73178-16010-25iAE92,EE90..(GL,STD,XL)..(GCC,GEN)198705-198809

DARK BEIGE,TRIM4#

sub73178-16010

main73178-16010-46iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub73178-16010

main73178-16010-54iAE92..XL..GEN;EE90..LHD..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub73178-16010

main73178-16010-B0iAE92,EE90..GCC,GEN199009-199207

SHADOW GRAY,TRIM1#

sub73178-16010

main73178-16010-E0iEE90..LHD..GL;AE92,EE90..(STD,XL)..(GCC,GEN)198809-198908

DARK BEIGE,TRIM4#

sub73178-16010

main73178-16010-J0iAE92..XL..GEN;EE90..LHD..(GL,XL)198809-199207

DARK BLUE,TRIM8#

sub73178-16010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12011-03iAE92,EE90..SA198808-198908

SHADOW GRAY,TRIM1#

sub73200-12011

main73200-12011-05iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

sub73200-12011

main73200-12012-03iAE92,EE90..SA198908-199308

SHADOW GRAY,TRIM1#

sub73200-12012

main73200-12012-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

sub73200-12012

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12630-03iEE90..5D198705-198708

SHADOW GRAY,TRIM1#,TAKATA

sub73210-12631

main73210-12630-04iEE90..LHD..5D..(GL,XL)198705-198708

DARK BLUE,TRIM8#,TAKATA

sub73210-12631

main73210-12630-05iEE90..5D198705-198708

DARK BEIGE,TRIM4#,TAKATA

sub73210-12631

main73210-12631-03iEE90..5D..GEN198708-198908

SHADOW GRAY,TRIM1#,TAKATA

main73210-12631-04iEE90..LHD..5D..(GL,XL)..GEN198708-198908

DARK BLUE,TRIM8#,TAKATA

main73210-12631-05iEE90..5D..GEN198708-198908

DARK BEIGE,TRIM4#,TAKATA

main73210-12640-03iEE90..3D..XL;AE92,EE90..LHD..3D..(GTI,STD)198705-198908

SHADOW GRAY,TRIM1#,TAKATA

main73210-12640-04iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#,TAKATA

main73210-12640-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#,TAKATA

main73210-12660-03iEE90..5D198705-198708

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73210-12661

main73210-12660-04iEE90..LHD..5D..(GL,XL)198705-198708

DARK BLUE,TRIM8#,TOKAIRIKA

sub73210-12661

main73210-12660-05iEE90..5D198705-198708

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73210-12661

main73210-12661-03iEE90..GCC198708-198908

SHADOW GRAY,TRIM1#

sub73210-12661

main73210-12661-03iEE90..GCC198708-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73210-12661

main73210-12661-04iEE90..GCC198708-198908

DARK BLUE,TRIM8#

sub73210-12661

main73210-12661-04iEE90..GCC198708-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73210-12661

main73210-12661-05iEE90..GCC198708-198908

DARK BEIGE,TRIM4#

sub73210-12661

main73210-12661-05iEE90..GCC198708-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73210-12661

main73210-12662-03iAE92,EE90..5D..(GCC,GEN)198908-199207

SHADOW GRAY,TRIM1#

sub73210-12663

main73210-12662-04iEE90..5D..(GCC,GEN)198908-199207

DARK BLUE,TRIM8#

sub73210-12663

main73210-12662-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub73210-12663

main73210-12690-03iAE92..RHD..GTI198705-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73210-12690

main73210-12690-04iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73210-12690

main73210-12690-05iEE90..RHD..3D..STD198705-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73210-12690

main73210-12691-03iAE92,EE90..RHD..3D198908-199205

SHADOW GRAY,TRIM1#

sub73210-12691

main73210-12691-04iEE90..LHD..STD198908-199205

DARK BLUE,TRIM8#

sub73210-12691

main73210-12720-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub73210-12720

main73210-12720-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub73210-12720

main73210-12720-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub73210-12720

main73210-12730-03iAE92..RHD..GTI198705-198908

SHADOW GRAY,TRIM1#

main73210-12730-05iEE90..RHD..3D..STD198805-198908

DARK BEIGE,TRIM4#

main73210-12731-03iAE92,EE90..RHD..3D198908-199205

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main73210-12731-04iEE90..RHD..STD..GEN198908-199205

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12540-03iEE90..5D198705-198708

SHADOW GRAY,TRIM1#,TAKATA

sub73220-12541

main73220-12540-04iEE90..LHD..5D..(GL,XL)198705-198708

DARK BLUE,TRIM8#,TAKATA

sub73220-12541

main73220-12540-05iEE90..5D198705-198708

DARK BEIGE,TRIM4#,TAKATA

sub73220-12541

main73220-12541-03iEE90..5D..GEN198708-198908

SHADOW GRAY,TRIM1#,TAKATA

main73220-12541-04iEE90..LHD..5D..(GL,XL)..GEN198708-198908

DARK BLUE,TRIM8#,TAKATA

main73220-12541-05iEE90..5D..GEN198708-198908

DARK BEIGE,TRIM4#,TAKATA

main73220-12550-03iAE92..RHD..GTI198705-198908

SHADOW GRAY,TRIM1#,TAKATA

main73220-12550-04iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#,TAKATA

main73220-12550-05iEE90..3D..XL;EE90..LHD..3D..STD198705-198908

DARK BEIGE,TRIM4#,TAKATA

main73220-12570-03iEE90..5D198705-198708

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73220-12571

main73220-12570-04iEE90..LHD..5D..(GL,XL)198705-198708

DARK BLUE,TRIM8#,TOKAIRIKA

sub73220-12571

main73220-12570-05iEE90..5D198705-198708

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73220-12571

main73220-12571-03iEE90..GCC198708-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73220-12571

main73220-12571-03iEE90..GCC198708-198908

SHADOW GRAY,TRIM1#

sub73220-12571

main73220-12571-04iEE90..LHD..5D..(GL,XL)..GEN198708-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73220-12571

main73220-12571-04iEE90..GCC198708-198908

DARK BLUE,TRIM8#

sub73220-12571

main73220-12571-05iEE90..GCC198708-198908

DARK BEIGE,TRIM4#

sub73220-12571

main73220-12571-05iEE90..GCC198708-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73220-12571

main73220-12572-03iAE92,EE90..5D..(GCC,GEN)198908-199207

SHADOW GRAY,TRIM1#

sub73220-12573

main73220-12572-04iEE90..5D..(GCC,GEN)198908-199207

DARK BLUE,TRIM8#

sub73220-12573

main73220-12572-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub73220-12573

main73220-12600-03iEE90..3D..XL;AE92,EE90..LHD..3D..(GTI,STD)198705-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73220-12600

main73220-12600-04iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73220-12600

main73220-12600-05iEE90..RHD..3D..STD198705-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73220-12600

main73220-12601-03iEE90..LHD..STD198908-199205

SHADOW GRAY,TRIM1#

sub73220-12601

main73220-12601-04iEE90..LHD..STD198908-199205

DARK BLUE,TRIM8#

sub73220-12601

main73220-12630-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub73220-12630

main73220-12630-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub73220-12630

main73220-12630-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub73220-12630

main73220-12640-03iAE92,EE90..RHD..3D..(GTI,STD)198705-198908

SHADOW GRAY,TRIM1#

main73220-12640-05iEE90..RHD..3D..STD198805-198908

DARK BEIGE,TRIM4#

main73220-12641-03iAE92,EE90..RHD..3D198908-199205

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main73220-12641-04iEE90..RHD..STD..GEN198908-199205

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12280-03iEE90..(GL,XL)..GEN;EE90..5D..STD..GEN;AE92,EE90..LHD..3D..(GTI,STD)198705-198908

SHADOW GRAY,TRIM1#,TAKATA

main73230-12280-04iEE90..LHD..(GL,XL)..GEN198705-198908

DARK BLUE,TRIM8#,TAKATA

main73230-12280-05iEE90..(GL,XL)..GEN;EE90..5D..STD..GEN;EE90..LHD..3D..STD198705-198908

DARK BEIGE,TRIM4#,TAKATA

main73230-12300-03iEE90..GEN;AE92..LHD..GTI198705-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12300-03iEE90..GCC198705-198908

SHADOW GRAY,TRIM1#

sub73230-12300

sub73230-12301

main73230-12300-04iEE90..LHD..(GL,XL)..GEN198705-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12300-04iEE90..LHD..(GL,XL)..GEN198705-198908

DARK BLUE,TRIM8#

sub73230-12300

sub73230-12301

main73230-12300-05iEE90..GEN198705-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12300-05iEE90..GCC198705-198908

DARK BEIGE,TRIM4#

sub73230-12300

sub73230-12301

main73230-12301-03iEE90..5D..GEN;EE90..LHD..STD198908-199206

SHADOW GRAY,TRIM1#

sub73230-12301

main73230-12301-04iEE90..5D..GEN;EE90..LHD..(3FC,4F)198908-199206

DARK BLUE,TRIM8#

sub73230-12301

main73230-12301-06iEE90..LHD..XL..GEN;EE90..(3FC,4F)..GCC198908-199206

BROWN,TRIM4#

sub73230-12301

main73230-12340-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub73230-12330

sub73230-12340

main73230-12340-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub73230-12330

sub73230-12340

main73230-12340-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub73230-12330

sub73230-12340

main73230-12380-03iAE92,EE90..GCC199008-199207

SHADOW GRAY,TRIM1#

sub73230-12380

main73230-12380-04iEE90..GCC199008-199207

DARK BLUE,TRIM8#

sub73230-12380

main73230-12380-06iEE90..GCC199008-199207

BROWN,TRIM4#

sub73230-12380

main73230-12390-03iAE92..RHD..GTI198705-199205

NEWZEALAND SPEC,SHADOW GRAY,TRIM1#

main73230-12390-04iEE90..RHD..STD..GEN198908-199205

NEWZEALAND SPEC,DARK BLUE,TRIM8#

main73230-12390-05iEE90..RHD..3D..STD198805-198908

NEWZEALAND SPEC,DARK BEGIE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12280-03iEE90..GEN;AE92..LHD..GTI198705-198908

SHADOW GRAY,TRIM1#,TAKATA

main73230-12280-04iEE90..LHD..(GL,XL)..GEN198705-198908

DARK BLUE,TRIM8#,TAKATA

main73230-12280-05iEE90..GEN198705-198908

DARK BEIGE,TRIM4#,TAKATA

main73230-12300-03iEE90..GEN;AE92..LHD..GTI198705-198908

SHADOW GRAY,TRIM1#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12300-04iEE90..LHD..(GL,XL)..GEN198705-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12300-05iEE90..(GL,XL)..GEN;EE90..5D..STD..GEN;EE90..LHD..3D..STD198705-198908

DARK BEIGE,TRIM4#,TOKAIRIKA

sub73230-12300

sub73230-12301

main73230-12301-03iAE92,EE90..RHD..3D198908-199206

SHADOW GRAY,TRIM1#

sub73230-12301

main73230-12301-04iEE90..5D..GEN;EE90..LHD..STD198908-199206

DARK BLUE,TRIM8#

sub73230-12301

main73230-12301-06iEE90..LHD..XL..GEN198908-199206

BROWN,TRIM4#

sub73230-12301

main73230-12340-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub73230-12330

sub73230-12340

main73230-12340-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub73230-12330

sub73230-12340

main73230-12340-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub73230-12330

sub73230-12340

main73230-12390-03iAE92,EE90..RHD..3D..(GTI,STD)198705-199205

NEWZEALAND SPEC,SHADOW GRAY,TRIM1#

main73230-12390-04iEE90..RHD..STD..GEN198908-199205

NEWZEALAND SPEC,DARK BLUE,TRIM8#

main73230-12390-05iEE90..RHD..3D..STD198805-198908

NEWZEALAND SPEC,DARK BEGIE,TRIM4#

main73240-12120-03iEE90..GCC198708-198908

SHADOW GRAY,TRIM1#

sub73240-12110

sub73240-12120

main73240-12120-04iEE90..GCC198708-198908

DARK BLUE,TRIM8#

sub73240-12110

sub73240-12120

main73240-12120-05iEE90..GCC198708-198908

DARK BEIGE,TRIM4#

sub73240-12110

sub73240-12120

main73240-12121-03iAE92,EE90..GCC198908-199008

SHADOW GRAY,TRIM1#

sub73240-12122

main73240-12121-04iEE90..GCC198908-199008

DARK BLUE,TRIM8#

sub73240-12122

main73240-12121-06iEE90..GCC198908-199008

BROWN,TRIM4#

sub73240-12122

main73240-12122-03iAE92,EE90..GCC199008-199207

SHADOW GRAY,TRIM1#

sub73240-12122

main73240-12122-04iEE90..GCC199008-199207

DARK BLUE,TRIM8#

sub73240-12122

main73240-12122-06iEE90..GCC199008-199207

BROWN,TRIM4#

sub73240-12122

73256KNOB, SHOULDER BELT ANCHOR ADJUST

main73256-12010-03iAE92,EE90..SA198808-199308

SHADOW GRAY,TRIM1#

sub73256-12010

main73256-12010-05iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

sub73256-12010

main73256-12010-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

sub73256-12010

73297BCOVER, QUARTER TRIM BELT HOLE, RH

main73297-12100-03iEE90..5D..GEN198705-199206

SHADOW GRAY,TRIM1#

sub73297-12100

main73297-12100-04iEE90..LHD..5D..(GL,XL)..GEN198705-199206

DARK BLUE,TRIM8#

sub73297-12100

main73297-12100-05iEE90..5D..GEN198705-198908

DARK BEIGE,TRIM4#

sub73297-12100

main73297-12100-06iEE90..LHD..XL..GEN198908-199206

BROWN,TRIM4#

sub73297-12100

main73297-12120-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub73297-12120

main73297-12120-04iEE90..LHD..3D..XL198705-199205

DARK BLUE,TRIM8#

sub73297-12120

main73297-12120-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

sub73297-12120

73298BCOVER, QUARTER TRIM BELT HOLE, LH

main73298-12100-03iEE90..5D..GEN198705-199206

SHADOW GRAY,TRIM1#

sub73298-12100

main73298-12100-04iEE90..LHD..5D..(GL,XL)..GEN198705-199206

DARK BLUE,TRIM8#

sub73298-12100

main73298-12100-05iEE90..5D..GEN198705-198908

DARK BEIGE,TRIM4#

sub73298-12100

main73298-12100-06iEE90..LHD..XL..GEN198908-199206

BROWN,TRIM4#

sub73298-12100

main73298-12120-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub73298-12120

main73298-12120-04iEE90..STD..GEN198705-199205

DARK BLUE,TRIM8#

sub73298-12120

main73298-12120-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

sub73298-12120

9046706013

main90467-06013

9163140614

main91631-40614

9165561025

main91655-61025

9338216014

main93382-16014

9354054020

main93540-54020

14 parts on this diagram · 2 diagrams in section
