REAR SEAT & SEAT TRACK

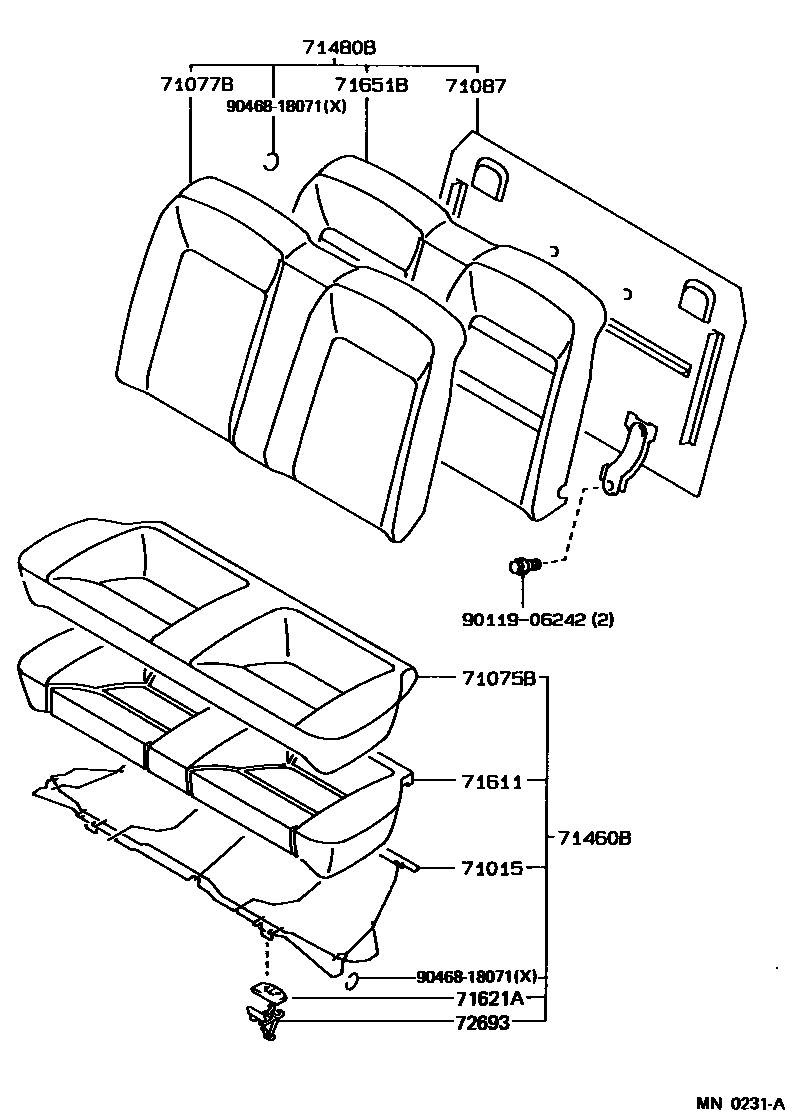

Parts diagram
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71015-12270i198705-199308
main71015-12280i198705-199106
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-1E100-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E100-04i198705-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71075-1E100-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71075-1E101-03i198908-199205
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E101-04i198908-199206
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71075-1E101-06i198908-199206
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-1E110-03i198705-198908
SHADOW GRAY,TRIM1#
main71075-1E110-04i198705-198908
BLUE,TRIM8#
main71075-1E110-05i198705-198908
DARK BEIGE,TRIM4#
main71075-1E111-03i198908-199206
SHADOW GRAY,TRIM1#
main71075-1E111-04i198908-199206
DARK BLUE,TRIM8#
main71075-1E120-03i198908-199308
SADOW GRAY,TRIM1#
main71075-1E121-03i198908-199205
SHADOW GRAY,TRIM1#
main71075-1E150-03i198705-199308
SHADOW GRAY,TRIM1#
main71075-1E150-04i198705-198908
DARK BLUE,TRIM8#
main71075-1E150-05i198908-199308
DARK BEIGE,TRIM4#
main71075-1E240-03i198705-198908
SHADOW GRAY,TRIM1#
main71075-1E240-04i198705-198908
DARK BLUE,TRIM8#
main71075-1E240-05i198705-198908
DARK BEIGE,TRIM4#
main71075-1E290-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E290-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71075-1E290-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71075-1E320-03i198705-198908
SHADOW GRAY,TRIM1#
main71075-1E320-04i198705-198908
DARK BLUE,TRIM8#
main71075-1E320-05i198705-198908
DARK BEIGE,TRIM4#
main71075-1E570-03i198708-199207
SHADOW GRAY,TRIM1#
main71075-1E570-04i198708-199207
DARK BLUE,TRIM8#
main71075-1E570-05i198708-198908
DARK BEIGE,TRIM4#
main71075-1E580-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E580-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71075-1E580-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71075-1E581-03i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E581-04i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71075-1E581-06i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-1E610-03i198908-199106
SHADOW GRAY,TRIM1#
main71075-1E610-04i198908-199106
DARK BLUE,TRIM8#
main71075-1E660-03i198908-199106
SHADOW GRAY,TRIM1#
main71075-1E660-04i198908-199106
DARK BLUE,TRIM8#
main71075-1E740-03i198908-199207
SHADOW GRAY,TRIM1#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-1H890-03i198705-198908
SHADOW GRAY,TRIM1#
main71077-1H890-04i198705-198908
DARK BLUE,TRIM8#
main71077-1H890-05i198705-198908
DARK BEIGE,TRIM4#
main71077-1K040-03i198705-198908
SHADOW GRAY,TRIM1#
main71077-1K040-04i198705-198908
DARK BLUE,TRIM8#
main71077-1K040-05i198705-198908
DARK BEIGE,TRIM4#
main71077-1K070-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71077-1K070-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71077-1K070-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71077-1K410-03i198908-199106
SHADOW GRAY,TRIM1#
main71077-1K410-04i198908-199106
DARK BLUE,TRIM8#
main71077-1K440-03i198908-199106
SHADOW GRAY,TRIM1#
main71077-1K440-04i198908-199106
DARK BLUE,TRIM8#
71087BOARD SUB-ASSY, REAR SEATBACK
main71087-12070i198705-199106
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-1E130-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71460-1E130-04i198705-198908
***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71460-1E130-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71460-1E131-03i198908-199206
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71460-1E131-04i198908-199206
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71460-1E131-06i198908-199206
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71460-1E140-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71460-1E140-04i198705-198908
***,BLUE,TRIM8#
main71460-1E140-05i198705-198908
***,DARK BEIGE,TRIM4#
main71460-1E141-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71460-1E141-04i198908-199206
***,DARK BLUE,TRIM8#
main71460-1E150-03i198908-199308
***,SADOW GRAY,TRIM1#
main71460-1E151-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71460-1E180-03i198705-199206
***,SHADOW GRAY,TRIM1#
main71460-1E180-04i198705-198908
DARK BLUE,TRIM8#
main71460-1E180-05i198705-198908
***,DARK BEIGE,TRIM4#
main71460-1E270-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71460-1E270-04i198705-198908
***,DARK BLUE,TRIM8#
main71460-1E270-05i198705-198908
***,DARK BEIGE,TRIM4#
main71460-1E291-03i198908-199008
***,SHADOW GRAY,TRIM1#
main71460-1E291-04i198908-199008
***,DARK BLUE,TRIM8#
main71460-1E320-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71460-1E320-04i198705-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71460-1E320-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71460-1E350-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71460-1E350-04i198705-198908
***,DARK BLUE,TRIM8#
main71460-1E350-05i198705-198908
***,DARK BEIGE,TRIM4#
main71460-1E580-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71460-1E580-04i198708-199207
***,DARK BLUE,TRIM8#
main71460-1E580-05i198708-198908
***,DARK BEIGE,TRIM4#
main71460-1E590-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71460-1E590-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71460-1E590-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM8#
main71460-1E591-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71460-1E591-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71460-1E591-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71460-1E750-03i198908-199207
***,SHADOW GRAY,TRIM1#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-1H830-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71480-1H830-04i198705-198908
***,DARK BLUE,TRIM8#
main71480-1H830-05i198705-198908
***,DARK BEIGE,TRIM4#
main71480-1K090-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71480-1K090-04i198705-198908
***,DARK BLUE,TRIM8#
main71480-1K090-05i198705-198908
***,DARK BEIGE,TRIM4#
main71480-1K091-03i198908-199106
***,SHADOW GRAY,TRIM1#
main71480-1K091-04i198908-199106
***,DARK BLUE,TRIM8#
main71480-1K530-03i198908-199207
***,SHADOW GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71611-12540i198705-198810
main71611-12580i198705-199106
main71611-12630i198810-199308
71621APAD, REAR SEAT CUSHION SILENCER, A
main71621-12270×2i199008-199106
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71651-12670i198705-199106
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12020×2i198705-198812
main72693-12050×2i198812-199106
main72693-32020×2i199108-199308
9011906242
main90119-06242
9046818071
main90468-18071

12 parts on this diagram · 2 diagrams in section
