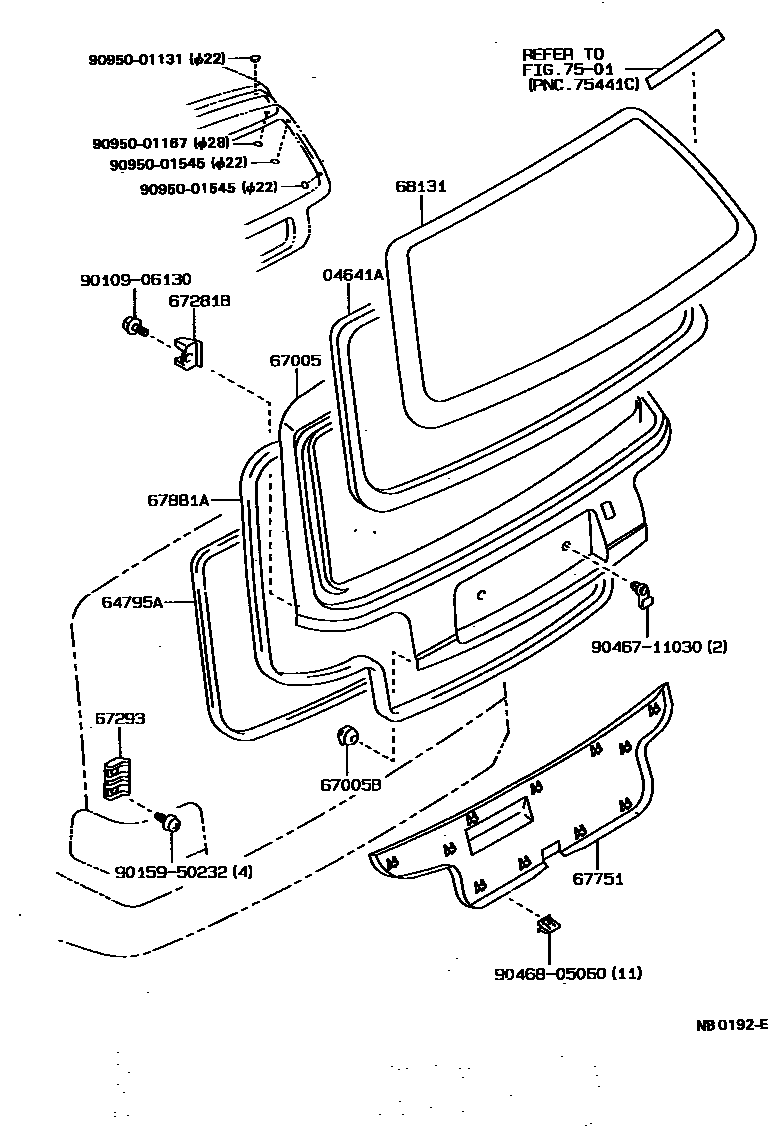

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iAE92,EE90..3D,5D198908-199308

64795ATRIM, BACK WINDOW OPENING

main64795-12030iAE92,EE90..3D,5D198705-199308

67005PANEL SUB-ASSY, BACK DOOR

main67005-1A360iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

main67005-1A370iAE92..GT198808-199308

main67005-1A390iEE90..5D..GEN;AE92..3FC..GCC199008-199207

W(REAR SPOILER) & W(*RW)

main67005-1A520iAE92..GCC;EE90..5D..GEN199008-199207

W(REAR SPOILER)

main67005-1A610iEE90..GL;EE90..RHD..5F..XL..GEN198908-198911

NEW ZEALAND SPEC

main67005-1A620iEE90..RHD..GL;EE90..RHD..5D..5F..XL..GEN198906-198911

NEW ZEALAND SPEC & W(*RW)

main67005-1A630iAE92..GTI198908-199205

NEW ZEALAND SPEC

main67005-1A640iEE90..RHD..5F..XL..GEN;EE90..RHD..(GL,STD)..GEN198911-199105

NEW ZEALAND SPEC

main67005-1A650iEE90..RHD..STD..GEN199105-199205

NEW ZEALAND SPEC & W(*RW)

main67005-1A700iEE90..RHD..5D..GEN199105-199206

NEW ZEALAND SPEC

main67005-1A710iEE90..RHD..5D..GEN199105-199206

NEW ZEALAND SPEC & W(*RW)

main67005-1A720iEE90..5F..GL199105-199206

NEW ZEALAND SPEC & W(REAR SPOILER & *RW)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-17002×2iAE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)198705-199308

67281BSTOPPER, BACK DOOR, LOWER

main67281-12050×2iAE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)198705-199308

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12040×2iAE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)198705-199308

67751BOARD, BACK DOOR TRIM

main67751-12090-03iEE90..RHD..STD..GEN199001-199205

NEW ZEALAND SPEC & W/O(REAR SEAT),SHADOW GRAY,TRIM1#

main67751-12090-04iEE90..RHD..STD..GEN199001-199205

NEW ZEALAND SPEC & W/O(REAR SEAT),DARK BLUE,TRIM8#

main67751-12090-05iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main67751-12090-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

main67751-12130-03iEE90..LHD..XL..GEN;AE92,EE90..RHD..(3D,5D)..GEN199105-199206

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67751-12130-04iEE90..5F..XL..GEN;EE90..RHD..(GL,STD)..GEN199001-199105

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67751-12130-05iEE90..RHD..GL;EE90..RHD..5D..5F..XL..GEN198906-198908

NEW ZEALAND SPEC,DARK BEIGE,TRIM4#

main67751-12130-06iEE90..LHD..XL..GEN199001-199206

NEW ZEALAND SPEC,BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-12210iAE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)198705-199308

68131GLASS, BACK DOOR

main68131-12540iAE92..GT,GTI198811-199308

*EHTT,T=3.5

main68131-12560iAE92..STD;EE90..XL..(GCC,GEN); EE90..LHD..GL198705-198908

*EHT,T=3.5

main68131-12590iAE92..3FC;EE90..(STD,XL)..(GCC,GEN)198908-199308

*TEM,T=3.5

main68131-12600iEE90..STD..GEN198705-198908

*TT,T=3.5

main68131-12650iEE90..3D..XL; EE90..5D..XL..GEN198705-198908

*TT,T=3.5

main68131-12660iAE92..XL..SA198808-198811

*EHTT,T=3.5

main68131-12670iEE90..LHD..STD; EE90..RHD..STD..GEN198908-199205

*EHT,T=3.5

main68131-12690iEE90..STD..SA198908-199308

*TEM,T=3.5

main68131-12710iEE90..STD..GEN198705-198908

*EHTT,T=3.5

main68131-1A100iAE92..XL..SA198811-199308

*EHT,T=3.5

main68131-1A290iAE92,EE90..RHD..3D198911-199205

*EHT,T=3.5,NEW ZEALAND SPEC

main68131-1A310iAE92..5F..GCC198908-199207

*TEM,T=3.5

main68131-1A320iAE92..5F..GCC198908-199207

*TT,T=3.5

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906130

main90109-06130

9015950232

main90159-50232

9046711030

main90467-11030

9046805060

main90468-05060

9095001131

main90950-01131

9095001167

main90950-01167

9095001545

main90950-01545

17 parts on this diagram · 1 diagram in section
