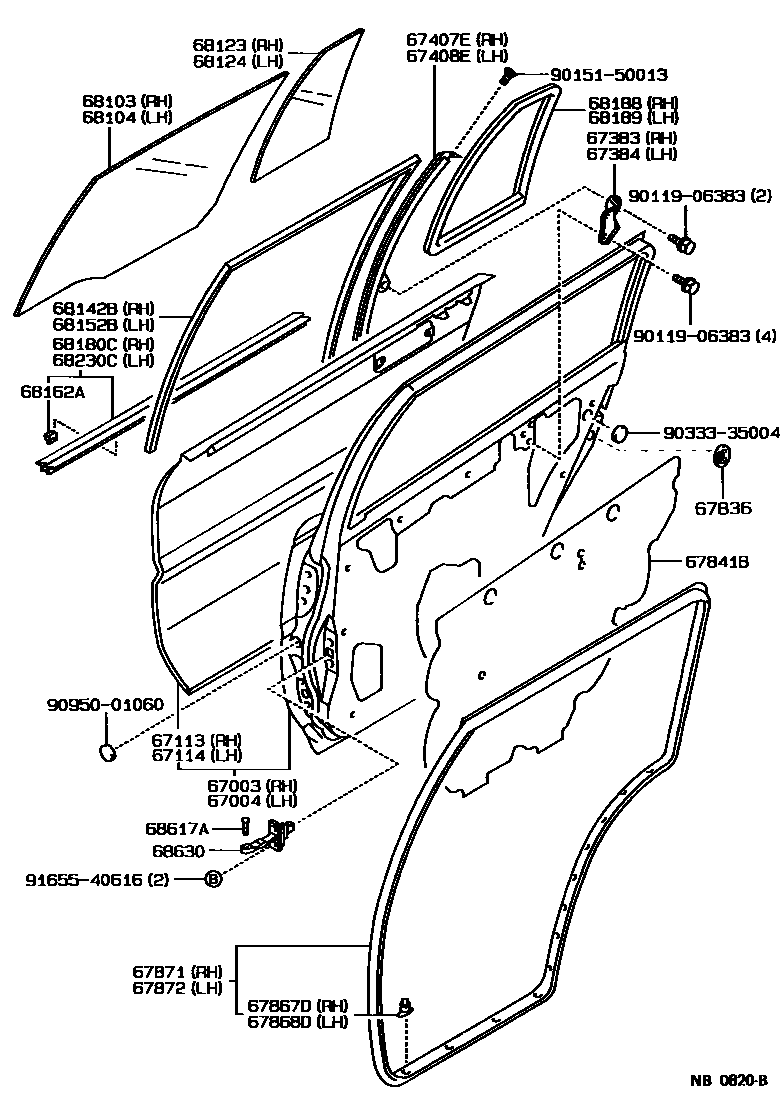

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12600iEE90..5D..GEN198705-199206

main67003-12610iAE92,EE90..GCC198708-199207

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12600iEE90..5D..GEN198705-199206

main67004-12610iAE92,EE90..GCC198708-199207

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iAE92,EE90..5D..(GCC,GEN)198705-199207

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iAE92,EE90..5D..(GCC,GEN)198705-199207

67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH

main67383-12030iAE92,EE90..5D198705-199308

67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH

main67384-12030iAE92,EE90..5D198705-199308

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12160iAE92,EE90..5D198705-199308

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12160iAE92,EE90..5D198705-199308

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iAE92,EE90..GCC,SA198708-199308

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12210iAE92,EE90..GCC,SA198708-199308

main67841-12220iAE92,EE90..5D..(GEN,SA)198705-199207

sub67841-12210

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iAE92,EE90..5D198708-199308

main67868-12050iEE90..5D198705-198708

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12030iEE90..5D198705-198708

sub67868-12050

main67868-12070iAE92,EE90..5D198708-199308

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12320iAE92,EE90..5D198705-198905

sub67871-12321

main67871-12321iAE92,EE90..5D198905-199308

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12320iAE92,EE90..5D198705-198905

sub67872-12321

main67872-12321iAE92,EE90..5D198905-199308

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12260iEE90..LHD..GL198705-199308

*TEM,T=3.5

main68113-12270iAE92,EE90..GL,GT198705-199308

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12260iEE90..RHD..GL198705-199308

*TEM,T=3.5

main68114-12270iEE90..5D..XL..GEN198705-199308

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12450iEE90..LHD..GL198705-199308

*TEM,T=3.5

sub68123-12460

main68123-12460iAE92,EE90..GL,GT198705-199308

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12450iEE90..RHD..GL198705-199308

*TEM,T=3.5

sub68124-12460

main68124-12460iEE90..5D..STD..GEN198705-199308

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-12140iAE92,EE90..5D198705-199308

68152BRUN, REAR DOOR WINDOW, LH

main68152-12060iAE92,EE90..5D198705-199308

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iAE92,EE90..5D..(STD,XL)198705-199308

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-12090iAE92,EE90..5D..(STD,XL)198705-199308

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12210iAE92,EE90..5D..STD198705-199308

main68188-12220iAE92,EE90..5D..(GL,GT,SR5,XL)198705-199308

main68188-12220iAE92,EE90..STD..SA199111-199308

W(FULL TRIM,VINYL)

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12220iAE92,EE90..5D..STD198705-199308

main68189-12230iAE92,EE90..5D..(GL,GT,XL)198705-199308

main68189-12230iAE92,EE90..STD..SA199111-199308

W(FULL TRIM,VINYL)

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-12060iAE92,EE90..5D..(STD,XL)198705-199308

68617APIN, REAR DOOR CHECK

main68617-12030iEE90..5F..GL;AE92,EE90..5D..(GT,STD,XL)198809-199308

main68617-22020iEE90..5F..GL;AE92,EE90..5D..(GT,STD,XL)198705-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE92,EE90..5D198705-199308

9011906383

main90119-06383

9015150013

main90151-50013

9033335004

main90333-35004

9095001060

main90950-01060

9165540616

main91655-40616

32 parts on this diagram · 2 diagrams in section
