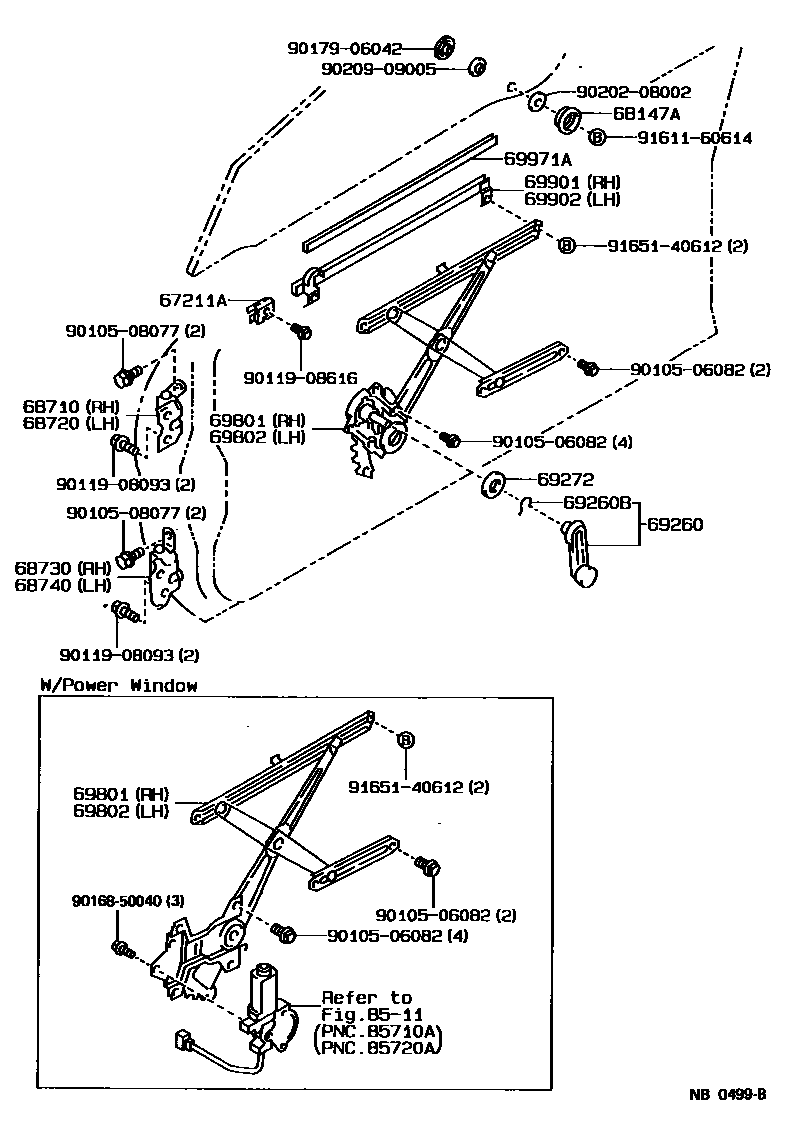

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-24010×4iAE92..XL..GEN198908-199106

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-14010×2iAE92..XL..GEN198705-199106

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE92,EE90..(2D,5D)..(GEN,SA)198908-199308

main68710-12110iEE90..3D;EE90..GCC;AE92..GTI,SR5198705-199207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iEE90..5F..GL;AE92,EE90..(2D,5D)..(GT,STD,XL)..(GEN,SA)198705-198908

main68720-12110iEE90..3D;EE90..GCC;AE92..GTI,SR5198705-199207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iEE90..5F..GL;AE92,EE90..(2D,5D)..(GT,STD,XL)..(GEN,SA)198705-198908

main68730-12070iEE90..3D;EE90..GCC;AE92..GTI,SR5198705-199207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iEE90..5F..GL;AE92,EE90..(2D,5D)..(GT,STD,XL)..(GEN,SA)198705-198908

main68740-12070iEE90..3D;EE90..GCC;AE92..GTI,SR5198705-199207

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-43×2iAE92,EE90..(SR5,STD,XL)..(GCC,GEN)198708-199207

GRAY,TRIM1#

main69260-10040-55×2iAE92,EE90..(STD,XL)..(GCC,GEN)198708-198908

DARK BEIGE,TRIM4#

main69260-10040-57×2iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main69260-10040-58×2iAE92..XL..GEN;EE90..LHD..XL198708-198908

DARK BLUE,TRIM8#

main69260-12070-13×2iAE92,EE90..(STD,XL)..SA198808-198908

GRAY,TRIM1#

main69260-12070-15×2iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

main69260-12080-03×2iAE92,EE90..GL,GTI198705-199206

SHADOW GRAY,TRIM1#

main69260-12080-04×2iEE90..LHD..GL198705-198908

BLUE,TRIM8#

main69260-12080-05×2iEE90..GL198705-198908

DARK BEIGE,TRIM4#

main69260-12090-03×2iAE92..GT198808-198908

SHADOW GRAY,TRIM1#

main69260-14030-53×2iAE92,EE90..(STD,XL)..SA198808-198908

SHADOW GRAY,TRIM1#

main69260-14030-55×2iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE92,EE90..(SR5,STD,XL)..(GCC,GEN)198705-199207

main90520-01005×2iAE92,EE90..GL,GT,GTI198705-199308

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iAE92,EE90..SR5,STD,XL198705-199308

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-199308

W(*PW)

main69801-12110iAE92..GTI198705-199205

W(*PW)

main69801-12120iAE92..LHD..GEN; AE92..RHD..XL..GEN198908-199106

W(*PW)

main69810-12290iAE92,EE90..5D198705-199308

main69810-12320iAE92,EE90..3D198705-199205

main69810-12350iAE92..XL..GEN198705-199106

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iAE92..GT;EE90..5D..(GL,XL)..(GCC,GEN)198705-199308

W(*PW)

main69802-12110iAE92..GTI198705-199205

W(*PW)

main69802-12120iAE92..LHD..GEN; AE92..RHD..XL..GEN198908-199106

W(*PW)

main69820-12290iAE92,EE90..5D198705-199308

main69820-12320iAE92,EE90..3D198705-199205

main69820-12350iAE92..XL..GEN198705-199106

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12190iEE90..5D..GEN198908-199206

main69901-12200iAE92,EE90..3D198705-199205

main69901-12210iAE92,EE90..3D198705-199205

W(FRONT GLASS T=4.0)

main69901-12220iAE92..XL..GEN198705-199106

main69901-12230iEE90..5D..GEN198902-198908

W(FRONT GLASS T=3.5)

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12130iEE90..5D..GEN198705-198902

main69902-12140iAE92,EE90..3D198705-199205

main69902-12150iAE92,EE90..3D198705-199205

W(FRONT GLASS T=4.0)

main69902-12160iAE92..XL..GEN198705-199106

main69902-12170iEE90..5D..GEN198902-198908

W(FRONT GLASS T=3.5)

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12080×2iAE92..XL..GEN198705-199106

main69971-12090×2iEE90..LHD..STD;AE92,EE90..RHD..(3D,5D)..GEN198908-199206

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508077

main90105-08077

9011908093

main90119-08093

9011908616

main90119-08616

9016850040

main90168-50040

9017906042

main90179-06042

9020208002

main90202-08002

9020909005

main90209-09005

9161160614

main91611-60614

9165140612

main91651-40612
