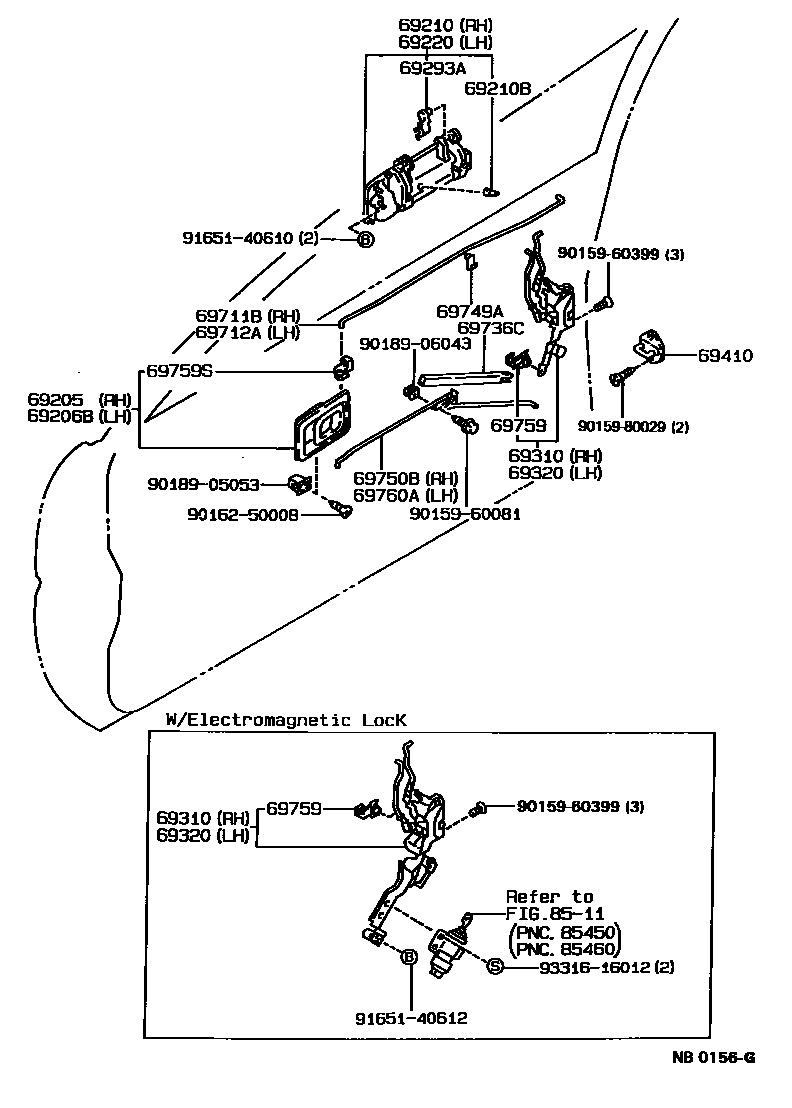

FRONT DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12120-03iEE90..GL198705-199206

SHADOW GRAY,TRIM1#

sub69205-12120

main69205-12120-04iEE90..LHD..GL198705-199206

BLUE,TRIM8#

sub69205-12120

main69205-12120-05iEE90..GL198705-198908

DARK BEIGE,TRIM4#

sub69205-12120

main69205-16050-03iAE92,EE90..2D,3D198705-199205

SHADOW GRAY,TRIM1#

sub69205-16050

main69205-16050-05iAE92,EE90..(2D,3D)..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub69205-16050

main69205-16050-14iAE92,EE90..(2D,3D)..(STD,XL)198705-199205

BLUE,TRIM8#

sub69205-16050

main69206-10040-05iAE92,EE90..5D..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-05iAE92,EE90..(STD,XL)..SA198908-199308

DARK BEIGE

sub69206-10040

sub69206-10030

main69206-10040-13iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-13iAE92,EE90..5D..(STD,XL)198705-199207

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-26iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-34iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,BLUE,TRIM8#

sub69206-10040

sub69206-10030

main69206-10040-34iEE90..LHD..5D..XL198705-199207

BLUE,TRIM8#

sub69206-10040

sub69206-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-10040-05iAE92,EE90..5D..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-05iAE92,EE90..(STD,XL)..SA198908-199308

DARK BEIGE

sub69205-10040

sub69205-10030

main69205-10040-13iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)198705-199207

GRAY,TRIM1#

sub69205-10040

sub69205-10030

main69205-10040-26iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-34iEE90..XL..(GCC,GEN)198705-199207

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69205-10040-34iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69206-12120-03iAE92,EE90..GL,GT198705-199206

SHADOW GRAY,TRIM1#

sub69206-12120

main69206-12120-04iEE90..GL198705-199206

BLUE,TRIM8#

sub69206-12120

main69206-12120-05iEE90..GL198705-198908

DARK BEIGE,TRIM4#

sub69206-12120

main69206-16050-03iAE92,EE90..2D,3D198705-199205

SHADOW GRAY,TRIM1#

sub69206-16050

main69206-16050-05iAE92,EE90..(2D,3D)..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub69206-16050

main69206-16050-14iAE92..XL..GEN;EE90..LHD..3D..XL198705-199205

BLUE,TRIM8#

sub69206-16050

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12110iAE92,EE90198705-199308

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03014iAE92,EE90..2D,3D198705-198808

sub90541-04014

main90541-04014iAE92,EE90..2D,5D198705-199308

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12110iAE92,EE90198705-199308

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE92,EE90198705-199308

RH

main69293-12040iAE92,EE90198705-199308

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12250iEE90..GCC198708-198908

sub69310-12251

main69310-12251iAE92,EE90..GCC198908-199207

main69310-12260iEE90..LHD..GL198705-199109

W(*EL)

sub69310-12380

main69310-12260iEE90..LHD..GL198705-198908

W(*EL & *PW)

sub69310-12380

main69310-12261iEE90..LHD..XL..GEN198908-199206

W(*EL)

main69310-12270iEE90..GCC198708-198908

W(*EL)

sub69310-12271

main69310-12271iEE90..GCC198908-199008

W(*EL)

main69310-12271iEE90..GCC199008-199207

W(*EL & *PW)

main69310-12290iAE92,EE90..3D198705-198908

sub69310-12310

main69310-12291iAE92,EE90..3D198908-199205

main69310-12300iAE92,EE90..LHD..3D..5F198705-198908

W(*EL)

sub69310-12310

main69310-12310iAE92,EE90..RHD..3D..5F198705-198908

W(*EL)

main69310-12311iAE92..GTI198908-199205

W(*EL)

main69310-12330iAE92..XL..GEN198705-199106

main69310-12340iAE92..LHD..GEN198908-199106

W(*PW)

main69310-12350iAE92..XL..GEN199001-199008

main69310-12360iAE92..LHD..GEN199001-199008

W(*PW)

main69310-12370iAE92,EE90..5D..(GEN,SA)198705-198908

sub69310-12380

main69310-12371iAE92,EE90..5D..(GEN,SA)198908-199308

main69310-12380iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-198708

W(*EL & *PW)

main69310-12380iEE90..RHD..5F..GL198705-198908

W(*EL)

main69310-12381iEE90..RHD..5D..GEN198908-199308

W(*EL)

69320LOCK ASSY, FRONT DOOR, LH

main69320-12270iEE90..GCC198708-198908

sub69320-12271

main69320-12271iAE92,EE90..GCC198908-199207

main69320-12280iEE90..RHD..5F..GL198705-198708

W(*EL & *PW)

sub69320-12400

main69320-12280iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-198908

W(*EL)

sub69320-12400

main69320-12281iAE92..GT;EE90..RHD..5D..GEN198908-199308

W(*EL)

main69320-12290iEE90..GCC198708-198908

W(*EL)

sub69320-12291

main69320-12291iEE90..GCC199008-199207

W(*EL & *PW)

main69320-12291iEE90..GCC198908-199008

W(*EL)

main69320-12300iAE92,EE90..3D198705-198908

sub69320-12320

main69320-12301iAE92,EE90..3D198908-199205

main69320-12310iAE92,EE90..RHD..3D..5F198705-198908

W(*EL)

sub69320-12320

main69320-12311iAE92..GTI198908-199205

W(*EL)

main69320-12320iAE92,EE90..LHD..3D..5F198705-198908

W(*EL)

main69320-12340iAE92..XL..GEN198705-199106

main69320-12350iAE92..LHD..GEN198908-199106

W(*PW)

main69320-12360iAE92..XL..GEN199001-199008

main69320-12370iAE92..LHD..GEN199001-199008

W(*PW)

main69320-12390iAE92,EE90..5D..(GEN,SA)198705-198908

sub69320-12400

main69320-12391iAE92,EE90..5D..(GEN,SA)198908-199308

main69320-12400iEE90..LHD..GL198705-198908

W(*EL & *PW)

main69320-12400iEE90..LHD..GL198705-199109

W(*EL)

main69320-12401iEE90..LHD..XL..GEN198908-199206

W(*EL)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iAE92..XL..GEN198705-199106

main69410-87001iAE92,EE90..3D,5D198705-199308

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12100iAE92,EE90..5D198705-199308

main69711-12110iAE92,EE90..3D198705-199205

main69711-12120iAE92..XL..GEN198705-199106

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12110iAE92,EE90..5D198705-199308

main69712-12120iAE92,EE90..3D198705-199205

main69712-12130iAE92..XL..GEN198705-199106

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iEE90..5D..(GL,XL)198705-199005

main69736-12040iAE92..LHD..XL198705-199106

RH

main69736-12050iAE92..LHD..XL198705-199106

LH

main69736-12070iAE92,EE90..3D198705-199205

RH

main69736-12080iAE92,EE90..3D198705-199205

LH

main69736-20090iAE92,EE90..5D..(GCC,GEN)199005-199308

sub69736-12030

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iAE92,EE90198705-199308

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12020iAE92,EE90..3D198705-199205

main69750-12030iAE92..XL..GEN198705-199106

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iEE90..GCC198705-199308

LH,YELLOW

main69759-20040iAE92,EE90..5D..(GEN,SA)198705-198908

W(*EL & *PW),LH,YELLOW

main69759-20040iEE90..GCC198705-199206

W(*EL),LH,YELLOW

main69759-20050iAE92,EE90..5D198705-199308

RH,BROWN

main69759-20050iEE90..LHD..5D..XL..GEN198705-199206

W(*EL),RH,BROWN

main69759-20050iAE92,EE90..5D198705-198908

W(*EL & *PW),RH,BROWN

main69759-20080iAE92..XL..GEN198705-199106

LH

main69759-20090iAE92..XL..GEN198705-199106

RH

main69759-20100iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-199205

W(*EL),RH,RED

main69759-20100iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-198708

W(*EL & *PW),RH,RED

main69759-20100iAE92,EE90..3D198705-199205

RH,RED

main69759-20110iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-198708

W(*EL & *PW),LH,BLACK

main69759-20110iEE90..RHD..3FC;EE90..RHD..5D..5F..XL198705-199205

W(*EL),LH,BLACK

main69759-20110iAE92,EE90..3D198705-199205

LH,BLACK

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iAE92,EE90..5D198705-199308

RH

main69759-20070iAE92,EE90..5D198705-199308

LH

main69759-22040iAE92,EE90..2D,3D198705-199205

RH

main69759-22050iAE92,EE90..2D,3D198705-199205

LH

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-12020iAE92,EE90..3D198705-199205

main69760-12030iAE92..XL..GEN198705-199106

8511

9015960081

main90159-60081

9015960399

main90159-60399

9015980029

main90159-80029

9016250008

main90162-50008

9018905053

main90189-05053

9018906043

main90189-06043

9165140610

main91651-40610

9165140612

main91651-40612

9331616012

main93316-16012

27 parts on this diagram · 3 diagrams in section
