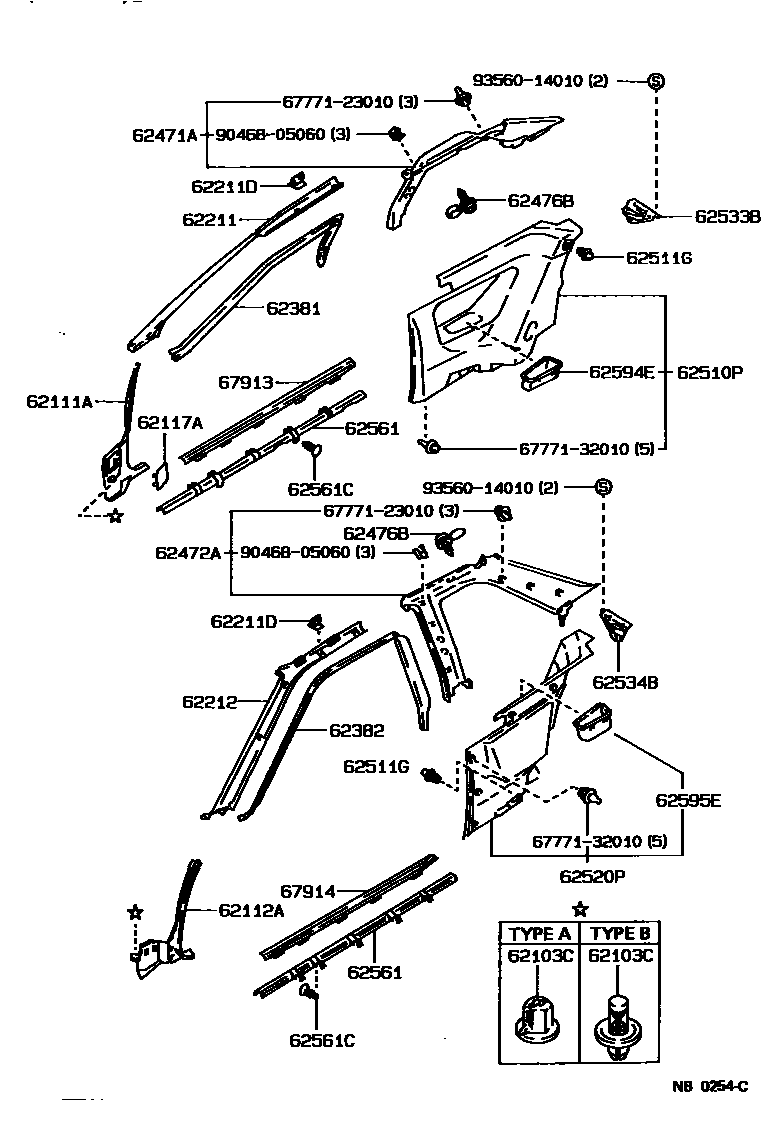

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE92,EE90..RHD..(3D,5D)..GEN198705-199308

BLACK,BLACK,TRIM1#,4#,8#

sub90467-05050

main90467-05050-01iAE92..XL..GEN198909-199207

BLACK,TRIM1#,8#,TYPE A

sub90467-05050

main90467-05050-01iAE92..XL..GEN198909-199207

BLACK,TRIM1#

sub90467-05050

main90467-05050-01iAE92..XL..GEN198909-199207

BLACK,TRIM1#,4#,8#

sub90467-05050

main90467-05050-01iAE92..XL..GEN198909-199207

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-01iEE90..LHD..XL199008-199207

BLACK,TRIM1#,TYPE A

sub90467-05050

main90467-05050-01iAE92,EE90..SA199008-199308

TYPE A,BLACK,BLACK,TRIM1#,4#,8#

sub90467-05050

main90467-07041-03iAE92..XL..GEN198705-199106

GRAY,TRIM1#,TYPE B

sub90467-07041

main90467-07041-34iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#,TYPE B

sub90467-07041

main90467-07041-45iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#,TYPE B

sub90467-07041

main90467-08160iAE92,EE90..GCC,GEN199108-199207

TYPE B

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12140-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

sub62101-12140

main62101-12140-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

sub62101-12140

main62101-12140-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62101-12140

main62101-12140-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

sub62101-12140

main62101-12150-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

sub62101-12150

main62101-12150-04iEE90..LHD..(GL,XL)198705-199207

DARK BLUE,TRIM8#

sub62101-12150

main62101-12150-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

sub62101-12150

main62101-12150-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub62101-12150

main62111-12160-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main62111-12160-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main62111-12160-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main62111-12170-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

sub62111-12170

main62111-12170-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

sub62111-12170

main62111-12170-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

sub62111-12170

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12140-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

sub62102-12140

main62102-12140-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

sub62102-12140

main62102-12140-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62102-12140

main62102-12140-06iAE92,EE90..STD..SA198908-199308

BROWN,TRIM4#

sub62102-12140

main62102-12150-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

sub62102-12150

main62102-12150-04iEE90..LHD..(GL,XL)198705-199207

DARK BLUE,TRIM8#

sub62102-12150

main62102-12150-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

sub62102-12150

main62102-12150-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub62102-12150

main62112-12160-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main62112-12160-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main62112-12160-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main62112-12170-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

sub62112-12170

main62112-12170-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

sub62112-12170

main62112-12170-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

sub62112-12170

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12090-03iAE92,EE90..RHD198705-199308

SHADOW GRAY,TRIM1#

sub62117-12090

main62117-12090-04iAE92..RHD..XL..GEN198705-199206

DARK BLUE,TRIM8#

sub62117-12090

main62117-12090-05iAE92,EE90..RHD..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62117-12090

main62117-12090-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

sub62117-12090

main62117-12100-03iAE92,EE90..LHD198705-199207

SHADOW GRAY,TRIM1#

sub62117-12100

main62117-12100-04iAE92,EE90..LHD..(STD,XL)198705-199207

DARK BLUE,TRIM8#

sub62117-12100

main62117-12100-05iAE92,EE90..LHD..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62117-12100

main62117-12100-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

sub62117-12100

62211GARNISH, FRONT PILLAR, RH

main62211-12190-03iAE92,EE90..3D,5D198705-199308

SHADOW GRAY,TRIM1#

sub62211-12190

main62211-12190-04iEE90..GCC,GEN198705-199207

DARK BLUE,TRIM8#

sub62211-12190

main62211-12190-05iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62211-12190

main62211-12190-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub62211-12190

main62211-12220-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main62211-12220-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main62211-12220-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main62211-12230-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main62211-12230-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main62211-12230-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05060iAE92..XL..GEN198705-199308

62212GARNISH, FRONT PILLAR, LH

main62212-12190-03iAE92,EE90..3D,5D198705-199308

SHADOW GRAY,TRIM1#

sub62212-12190

main62212-12190-04iEE90..GCC,GEN198705-199207

DARK BLUE,TRIM8#

sub62212-12190

main62212-12190-05iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62212-12190

main62212-12190-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub62212-12190

main62212-12220-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

sub62212-12220

main62212-12220-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

sub62212-12220

main62212-12220-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

sub62212-12220

main62212-12230-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main62212-12230-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main62212-12230-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-12170iAE92..XL..GEN198705-199106

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-12180iAE92..XL..GEN198705-199106

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12470-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub62471-12470

main62471-12470-04iEE90..LHD..3D..XL198705-199205

DARK BLUE,TRIM8#

sub62471-12470

main62471-12470-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

sub62471-12470

main62471-12480-03iEE90..RHD..STD..GEN198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62471-12480-04iEE90..LHD..STD198705-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62471-12480-05iEE90..3D198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62471-12490-03iAE92,EE90..5D..(GL,SR5,STD,XL)198705-199308

SHADOW GRAY,TRIM1#

sub62471-12490

main62471-12490-04iEE90..5D..(GCC,GEN)198705-199207

DARK BLUE,TRIM8#

sub62471-12490

main62471-12490-05iAE92,EE90..5D..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62471-12490

main62471-12490-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub62471-12490

main62471-12500-03iAE92,EE90..XL..SA198808-199308

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub62471-12500

main62471-12500-03iAE92..GT198808-199308

SHADOW GRAY,TRIM1#

sub62471-12500

main62471-12500-04iEE90..LHD..5D..(GL,XL)..GEN198808-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub62471-12500

main62471-12500-05iEE90..5D..GEN198808-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub62471-12500

main62471-12500-06iAE92,EE90..XL..SA198908-199308

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub62471-12500

main62471-12530-03iAE92..XL..GEN198705-198908

SHADOW GRAY,TRIM1#

sub62471-12620

main62471-12530-04iAE92..XL..GEN198705-198908

DARK BLUE,TRIM8#

sub62471-12620

main62471-12530-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub62471-12620

main62471-12540-03iAE92..XL..GEN198705-198908

W(SUN ROOF),SHADOW GRAY,TRIM1#

sub62471-12630

main62471-12540-04iAE92..XL..GEN198705-198908

W(SUN ROOF),DARK BLUE,TRIM8#

sub62471-12630

main62471-12540-05iAE92..XL..GEN198705-198908

W(SUN ROOF),DARK BEIGE,TRIM4#

sub62471-12630

main62471-12620-03iAE92..XL..GEN198908-198911

SHADOW GRAY,TRIM1#

main62471-12620-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

main62471-12630-03iAE92..XL..GEN198908-199106

W(SUN ROOF),SHADOW GRAY,TRIM1#

main62471-12630-04iAE92..XL..GEN198908-199106

W(SUN ROOF),DARK BLUE,TRIM8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12460-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62472-12460-04iEE90..LHD..3D..XL198705-199205

DARK BLUE,TRIM8#

main62472-12460-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

main62472-12470-03iAE92..GTI;EE90..LHD..STD198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62472-12470-04iEE90..RHD..STD..GEN198705-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62472-12470-05iEE90..3D198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62472-12480-03iAE92,EE90..5D..(GL,SR5,STD,XL)198705-199308

SHADOW GRAY,TRIM1#

sub62472-12480

main62472-12480-04iEE90..5D..(GCC,GEN)198705-199207

DARK BLUE,TRIM8#

sub62472-12480

main62472-12480-05iAE92,EE90..5D..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub62472-12480

main62472-12480-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub62472-12480

main62472-12490-03iEE90..5D..(STD,XL)..GEN198808-199308

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub62472-12490

main62472-12490-03iAE92..GT198808-199308

SHADOW GRAY,TRIM1#

sub62472-12490

main62472-12490-04iEE90..5D..GEN198808-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub62472-12490

main62472-12490-05iEE90..5D..GEN198808-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub62472-12490

main62472-12490-06iAE92,EE90..XL..SA198908-199308

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub62472-12490

main62472-12520-03iAE92..XL..GEN198705-198908

SHADOW GRAY,TRIM1#

sub62472-12620

main62472-12520-04iAE92..XL..GEN198705-198908

DARK BLUE,TRIM8#

sub62472-12620

main62472-12520-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub62472-12620

main62472-12530-03iAE92..XL..GEN198705-198908

W(SUN ROOF),SHADOW GRAY,TRIM1#

sub62472-12630

main62472-12530-04iAE92..XL..GEN198705-198908

W(SUN ROOF),DARK BLUE,TRIM8#

sub62472-12630

main62472-12530-05iAE92..XL..GEN198705-198908

W(SUN ROOF),DARK BEIGE,TRIM4#

sub62472-12630

main62472-12620-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main62472-12620-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

main62472-12630-03iAE92..XL..GEN198908-199106

W(SUN ROOF),SHADOW GRAY,TRIM1#

main62472-12630-04iAE92..XL..GEN198908-199106

W(SUN ROOF),DARK BLUE,TRIM8#

62476BCAP, ROOF SIDE INNER GARNISH, NO.1

main62476-12010-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main62476-12010-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

main62476-12010-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-1A200-03iEE90..3D..XL198705-198908

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main62510-1A200-04iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT),BLUE,TRIM8#

main62510-1A200-05iEE90..3D..XL198705-198908

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main62510-1A210-03iAE92..XL..GEN198705-198908

SHADOW GRAY,TRIM1#

main62510-1A210-04iAE92..XL..GEN198705-198908

DARK BLUE,TRIM8#

main62510-1A210-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main62510-1A220-03iEE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62510-1A220-04iEE90..LHD..3D..XL198705-199205

BLUE,TRIM8#

main62510-1A220-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

main62510-1A240-03iAE92..GTI198705-198908

W(*PW & *EL),SHADOW GRAY,TRIM1#

main62510-1A300-03iEE90..RHD..3D..XL198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A300-04iEE90..STD..GEN198705-199205

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62510-1A300-05iEE90..3D..STD;EE90..LHD..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62510-1A320-03iAE92..GTI198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A330-03iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A330-04iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62510-1A330-05iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62510-1A470-03iAE92..GTI198908-199205

W(*PW & *EL),SHADOW GRAY,TRIM1#

main62510-1A480-03iAE92..GTI198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A510-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main62510-1A510-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-07041-03iAE92..XL..GEN198705-199106

GRAY,TRIM1#

sub90467-07041

main90467-07041-34iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub90467-07041

main90467-07041-45iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub90467-07041

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-1A180-03iEE90..3D..XL198705-198908

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main62520-1A180-04iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT),BLUE,TRIM8#

main62520-1A180-05iEE90..3D..XL198705-198908

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main62520-1A190-03iAE92..XL..GEN198705-198908

SHADOW GRAY,TRIM1#

main62520-1A190-04iAE92..XL..GEN198705-198908

DARK BLUE,TRIM8#

main62520-1A190-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main62520-1A200-03iEE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62520-1A200-04iEE90..STD..GEN198705-199205

BLUE,TRIM8#

main62520-1A200-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

main62520-1A220-03iAE92..GTI198705-198908

W(*PW & *EL),SHADOW GRAY,TRIM1#

main62520-1A280-03iEE90..RHD..3D..XL198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A280-04iEE90..STD..GEN198705-199205

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62520-1A280-05iEE90..3D..STD;EE90..LHD..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62520-1A300-03iAE92..GTI198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A310-03iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A310-04iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62520-1A310-05iEE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT & 3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62520-1A450-03iAE92..GTI198908-199205

W(*PW & *EL),SHADOW GRAY,TRIM1#

main62520-1A460-03iAE92..GTI198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A490-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main62520-1A490-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

62533BBRACKET, QUARTER TRIM, RH

main62533-12120iAE92..XL..GEN198705-199106

62534BBRACKET, QUARTER TRIM, LH

main62534-12050iAE92..XL..GEN198705-199106

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-12050iAE92..XL..GEN198705-199106

RH

main62562-12030iAE92..XL..GEN198705-199106

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iAE92..XL..GEN198705-198908

BLACK,TRIM1#,4#,8#

sub90467-08056

main90467-08056-01iAE92..XL..GEN198908-199106

BLACK,TRIM1#,8#

sub90467-08056

62594EPOCKET, QUARTER TRIM, RH

main62594-12060-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62594-12060-04iEE90..STD..GEN198705-199205

DARK BLUE,TRIM8#

main62594-12060-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

main62594-12070-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main62594-12070-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

62595EPOCKET, QUARTER TRIM, LH

main62594-12060-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62594-12060-04iEE90..LHD..3D..XL198705-199205

DARK BLUE,TRIM8#

main62594-12060-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

main62595-12020-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main62595-12020-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12160-03iAE92,EE90..5D198705-199308

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iEE90..5D..(GCC,GEN)198705-199207

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iAE92,EE90..5D..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12160-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub67913-12160

main67913-12170-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iEE90..STD..GEN198705-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

sub67913-12170

main67913-12180-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main67913-12180-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

main67913-12180-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-12160-03iAE92,EE90..5D198705-199308

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iEE90..LHD..5D..(GL,XL)198705-199207

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iAE92,EE90..5D..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12160-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

sub67913-12160

main67913-12170-03iAE92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iEE90..STD..GEN198705-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iEE90..3D198705-198908

DARK BEIGE,TRIM4#

sub67913-12170

main67914-12150-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub67914-12150

main67914-12150-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub67914-12150

main67914-12150-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub67914-12150

6777123010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-23010

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9046805060

main90468-05060

9356014010

main93560-14010

27 parts on this diagram · 3 diagrams in section
