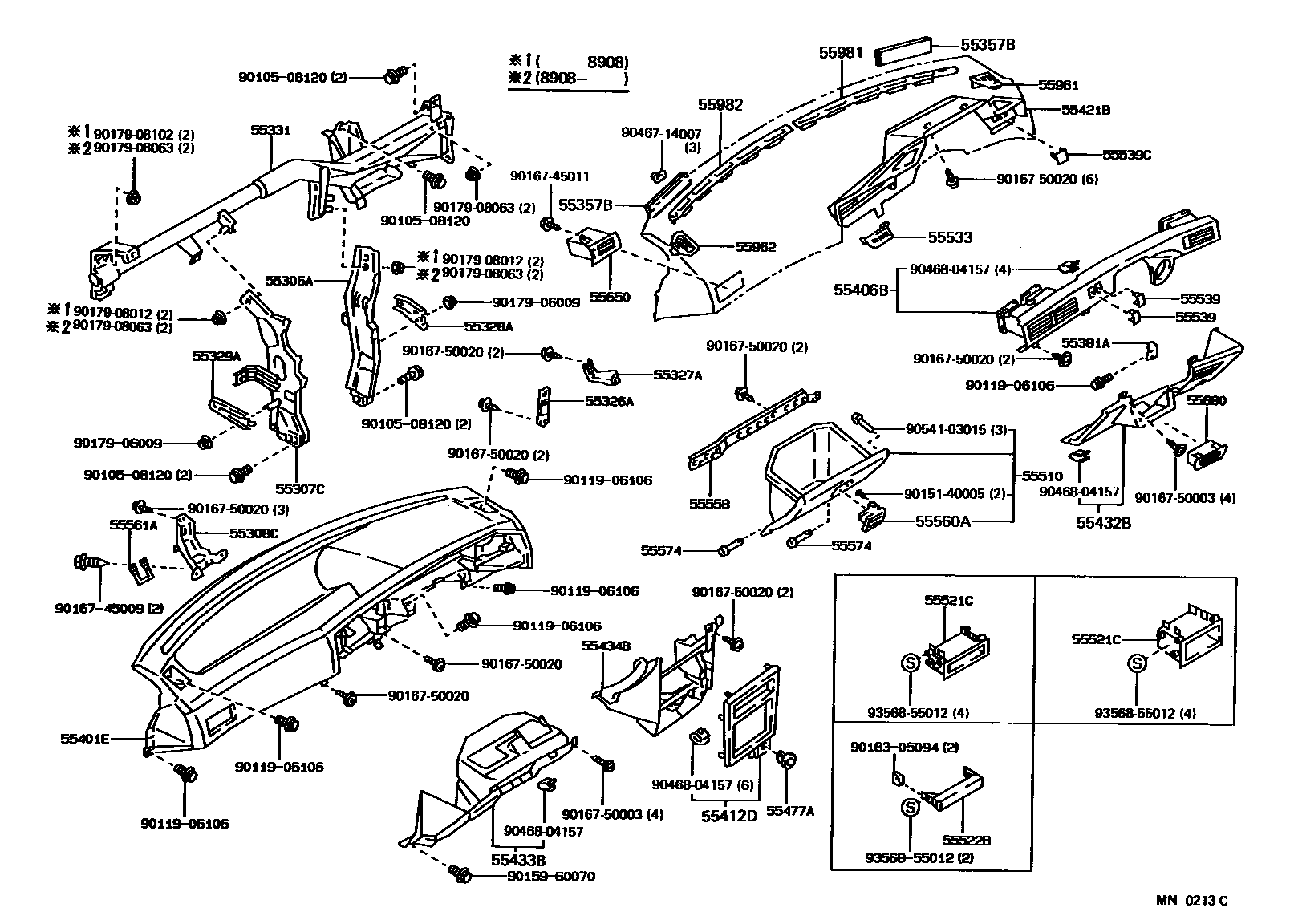

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12060iAE92,EE90..RHD..(3D,5D)198705-199308

main55306-12070iAE92,EE90..LHD..(3D,5D)198705-199207

main55306-12080iAE92..RHD..XL..GEN198705-199106

main55306-12090iAE92..LHD..XL198705-199106

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12110iAE92,EE90..RHD..(3D,5D)198705-199308

main55307-12120iAE92,EE90..LHD..(3D,5D)198705-199207

main55307-12130iAE92..RHD..XL..GEN198705-199106

main55307-12140iAE92..LHD..XL198705-199106

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12150iAE92,EE90..3D,5D198705-199308

main55308-12160iAE92..XL..GEN198705-199106

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-12080iAE92..XL..GEN198705-199106

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-12090iAE92..XL..GEN198705-199106

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-12040×2iAE92,EE90..3D,5D198705-199308

main55328-12050iAE92..XL..GEN198705-199106

55329ABRACKET, INSTRUMENT PANEL METER

main55329-12040iAE92..XL..GEN198705-199106

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12160iAE92,EE90..RHD..(3D,5D)198705-199308

main55330-12170iAE92,EE90..LHD..(3D,5D)198705-199207

main55330-12180iAE92..RHD..XL..GEN198705-199106

main55330-12190iAE92..LHD..XL198705-199106

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010×2iAE92,EE90199007-199308

55381ABRACKET, FINISH PANEL MOUNTING

main55381-12040iAE92..XL..GEN198705-199106

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12230-03iAE92,EE90..RHD..(3D,5D)..GEN198705-199206

SHADOW GRAY,TRIM1#

main55401-12230-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55401-12230-05iEE90..RHD..GEN198705-198908

DARK BEIGE,TRIM4#

main55401-12250-03iAE92,EE90..SA198808-199308

SHADOW GRAY,TRIM1#

main55401-12250-05iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

main55401-12250-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55401-12260-03iAE92,EE90..LHD..(3D,5D)198705-198905

SHADOW GRAY,TRIM1#

main55401-12260-04iEE90..LHD..(GL,XL)198705-198905

DARK BLUE,TRIM8#

main55401-12260-05iEE90..LHD198705-198905

DARK BEIGE,TRIM4#

main55401-12261-03iAE92,EE90..LHD..(3D,5D)198905-199207

SHADOW GRAY,TRIM1#

main55401-12261-04iEE90..LHD198908-199207

DARK BLUE,TRIM8#

main55401-12261-05iEE90..LHD198905-198908

DARK BEIGE,TRIM4#

main55401-12261-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55401-12270-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55401-12270-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55401-12270-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55401-12280-03iAE92..LHD..XL198705-198905

SHADOW GRAY,TRIM1#

main55401-12280-04iAE92..LHD..XL198705-198905

DARK BLUE,TRIM8#

main55401-12280-05iAE92..LHD..XL198705-198905

DARK BEIGE,TRIM4#

main55401-12281-03iAE92..LHD..XL198905-199106

SHADOW GRAY,TRIM1#

main55401-12281-04iAE92..LHD..XL198905-199106

DARK BLUE,TRIM8#

main55401-12281-05iAE92..LHD..XL198905-198908

DARK BEIGE,TRIM4#

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-12290iAE92..RHD..XL..GEN198705-199106

main55406-12300iAE92..LHD..XL198705-199106

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-12410-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55412-12410-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55412-12410-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55412-12420-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55412-12420-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55412-12420-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-12140iAE92..RHD..XL..GEN198705-199106

main55421-12150iAE92..LHD..XL198705-199106

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12260-03iEE90..RHD..GEN199105-199206

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main55432-12260-04iEE90..RHD..GEN199105-199206

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main55432-12260-05iEE90..RHD..GEN198705-198908

NEW ZEALAND SPEC,DARK BEIGE,TRIM4#

main55432-12260-06iAE92..(STD,XL)..SA198909-199308

BROWN,TRIM4#

main55432-12260-13iAE92..RHD..(GT,GTI)198705-199308

SHADOW GRAY,TRIM1#

main55432-12270-03iAE92,EE90..LHD..(3D,5D)..(GL,SR5,STD,XL)198705-199207

SHADOW GRAY,TRIM1#

main55432-12270-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55432-12270-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55432-12270-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55432-12270-13iAE92..LHD..GTI198705-198908

SHADOW GRAY,TRIM1#

main55432-12280-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55432-12280-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55432-12280-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55432-12290-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55432-12290-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55432-12290-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

main55432-12300-03iEE90..RHD198705-199308

SHADOW GRAY,TRIM1#

main55432-12300-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55432-12300-05iEE90..XL..SA;EE90..RHD..GEN198705-198908

DARK BEIGE,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12040-03iEE90..RHD..GEN;AE92..RHD..(GT,GTI)198705-199308

SHADOW GRAY,TRIM1#

main55433-12040-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55433-12040-05iEE90..RHD..GEN198705-198908

DARK BEIGE,TRIM4#

main55433-12040-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55433-12060-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55433-12060-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55433-12060-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55433-12060-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55433-12070-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55433-12070-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55433-12070-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55433-12080-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55433-12080-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55433-12080-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12040-03iEE90..XL..SA;EE90..RHD..GEN;AE92..RHD..(3D,5D)..5F198705-199308

SHADOW GRAY,TRIM1#

main55434-12040-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55434-12040-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55434-12040-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55434-12050-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55434-12050-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55434-12050-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55434-12050-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55434-12060-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55434-12060-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55434-12060-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55434-12070-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55434-12070-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55434-12070-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12080iAE92,EE90..3D,5D198705-199308

main55477-12090iAE92..XL..GEN198705-199106

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12250-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

main55550-12250-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55550-12250-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55550-12250-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55550-12260-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55550-12260-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55550-12260-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55550-12260-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55550-12270-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55550-12270-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55550-12270-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55550-12280-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55550-12280-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55550-12280-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-12120iAE92,EE90..SA198808-198903

W(RADIO)

main55521-16030iAE92..GEN; EE90..GCC,GEN198705-198908

W(1DIN SIZE COVER)

main55521-16040iAE92,EE90198705-198903

W(2DIN SIZE COVER)

55522BCOVER, RADIO TUNER OPENING

main55522-12140iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)198705-199207

main55522-16030iAE92..XL..GEN198705-199106

main55522-20060iAE92,EE90..(STD,XL)..SA198808-199308

55533COVER, AUTO CLOCK HOLE

main55533-12090iAE92,EE90..STD..SA;EE90..RHD..(STD,XL)..GEN198705-199308

main55533-12100iAE92,EE90..LHD..(3D,5D)..(SR5,STD,XL)198705-199207

main55533-12110iAE92..LHD..XL198705-199106

main55533-12120iAE92..RHD..XL..GEN198705-199106

55539COVER, SPARE SWITCH HOLE

main55539-12100iAE92..XL..GEN198705-199106

55539CCOVER, SPARE SWITCH HOLE

main55539-12080iAE92..RHD..(3FC,5F)..XL..GEN198705-199106

main55539-12090iAE92..LHD..XL198705-199106

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-12070iAE92..RHD..XL..GEN198705-199106

main55558-12080iAE92..LHD..XL198705-199106

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iAE92,EE90..RHD198705-199308

SHADOW GRAY,TRIM1#

main55560-16040-05iAE92,EE90..RHD..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55560-16040-14iAE92..RHD..XL..GEN198705-198908

DARK BLUE,TRIM8#

main55560-16040-16iAE92,EE90..(STD,XL)..SA198908-199302

BROWN,TRIM4#

main55560-16050-03iAE92,EE90..LHD198705-199207

SHADOW GRAY,TRIM1#

main55560-16050-05iAE92,EE90..LHD..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55560-16050-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55560-16050-14iAE92,EE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12050iAE92,EE90198705-199308

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAE92,EE90198705-199308

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12140-03iAE92,EE90..RHD..(3D,5D)..GEN198705-199206

SHADOW GRAY,TRIM1#

main55650-12140-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55650-12140-05iEE90..RHD..GEN198705-198908

DARK BEIGE,TRIM4#

main55650-12150-03iAE92,EE90..SA198808-199308

SHADOW GRAY,TRIM1#

main55650-12150-05iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

main55650-12150-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55650-12160-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55650-12160-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55650-12160-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55650-12160-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55650-12180-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55650-12180-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55650-12180-05iAE92..RHD..XL..GEN198705-198905

DARK BEIGE,TRIM4#

main55650-12190-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55650-12190-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55650-12190-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-05iAE92,EE90..(GL,STD,XL)..(GCC,GEN)198705-198908

DARK BEIGE,TRIM4#

main55680-14030-13iAE92,EE90..GCC,GEN198705-198908

SHADOW GRAY,TRIM1#

main55680-14030-14iAE92..XL;EE90..LHD..(GL,XL)198705-198807

DARK BLUE,TRIM8#

main55680-14030-E0iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

main55680-14030-J0iAE92..XL..GEN;EE90..LHD..(GL,XL)198807-198908

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12140-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

main55961-12140-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55961-12140-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55961-12150-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55961-12150-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55961-12150-05iEE90..LHD..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55961-12150-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55961-12160-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55961-12160-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55961-12160-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55961-12170-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55961-12170-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55961-12170-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12120-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

main55962-12120-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55962-12120-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55962-12130-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55962-12130-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55962-12130-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55962-12130-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main55962-12140-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55962-12140-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55962-12140-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55962-12150-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55962-12150-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55962-12150-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12010-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55981-12010-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55981-12010-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55981-12020-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55981-12020-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55981-12020-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

main55981-12030-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

main55981-12030-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55981-12030-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55981-12030-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55981-12040-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55981-12040-04iEE90..LHD198908-199207

DARK BLUE,TRIM8#

main55981-12040-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55981-12040-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12010-03iAE92..RHD..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main55982-12010-04iAE92..RHD..XL..GEN198705-199106

DARK BLUE,TRIM8#

main55982-12010-05iAE92..RHD..XL..GEN198705-198908

DARK BEIGE,TRIM4#

main55982-12020-03iAE92..LHD..XL198705-199106

SHADOW GRAY,TRIM1#

main55982-12020-04iAE92..LHD..XL198705-199106

DARK BLUE,TRIM8#

main55982-12020-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

main55982-12030-03iAE92,EE90..RHD..(3D,5D)198705-199308

SHADOW GRAY,TRIM1#

main55982-12030-04iEE90..RHD..GEN198908-199206

DARK BLUE,TRIM8#

main55982-12030-05iAE92,EE90..RHD..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main55982-12030-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main55982-12040-03iAE92,EE90..LHD..(3D,5D)198705-199207

SHADOW GRAY,TRIM1#

main55982-12040-04iEE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55982-12040-05iEE90..LHD198705-198908

DARK BEIGE,TRIM4#

main55982-12040-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9015960070

main90159-60070

9016745009

main90167-45009

9016745011

main90167-45011

9016750003

main90167-50003

9016750020

main90167-50020

9017906009

main90179-06009

9017908012

main90179-08012

9017908063

main90179-08063

9017908102

main90179-08102

9018305094

main90183-05094

9046714007

main90467-14007

9046804157

main90468-04157

9054103015

main90541-03015

9356855012

main93568-55012

51 parts on this diagram · 4 diagrams in section
