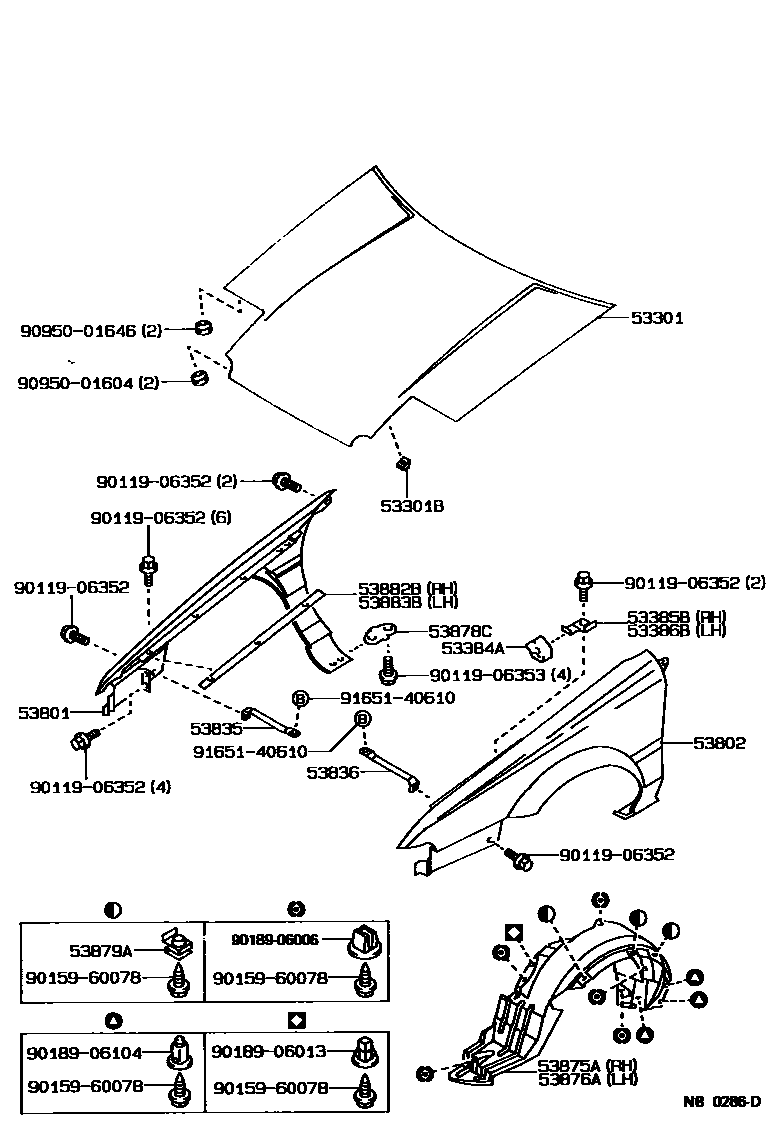

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-12560iAE92,EE90..3D,5D198705-198706

NEW ZEALAND SPEC OR CKD COUNTRIES SPEC

sub53301-12561

sub53183-12050

sub53184-12040

main53301-12560iAE92,EE90..3D,5D198705-198706

CKD COUNTRIES SPEC

sub53301-12561

sub53183-12050

sub53184-12040

main53301-12561iAE92,EE90..(3D,5D)..(GCC,GEN)198706-199207

main53301-12620iAE92..XL..GEN198705-199106

53301BCUSHION, HOOD BUMPER

main53388-12020iAE92..XL..GEN198705-199106

53384ABUMPER, FENDER TO HOOD

main53384-12040iAE92,EE90..3D,5D198705-199308

sub53384-12050

main53384-14010iAE92..XL..GEN198705-199106

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-12010iAE92..XL..GEN198705-199106

main53385-12020iAE92,EE90..3D,5D198705-199308

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-12010iAE92..XL..GEN198705-199106

main53386-12020iAE92,EE90..3D,5D198705-199308

53801FENDER SUB-ASSY, FRONT RH

main53801-1E410iAE92,EE90..(3D,5D)..(GCC,GEN)198705-199207

main53801-1E550iAE92..XL..GEN198705-198905

sub53801-1E690

main53801-1E690iAE92..XL..GEN198905-199106

53802FENDER SUB-ASSY, FRONT LH

main53802-1E290iAE92,EE90..(3D,5D)..(GCC,GEN)198705-199207

main53802-1E430iAE92..XL..GEN198705-198905

sub53802-1E570

main53802-1E570iAE92..XL..GEN198905-199106

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-12050iAE92,EE90..3D,5D198705-199308

main53835-12060iAE92..XL..GEN198705-199106

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53835-12050iAE92,EE90..3D,5D198705-199308

main53835-12060iAE92..XL..GEN198705-199106

53875ALINER, FRONT FENDER, RH

main53875-12150iAE92,EE90..3D,5D198705-199308

main53875-12170iAE92..XL..GEN198705-199106

main53875-12180iAE92,EE90..GL,GTI198908-199206

FOR FRONT BUMPER TYPE G

53876ALINER, FRONT FENDER, LH

main53876-12140iAE92,EE90..3D,5D198705-199308

main53876-12160iAE92..XL..GEN198705-199106

main53876-12170iEE90..RHD..STD..GEN198908-199206

FOR FRONT BUMPER TYPE G

53878CSPACER, FRONT FENDER

main53878-20030iAE92,EE90198705-199308

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE92,EE90198705-199308

53882BSEAL, FRONT FENDER, RH

main53882-12080iAE92,EE90198705-199308

53883BSEAL, FRONT FENDER, LH

main53882-12080iAE92,EE90198705-199308

9011906352

main90119-06352

9011906353

main90119-06353

9015960078

main90159-60078

9018906006

main90189-06006

9018906013

main90189-06013

9018906104

main90189-06104

9095001604

main90950-01604

9095001646

main90950-01646

9165140610

main91651-40610

24 parts on this diagram · 2 diagrams in section
