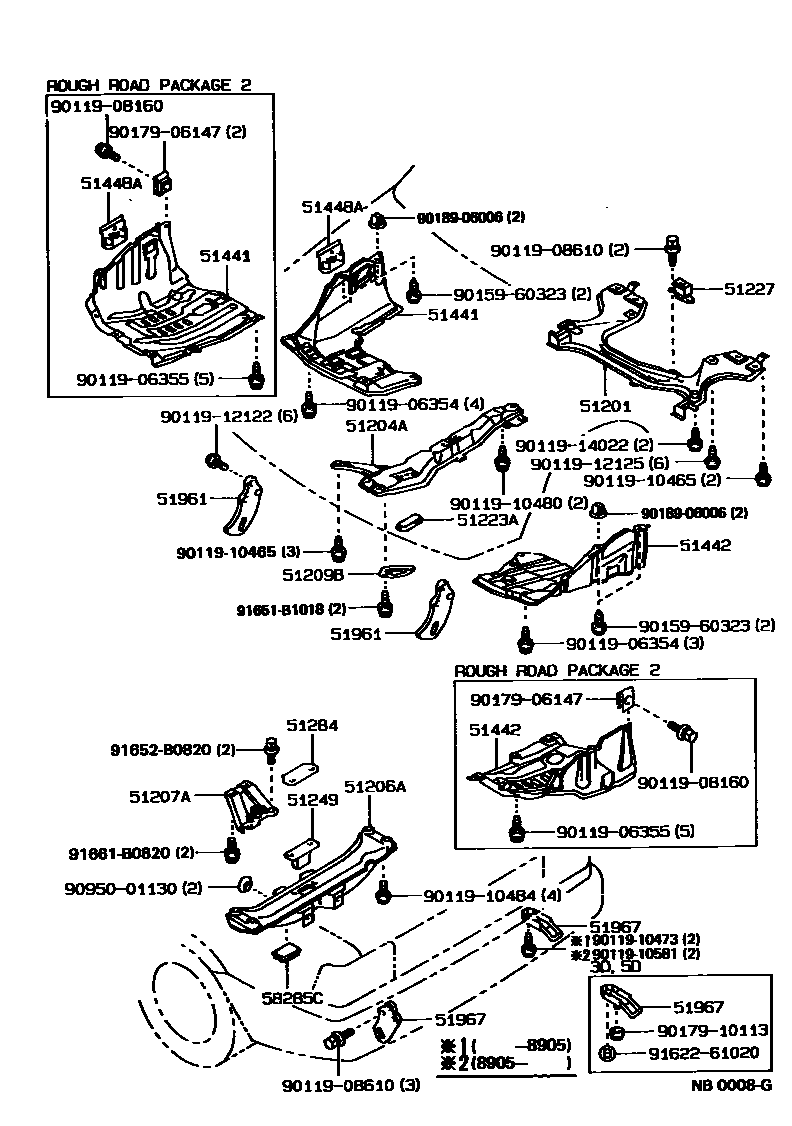

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12280iAE92,EE90198705-198710

main51201-12281iAE92,EE90198710-198711

main51201-12282iAE92,EE90198711-199108

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12060iAE92,EE90198705-199108

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12030iAE92,EE90198705-199308

51207AMEMBER SUB-ASSY, DIFFERENTIAL SUPPORT

main51207-12010iAE92..GT,GTI198705-199308

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE92,EE90198705-199108

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAE92,EE90198705-199108

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12030iAE92,EE90198705-198811

main51227-12031iAE92,EE90198811-199106

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12020iAE92,EE90198705-198712

main51249-12030iAE92,EE90198712-198811

main51249-12040iAE92,EE90198811-199308

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-12010iEE90..GEN198705-199206

51441COVER, ENGINE UNDER, NO.1

main51408-12020iEE90..GEN198705-198804

ROUGH ROAD PACKAGE 2

main51408-12040iEE90..GEN198804-199206

ROUGH ROAD PACKAGE 2

main51441-12120iAE92,EE90198705-199308

51442COVER, ENGINE UNDER, NO.2

main51409-12010iEE90..GEN198705-199206

ROUGH ROAD PACKAGE 2

main51442-12050iAE92,EE90..MTM198705-199308

main51442-12060iAE92,EE90..ATM198705-199308

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE92,EE90198705-199308

51961HOOK, NO.1

main51963-12180×2iAE92,EE90198705-199308

51967HOOK, TRANSPORT, REAR

main51095-12040iAE92..XL..GEN198705-199106

RH

main51095-12050×2iAE92,EE90..3D,5D198705-199308

main51095-12070iAE92,EE90..GL,GTI; EE90..RHD..XL..GEN198908-199206

RH

main51968-12020iAE92..XL..GEN198705-198905

LH

main51968-12080iAE92,EE90..GL,GTI; EE90..RHD..XL..GEN198908-199206

LH

main51968-12090iAE92..XL..GEN198908-199106

LH

58285CCOVER, REAR FLOOR HOLE

main58285-12020×2iAE92,EE90198705-199308

9011906354

main90119-06354

9011906355

main90119-06355

9011908160

main90119-08160

9011908610

main90119-08610

9011910465

main90119-10465

9011910473

main90119-10473

9011910480

main90119-10480

9011910484

main90119-10484

9011910581

main90119-10581

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9017906147

main90179-06147

9017910113

main90179-10113

9018906006

main90189-06006

9095001130

main90950-01130

9162261020

main91622-61020

91651B1018

main91651-B1018

91652B0820

main91652-B0820

91661B0820

main91661-B0820

36 parts on this diagram · 1 diagram in section
