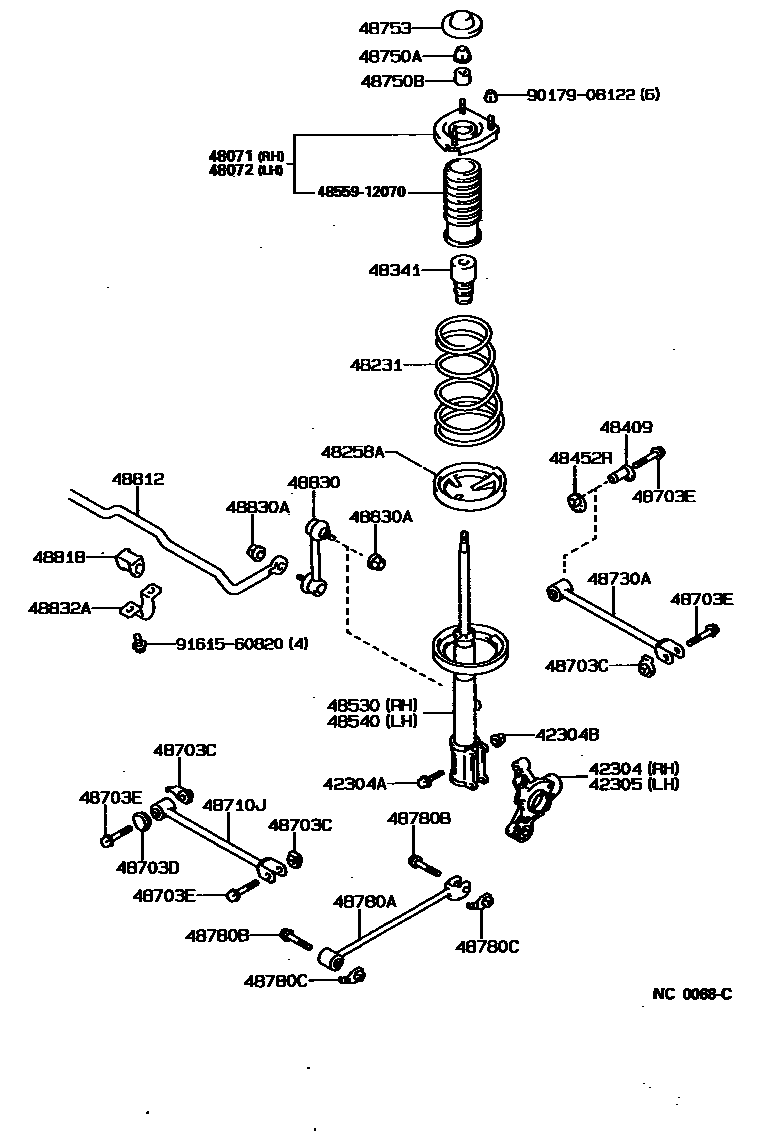

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
sub90105-12236
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
sub48072-12080
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
sub48071-12080
48231SPRING, COIL, REAR
NEW ZAELAND SPEC OR W(STABILIZER BAR)
W(STABILIZER BAR)
W(STABILIZER BAR)
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
ROUGH ROAD PACKAGE 1
ROUGH ROAD PACKAGE 1
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
NEW ZEALAND SPEC
sub48231-1A060
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
NEW ZEALAND SPEC OR ROUGH ROAD PACKAGE OR W(STABILIZER BAR)
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2 OR NEW ZEALAND SPEC OR W(STABILIZER BAR)
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2 OR W(STABILIZER BAR)
ROUGH ROAD PACKAGE 1
ROUGH ROAD PACKAGE OR W(STABILIZER BAR)
ROUGH ROAD PACKAGE
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-12160
MARK 48530-12180,NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48530-12520
sub48530-12430
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE & W(STABILIZER BAR);ROUGH ROAD PACKAGE
MARK 48530-12430
MARK 48530-12520,W(STABILIZER BAR)
sub48530-12410
MARK 48530-12520,NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48530-12410
NEW ZAELAND SPEC OR W(STABILIZER BAR)
W(STABILIZER BAR)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-12100
MARK 48540-12120,NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48540-12460
sub48540-12370
ROUGH ROAD PACKAGE & W(STABILIZER BAR);ROUGH ROAD PACKAGE
main48540-12261iEE90..5F..GCC;EE90..LHD..GEN;EE90..(3FC,4F)..XL;AE92..(SR5,XL)..(GCC,GEN)198908-199207
ROUGH ROAD PACKAGE
MARK 48540-12370
MARK 48540-12460,NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48540-12350
48703CNUT(FOR REAR SUSPENSION ARM)
BODY SIDE
CARRIER SIDE
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*12-1.25PX86-30
*12-1.25PX71-34
*12-1.25PX86-26
48710JARM ASSY, REAR SUSPENSION, NO.1
48730AARM ASSY, REAR SUSPENSION, NO.2
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
sub90387-15027
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
sub48780-32060
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
48812BAR, STABILIZER, REAR
NEW ZEALAND SPEC
48818BUSH, STABILIZER, REAR
NEW ZEALAND SPEC
48830LINK ASSY, REAR STABILIZER
NEW ZEALAND SPEC
48830ANUT(FOR REAR STABILIZER LINK)
NEW ZEALAND SPEC
NEW ZEALAND SPEC
48832ABRACKET, REAR STABILIZER BAR, NO.1
NEW ZEALAND SPEC
4855912070COVER, SHOCK ABSORBER, DUST
main48559-12070
9017908122
main90179-08122
9161560820
main91615-60820
32 parts on this diagram · 1 diagram in section
