FRONT SPRING & SHOCK ABSORBER

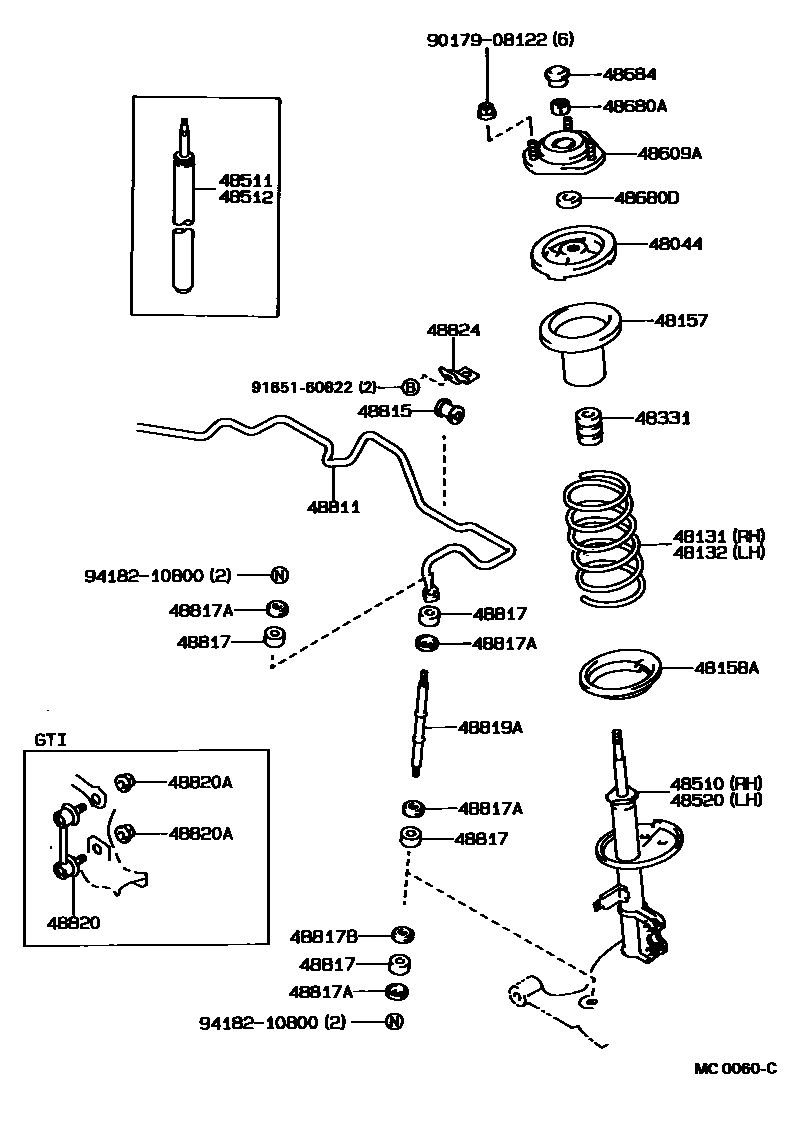

Parts diagram
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
main48044-12090i198705-199308
48131SPRING, FRONT COIL, RH
main48131-1E720i198808-199308
W(AIR CONDITIONER)
main48131-1E720i198908-199207
W(AIR CONDITIONER OR COOLER)
main48131-1E720i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1E720i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1E740i198908-199207
W(AIR CONDITIONER OR COOLER)
main48131-1E740i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1E740i198808-199308
W(AIR CONDITIONER)
main48131-1E810i198705-198908
NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48131-1H060
main48131-1E810i198705-199206
W(STABILIZER BAR)
sub48131-1H060
main48131-1E810i198705-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER)
sub48131-1H060
main48131-1E840i198705-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER)
main48131-1E840i198712-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER);NEW ZEALAND SPEC& W(AIR CONDITIONER OR COOLER)
main48131-1E840i198705-198908
NEW ZAELAND SPEC OR W(STABILIZER BAR)
main48131-1E840i198705-198712
NEW ZEALAND SPEC & W(AIR CONDITIONER OR COOLER)
main48131-1E840i198908-199206
W(STABILIZER BAR)
main48131-1E840i198908-199206
W(STABILIZER BAR & AIR CONDITIONER)
main48131-1E860i198705-198908
W(AIR CONDITIONER)
main48131-1E860i198705-198908
main48131-1E860i198712-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER);NEW ZEALAND SPEC& W(AIR CONDITIONER OR COOLER)
main48131-1E860i198705-198712
NEW ZEALAND SPEC & W(AIR CONDITIONER OR COOLER)
main48131-1E860i198908-199206
W(STABILIZER BAR & AIR CONDITIONER)
main48131-1E880i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1E880i198705-198908
W(AIR CONDITIONER)
main48131-1E880i198908-199308
main48131-1E890i198705-199308
W(AIR CONDITIONER)
main48131-1E890i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H240i198908-199205
main48131-1H260i198908-199205
W(AIR CONDITIONER OR COOLER)
main48131-1H370i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1H370i198705-199207
W(AIR CONDITIONER OR COOLER)
main48131-1H370i198808-199308
W(AIR CONDITIONER)
main48131-1H370i198808-199308
main48131-1H370i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1H390i198705-198908
W(STABILIZER BAR)
main48131-1H420i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H440i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H440i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H440i198908-199206
main48131-1H460i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1H460i198705-199206
W(AIR CONDITIONER OR COOLER)
main48131-1H460i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1H460i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H460i198908-199308
48132SPRING, FRONT COIL, LH
main48131-1E720i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1E720i198908-199207
W(AIR CONDITIONER & COOIER)
main48131-1E720i198708-198908
W(AIR CONDITIONER OR COOLER)
main48131-1E720i198808-199308
W(AIR CONDITIONER)
main48131-1E720i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1E740i199008-199207
main48131-1E740i198908-199207
W(AIR CONDITIONER & COOIER)
main48131-1E740i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1E760i199008-199207
W(AIR CONDITIONER & COOIER)
main48131-1E810i198712-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER);NEW ZEALAND SPEC& W(AIR CONDITIONER OR COOLER)
sub48131-1H060
main48131-1E810i198705-199206
W(STABILIZER BAR)
sub48131-1H060
main48131-1E810i198705-198712
NEW ZEALAND SPEC & W(AIR CONDITIONER OR COOLER)
sub48131-1H060
main48131-1E810i198705-198908
NEW ZAELAND SPEC OR W(STABILIZER BAR)
sub48131-1H060
main48131-1E840i198705-199206
W(STABILIZER BAR)
main48131-1E840i198705-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER)
main48131-1E840i198705-198712
NEW ZEALAND SPEC & W(AIR CONDITIONER OR COOLER)
main48131-1E840i198712-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER);NEW ZEALAND SPEC& W(AIR CONDITIONER OR COOLER)
main48131-1E840i198908-199206
W(STABILIZER BAR & AIR CONDITIONER)
main48131-1E860i198705-198908
W(AIR CONDITIONER)
main48131-1E860i198705-198908
W(STABILIZER BAR & AIR CONDITIONER) OR W(STABILIZER BAR & COOLER)
main48131-1E860i198705-199308
main48131-1E860i198908-199206
W(STABILIZER BAR & AIR CONDITIONER)
main48131-1E880i198705-199308
W(AIR CONDITIONER)
main48131-1E880i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1E890i198705-198908
W(AIR CONDITIONER)
main48131-1E890i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H230i198908-199205
main48131-1H240i198908-199205
W(AIR CONDITIONER & COOIER)
main48131-1H370i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H370i198705-198908
ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)
main48131-1H370i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1H370i198708-199308
main48131-1H370i198908-199206
W(AIR CONDITIONER & COOIER)
main48131-1H370i198808-199308
W(AIR CONDITIONER)
main48131-1H390i198705-198908
NEW ZAELAND SPEC OR W(STABILIZER BAR)
main48131-1H420i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H440i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H440i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H440i198908-199308
main48131-1H460i198908-199206
W(AIR CONDITIONER & COOIER)
main48131-1H460i198705-198908
ROUGH ROAD PACKAGE 1 & W(STABILIZER BAR)
main48131-1H460i198705-198908
ROUGH ROAD PACKAGE 1
main48131-1H460i198705-198908
W(AIR CONDITIONER OR COOLER)
main48131-1H460i198808-199308
W(AIR CONDITIONER)
main48131-1H460i198908-199308
48157INSULATOR, FRONT COIL SPRING, UPPER
main48157-12060i198705-199308
48158AINSULATOR, FRONT COIL SPRING, LOWER
main48158-12030i198705-199308
48331BUMPER, FRONT SPRING, NO.1
main48331-12100i198705-199108
sub48331-12120
main48331-12100i198808-198905
NEW ZEALAND SPEC OR CKD SPEC
sub48331-12120
main48331-12120i199108-199207
main48331-12130i198705-199206
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
main48331-12130i198705-199207
ROUGH ROAD PACKAGE 1
main48331-12130i199103-199108
ROUGH ROAD PACKAGE 2
main48331-12130i198908-199308
main48331-20040i199103-199108
ROUGH ROAD PACKAGE 1
sub48331-12130
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-12520i198705-199207
sub48510-1A260
main48510-12560i198705-198908
sub48510-12590
main48510-12600i198705-199206
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
sub48510-12601
main48510-12600i198705-199207
ROUGH ROAD PACKAGE 1
sub48510-12601
main48510-12720i198908-199205
sub48510-12721
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
main48511-12310i198705-199207
*90
sub48511-12320
main48511-12330i198705-198908
*90
sub48511-12410
main48511-12350i198705-199207
*90,ROUGH ROAD PACKAGE 1
main48511-12350i198705-199206
*90,ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
main48511-12410i198908-199205
*90
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
main48511-12310i198705-199207
*90
sub48511-12320
main48511-12330i198705-198908
*90
sub48511-12410
main48511-12350i198705-199207
*90,ROUGH ROAD PACKAGE 1
main48511-12350i198705-199206
*90,ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
main48511-12410i198908-199205
*90
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-12390i198705-199207
sub48520-1A130
main48520-12430i198705-198908
sub48520-12460
main48520-12470i198705-199207
ROUGH ROAD PACKAGE 1
sub48520-12471
main48520-12470i198705-199206
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
sub48520-12471
main48520-12590i198908-199205
sub48520-12591
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
main48609-12190i198705-198808
sub48609-12191
main48609-12191i198808-198905
sub48609-12192
main48609-12192i198905-199308
main48609-12210i198706-198905
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2 OR NEW ZEALAND SPEC OR CKD SPEC
sub48609-12211
main48609-12210i198705-198706
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2 OR NEW ZEALAND SPEC
sub48609-12211
main48609-12210i198705-198808
sub48609-12211
main48609-12210i198705-198905
ROUGH ROAD PACKAGE 1
sub48609-12211
main48609-12210i198705-198905
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
sub48609-12211
main48609-12211i198905-198908
ROUGH ROAD PACKAGE 1
main48609-12211i198905-198908
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2
main48609-12211i198905-198908
ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2 OR NEW ZEALAND SPEC OR CKD SPEC
main48609-12211i198908-199206
ROUGH ROAD PACKAGE 2
main48609-12230i198808-198905
sub48609-12231
main48609-12231i198908-199207
ROUGH ROAD PACKAGE 1
main48609-12231i198908-199206
ROUGH ROAD PACKAGE 1 & NEW ZEALAND SPEC
main48609-12231i199103-199106
ROUGH ROAD PACKAGE 1 & CKD SPEC
main48609-12231i199103-199106
NEW ZEALAND SPEC;ROUGH ROAD PACKAGE 1 & CKD SPEC
main48609-12231i198905-199308
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94182-11400i198705-199308
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
main90303-22049i198705-199308
48684COVER, BEARING DUST
main48684-32010i198705-199308
48811BAR, STABILIZER, FRONT
main48811-12490i198908-199206
NEW ZEALAND SPEC
main48811-12510i198705-198908
main48811-12530i198908-199206
main48811-12530i198705-198908
NEW ZEALAND SPEC
main48811-12660i198908-199205
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-12140i198705-199308
main48815-12140i198908-199206
NEW ZEALAND SPEC
main48815-12160i198705-198908
NEW ZEALAND SPEC
main48815-12160i198908-199206
main48815-12180i198908-199205
48817CUSHION, FRONT STABILIZER
main48817-30020i198705-199206
NEW ZEALAND SPEC
main48817-30020i199110-199308
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02032i198705-199206
NEW ZEALAND SPEC
main90948-02032i199110-199308
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-02015i198705-199206
NEW ZEALAND SPEC
main90948-02015i199110-199308
48819ABOLT, FRONT STABILIZER
main48819-20030i198705-199206
NEW ZEALAND SPEC
main48819-20030i199110-199308
48820LINK ASSY, FRONT STABILIZER
main48820-20010i198705-199205
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-10054i198705-199106
main90179-10183i199106-199205
48824BRACKET, STABILIZER, FRONT
main48824-12090i198705-199206
NEW ZEALAND SPEC
main48824-12090i199110-199308
9017908122
main90179-08122
9165160822
main91651-60822
9418210800
main94182-10800

26 parts on this diagram · 1 diagram in section
