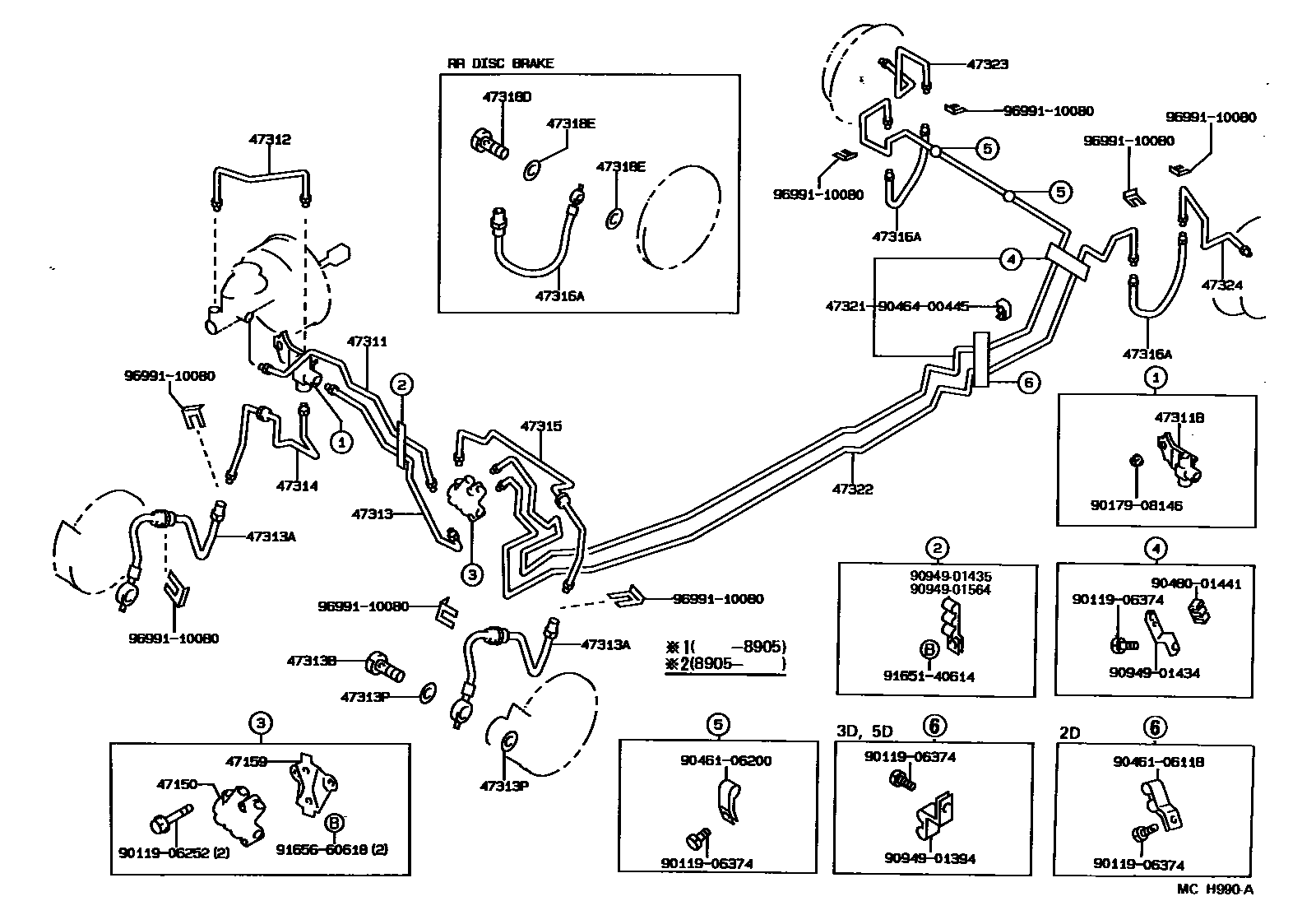

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12060iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198705-199207

sub47150-12270

main47150-12070iAE92..GTI198705-199205

main47150-20140iAE92,EE90..GCC,SA198708-199308

47159BRACKET, PROPORTIONING VALVE

main47159-12050iAE92,EE90..RHD198705-199308

47311TUBE, FRONT BRAKE, NO.1

main47311-12380iAE92,EE90..RHD..(GL,GTI,STD,XL)198705-198905

main47311-12390iAE92,EE90..LHD198705-199207

main47311-12430iAE92,EE90..RHD198905-199308

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAE92..LHD..GTI198705-198908

main90413-10164iAE92,EE90..RHD..(GL,STD,XL)198710-199308

main90413-10193iAE92..RHD..GTI198705-198711

main90413-10219iAE92,EE90..LHD..(GL,SR5,STD,XL)198705-199207

main90413-10221iAE92..RHD..(GT,GTI)198711-199308

47312TUBE, FRONT BRAKE, NO.2

main47312-12150iAE92..RHD..GTI198705-198711

main47312-12260iAE92..LHD..GTI198705-199207

main47312-12270iAE92,EE90..RHD..(GL,STD,XL)198705-199308

47313TUBE, FRONT BRAKE, NO.3

main47313-12180iAE92,EE90..RHD..(GL,GTI,STD,XL)198705-198905

main47313-12190iAE92,EE90..LHD198705-199207

main47313-12240iAE92,EE90..RHD198905-199308

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532iAE92,EE90..GL,GTI,STD,XL198705-199308

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE92,EE90..GL,GTI,STD,XL198705-199308

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE92,EE90..GL,GTI,STD,XL198705-199308

47314TUBE, FRONT BRAKE, NO.4

main47314-12260iAE92,EE90..RHD..(GL,GTI,STD,XL)198705-199308

main47314-12270iAE92,EE90..LHD198705-199207

47315TUBE, FRONT BRAKE, NO.5

main47315-12400iAE92,EE90..RHD198705-199308

main47315-12410iAE92,EE90..LHD198705-198908

main47315-12440iAE92,EE90..LHD198908-199207

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02533iEE90;AE92..RHD..XL198705-199308

main90947-02541iAE92..GT,GTI198705-199308

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iAE92..LHD..GTI198705-199308

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iAE92..LHD..GTI198705-199308

47321TUBE, REAR BRAKE, NO.1

main47321-12030iAE92,EE90..RHD198705-199308

main47321-12050iAE92,EE90..LHD198705-199207

47322TUBE, REAR BRAKE, NO.2

main47322-12180iAE92,EE90..RHD..(GL,STD,XL)198705-199308

main47322-12200iAE92,EE90..LHD198705-199207

47323TUBE, REAR BRAKE, NO.3

main47323-12210iAE92,EE90..GL,GT,SR5,STD,XL198705-199308

47324TUBE, REAR BRAKE, NO.4

main47324-12170iEE90;AE92..RHD..XL198705-199308

9011906252

main90119-06252

9011906374

main90119-06374

9017908146

main90179-08146

9046106118

main90461-06118

9046106200

main90461-06200

9046400445

main90464-00445

9048001441

main90480-01441

9094901394

main90949-01394

9094901434

main90949-01434

9094901435

main90949-01435

9094901564

main90949-01564

9165140614

main91651-40614

9165660618

main91656-60618

9699110080

main96991-10080

32 parts on this diagram · 2 diagrams in section
