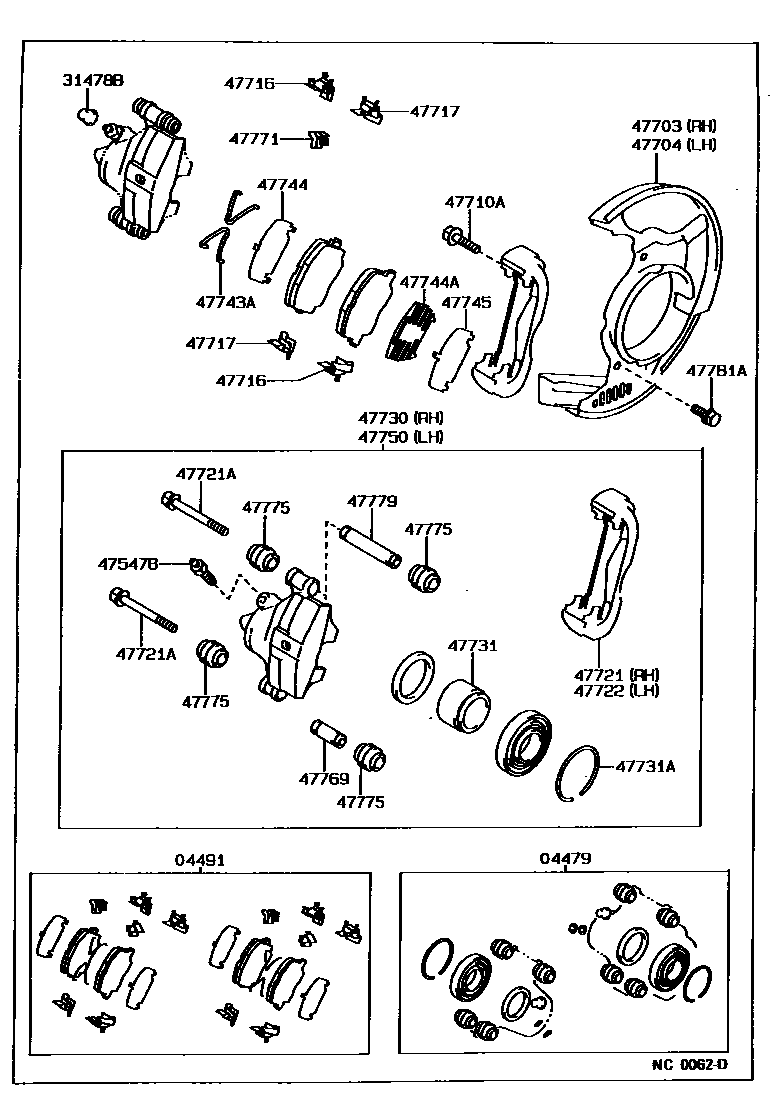

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE92..GT;AE92,EE90..GCC,GEN198705-198811

main04479-12140iAE92..GT,GTI199203-199308

04491PAD KIT, DISC BRAKE, FRONT

main04491-12290iAE92,EE90..GL,STD,XL198705-198802

main04491-12291iAE92,EE90..(GL,STD,XL)..(GCC,GEN)198802-198812

main04491-12292iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198812-199106

main04491-12300iAE92..GTI198705-198812

main04491-12301iAE92..GTI198812-198908

main04491-12330iAE92..GT198808-198812

main04491-12331iAE92..GT198812-198904

main04491-12431iAE92,EE90..GCC199201-199207

sub04491-12432

main04491-12440iAE92..GT199203-199308

main04491-12480iEE90..GEN199106-199206

main04491-12490iAE92..GT198904-199009

main04491-12491iAE92..GT199009-199203

main04491-12510iAE92..GTI198908-199205

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE92,EE90198705-198811

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE92..GT;AE92,EE90..GCC,GEN198908-199308

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-12120iAE92,EE90198705-198901

main47703-12121iAE92,EE90198901-198903

main47703-32040iAE92..GT,GTI199203-199308

main47781-12150iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198908-199207

sub47781-20290

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-12120iAE92,EE90198705-198901

main47704-12121iAE92,EE90198901-198903

main47704-32040iAE92..GT,GTI199203-199308

main47782-12150iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198908-199207

sub47782-20290

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE92,EE90198705-198903

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010×4iAE92..GT;AE92,EE90..GCC,GEN198705-198812

main47716-32031×4iAE92..GT;AE92,EE90..GCC,GEN198812-199308

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010×4iAE92..GT;AE92,EE90..GCC,GEN198705-198812

main47717-32031×4iAE92..GT;AE92,EE90..GCC,GEN198812-199308

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12110iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198705-199106

main47721-12120iAE92..GT,SR5;EE90..GCC,GEN199201-199203

main47721-12130iAE92..GTI198908-199203

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE92..GT;AE92,EE90..GCC,GEN198705-199201

*9-1.25PX71-25

main90119-09004×2iAE92..GT;AE92,EE90..GCC,GEN198705-199308

*9-1.25PX91-25

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12110iAE92,EE90..GCC199106-199201

main47721-12120iAE92..GTI198811-198908

main47721-12130iAE92..GT,GTI199203-199308

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12290iAE92,EE90..GCC199106-199201

main47730-12310iAE92..GT199101-199106

main47730-12320iAE92..GTI198901-199101

main47730-12350iAE92..GT198808-198901

47731PISTON, FRONT DISC BRAKE

main47731-12130×2iAE92..GTI198908-199203

main47731-12150×2iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)199203-199207

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE92,EE90..GL,STD,XL198705-198708

main90522-64003×2iAE92..GTI198908-199203

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070×4iAE92..GT199012-199106

main47743-32010×4iAE92..GT,GTI198705-198908

main47743-32020×4iAE92..GTI198908-199203

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011×2iAE92..GT;AE92,EE90..GCC,GEN198705-198908

main47744-32010×2iAE92,EE90..GCC,GEN198908-199012

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-12020×2iAE92..GT198808-198812

main47742-32040×2iAE92..GT;AE92,EE90..(GL,STD,XL)..(GCC,GEN)198902-198908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-16011×2iAE92..GTI198902-198908

main47745-12050×2iAE92..GT198808-198812

main47745-32040×2iAE92..GT;AE92,EE90..(GL,STD,XL)..(GCC,GEN)198902-198908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12290iAE92,EE90..GCC199106-199201

main47750-12310iAE92..GTI198901-198908

main47750-12320iAE92..GT,GTI199203-199308

main47750-12350iAE92..GT198901-199101

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE92,EE90..GL,STD,XL198705-198708

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAE92..GT198808-199308

main47771-32010×2iAE92,EE90..GCC,GEN198705-199207

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iAE92,EE90198705-199308

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE92..GT;AE92,EE90..GCC,GEN198708-199308

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE92,EE90198705-198903

25 parts on this diagram · 2 diagrams in section
