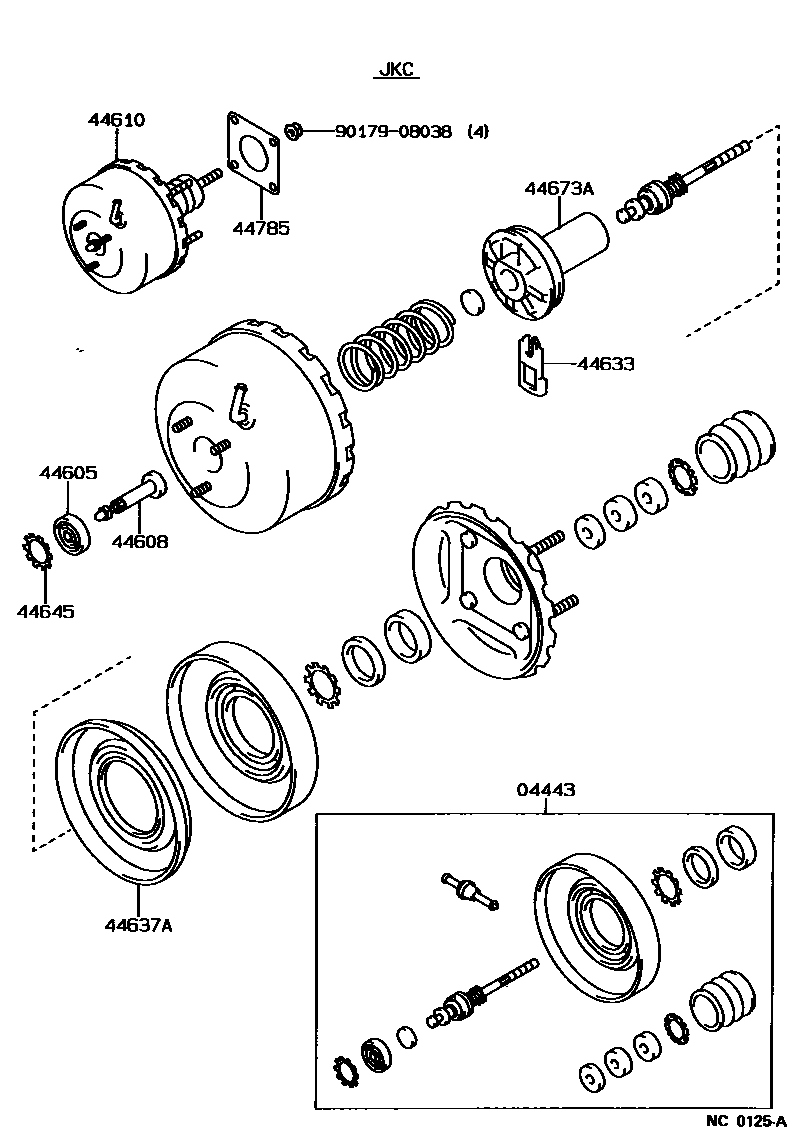

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-12480iAE92..RHD..XL..GEN198705-198911

main04443-12500iAE92..RHD..GTI198705-199205

main04443-12510iAE92..(STD,XL)..SA198808-199308

main04443-12530iAE92..GT198808-199308

main04443-12540iEE90..RHD..GEN198911-199206

main04443-12550iAE92..RHD..XL..GEN198911-199106

main04443-12570iEE90..GCC,GEN;AE92..LHD..(SR5,XL)198705-198911

main04443-12600iEE90..SA198808-199308

main04443-12630iAE92..LHD..GTI198705-198908

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iAE92,EE90..GCC,GEN198705-198911

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-32020iAE92,EE90..GCC,GEN198705-198911

44610BOOSTER ASSY, BRAKE

main44610-12630iAE92,EE90..(STD,XL)..SA198808-199308

main44610-12640iAE92..GT198808-199308

main44610-12670iAE92,EE90..RHD..(GL,STD,XL)..GEN198705-198911

main44610-12680iAE92..RHD..GTI198705-199205

main44610-12690iAE92,EE90..LHD..(GL,SR5,STD,XL)198705-199207

main44610-12700iAE92..LHD..GTI198705-198908

main44610-12720iAE92,EE90..RHD..(GL,STD,XL)..GEN198911-199206

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iAE92..GTI;AE92,EE90..LHD198911-199207

44637APLATE, BOOSTER DIAPHRAGM

main44637-32020iAE92,EE90..LHD198911-199207

main44637-32040iAE92..GTI198705-199205

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iAE92..GTI;AE92,EE90..LHD198911-199207

44673ABODY, BOOSTER VALVE

main44673-32020iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198705-198911

main44673-32040iAE92..GTI198705-199205

44785GASKET, BRAKE BOOSTER

main44785-32010iAE92,EE90198705-199308

9017908038

main90179-08038

10 parts on this diagram · 4 diagrams in section
