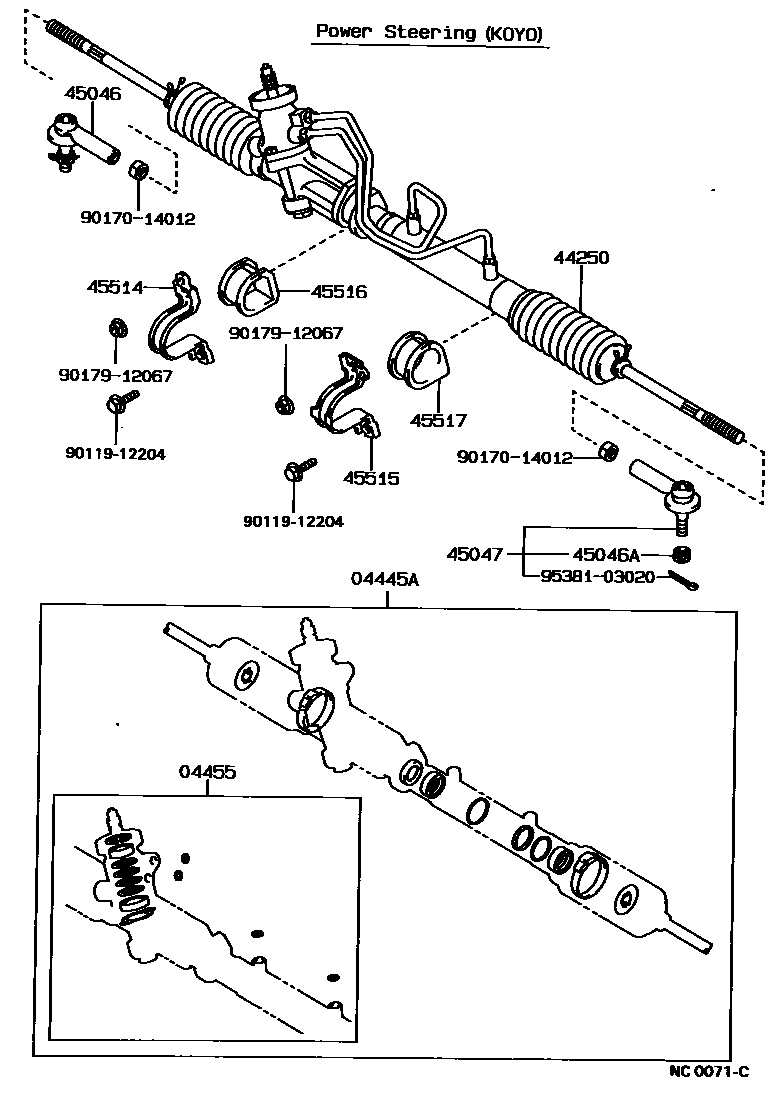

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12050iAE92..RHD;EE90..RHD..GEN198705-199006

sub04445-12051

main04445-12051iAE92..RHD;EE90..RHD..GEN199006-199308

main04445-12060iAE92,EE90..LHD198705-198812

sub04445-12061

sub04445-12120

main04445-12120iAE92,EE90..LHD198812-199207

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12030iAE92,EE90..RHD198705-199006

sub04455-12031

main04455-12031iAE92..RHD;EE90..RHD..GEN199006-199308

main04455-12040iAE92,EE90..LHD198705-198812

sub04455-12041

sub04455-12100

main04455-12041iAE92,EE90..LHD198812-199207

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12180iEE90..RHD..GEN;AE92..RHD..(STD,XL)198705-199103

sub44250-12181

sub45517-12111

main44250-12181iEE90..RHD..GEN;AE92..RHD..(STD,XL)199103-199308

sub44250-12480

main44250-12200iAE92..RHD..(GT,GTI)198705-199103

sub44250-12201

sub45517-12111

main44250-12201iAE92..GT,GTI199103-199308

main44250-12230iAE92,EE90..LHD..(GL,STD,XL)198705-199103

sub44250-12231

sub45517-12111

main44250-12231iAE92,EE90..LHD199106-199207

sub44250-12232

main44250-12240iAE92..LHD..GTI198705-199103

sub44250-12241

sub45517-12111

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE92,EE90198705-199308

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE92,EE90198705-199308

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE92,EE90198705-199308

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12070iAE92..RHD;EE90..RHD..GEN198705-199308

W(POWER STEERING)

main45514-12080iAE92,EE90198705-198905

main45514-12081iAE92,EE90198905-199308

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12140iAE92..SA198705-199308

W(POWER STEERING)

main45515-12150iAE92,EE90..LHD198705-199207

W(POWER STEERING)

main45515-12160iAE92,EE90198705-198905

sub45515-12161

main45515-12161iAE92,EE90198905-199308

main45515-12170iAE92,EE90..RHD..GEN199108-199206

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12050iAE92,EE90198905-199308

main45516-20010iAE92;EE90..GCC,GEN198905-199308

W(POWER STEERING)

main45516-20010iAE92,EE90198705-198905

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12110iAE92,EE90198705-199103

W(POWER STEERING)

main45517-12111iAE92;EE90..GCC,GEN199103-199308

W(POWER STEERING)

main45517-12120iAE92,EE90198705-199308

9011912204

main90119-12204

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
