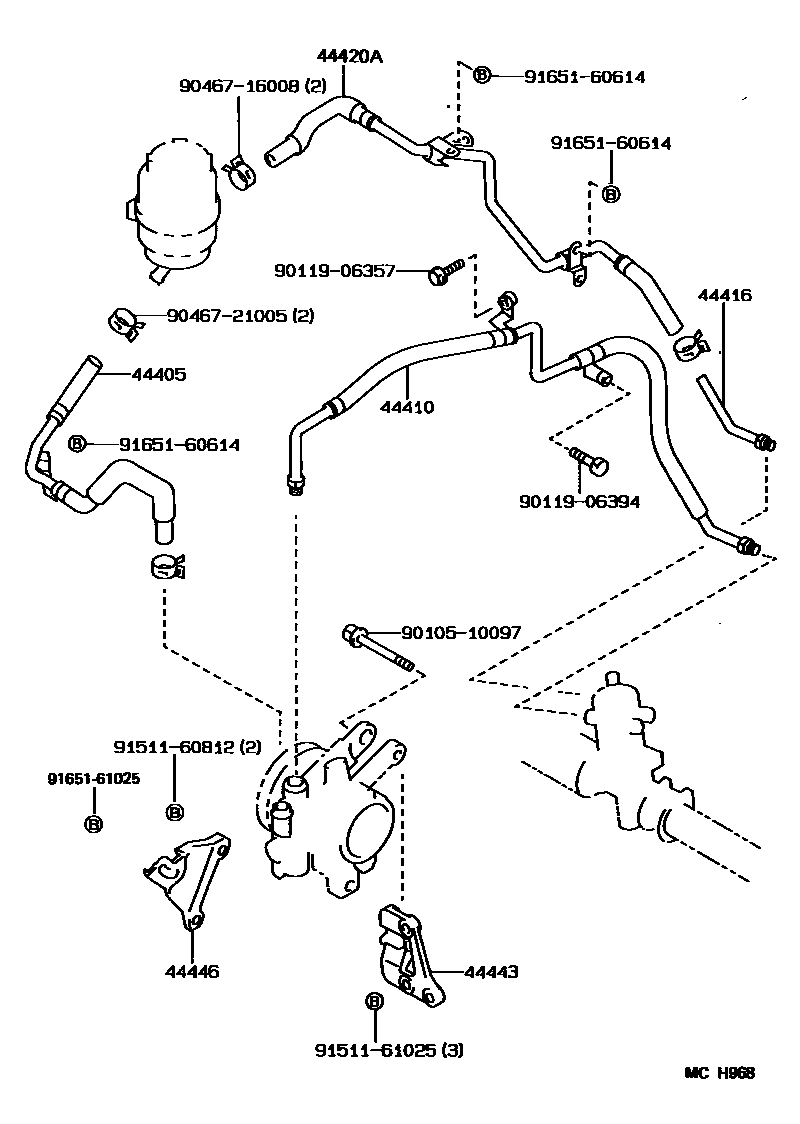

POWER STEERING TUBE

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0010 1

44405TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1

main44405-12010iAE92..GT,GTI198705-199308

main44405-12031iEE90..GCC,GEN198705-199207

44410TUBE ASSY, PRESSURE FEED

main44410-12220iAE92..RHD..(STD,XL)198705-199308

main44410-12250iAE92..LHD..XL198705-199106

main44410-12260iAE92..RHD..(GT,GTI)198705-198905

main44410-12261iAE92..RHD..(GT,GTI)198905-199005

main44410-12262iAE92..GT,GTI199005-199308

main44410-12280iEE90..GCC,GEN198705-199207

main44410-12300iAE92..GCC198908-199207

main44410-12310iAE92..LHD..GTI198705-198905

main44410-12311iAE92..LHD..GTI198905-199004

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12170iEE90..RHD..GEN;AE92..RHD..(GT,GTI)198705-199308

44420ATUBE ASSY, RETURN

main44420-12010iEE90..RHD..GEN198705-199206

main44420-12020iEE90..GCC198708-199207

main44420-12030iEE90..LHD..GEN198705-199206

main44420-12070iAE92..RHD..(GT,GTI)198905-199308

main44420-12080iAE92..LHD..GTI198905-198908

44443BRACKET, PUMP

main44443-12050iAE92..SR5,STD,XL198705-199308

main44443-12060iAE92..GT,GTI198705-199308

main44443-12070iEE90..GCC,GEN198705-199207

44446STRUT, ADJUSTING

main44446-12040iAE92..SR5,STD,XL198705-199308

main44446-12050iEE90..GCC,GEN198705-199207

9010510097

main90105-10097

9011906357

main90119-06357

9011906394

main90119-06394

9046716008

main90467-16008

9046721005

main90467-21005

9151160812

main91511-60812

9151161025

main91511-61025

9165160614

main91651-60614

9165161025

main91651-61025

15 parts on this diagram · 7 diagrams in section
