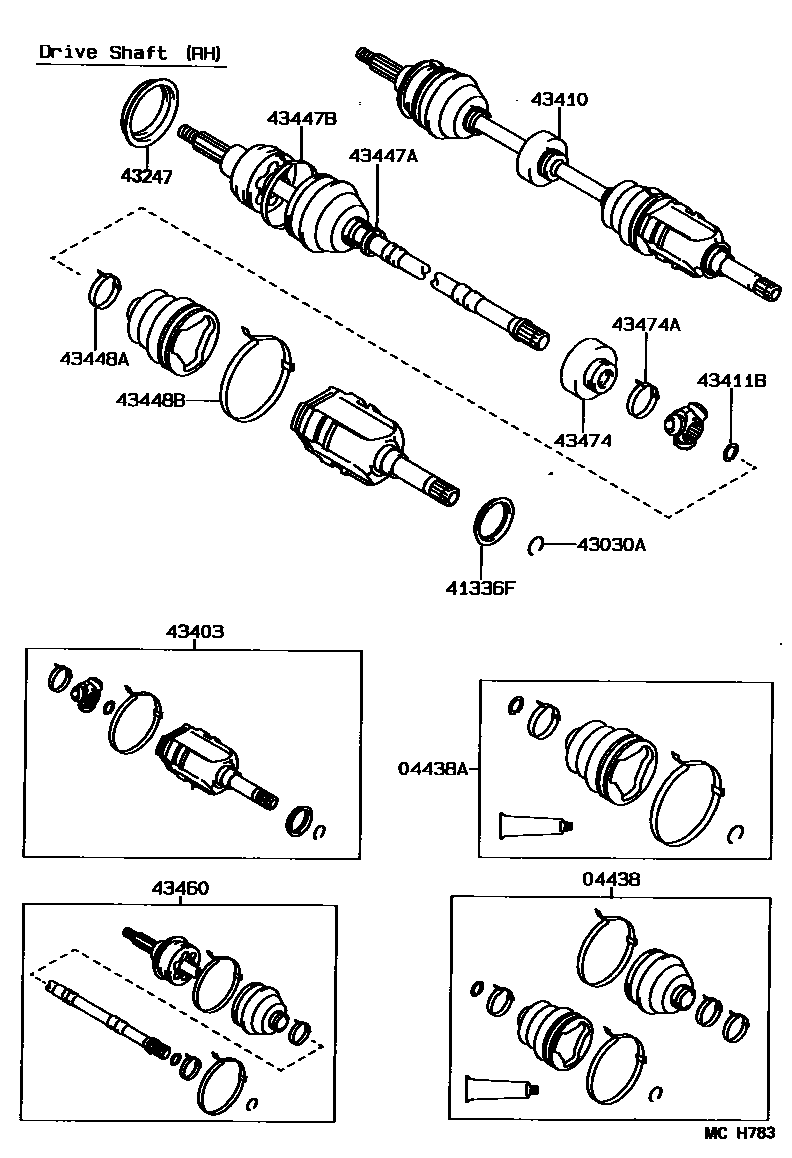

FRONT DRIVE SHAFT

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12040iAE92..GTI198705-198709

main04438-12080iEE90..(3FC,4F)..GCC;AE92,EE90..(3FC,4F,5F)..(GL,STD,XL)..(GEN,SA)198705-199009

sub04438-12170

main04438-12120iAE92..GT,GTI198709-199002

sub04438-12190

main04438-12170iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)199002-199009

sub04438-12171

main04438-12171iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)199009-199207

sub04438-12370

main04438-12181iAE92,EE90..(STD,XL)..SA199009-199308

sub04438-12390

main04438-12190iAE92..GT,GTI199002-199308

main04438-12191iAE92..GTI199009-199205

sub04438-20110

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12060iAE92..GTI198705-198709

sub04438-17031

main04438-12070iAE92,EE90..(3FC,4F,5F)..(GL,GT,GTI,STD,XL)198705-199002

sub04438-12160

main04438-12160iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)199002-199308

sub04438-12161

main04438-12161iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)199009-199207

sub04438-12410

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAE92,EE90..GL,STD,XL198705-199308

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE92,EE90..GL,STD,XL198705-199308

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011iAE92,EE90198705-199106

sub43247-33010

main43247-33010iAE92,EE90199106-199308

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE92,EE90..GCC,GEN198909-199207

main43403-19055iAE92,EE90..GL,STD,XL198705-198709

sub43403-19085

main43403-19085iAE92,EE90..SA198709-199308

main43403-39025iAE92..GTI198705-198709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12130iAE92,EE90..GL,SR5,STD,XL198705-199101

sub43410-12131

sub43525-20030

sub90179-22020

main43410-12131iAE92,EE90..GL,SR5,STD,XL199101-199308

sub43410-12122

sub90178-22001

main43410-12140iAE92..GTI198705-198709

sub43410-12141

sub43525-20030

sub90179-22020

main43410-12170iAE92..GT,GTI198709-199101

sub43410-12171

sub43525-20030

sub90179-22020

main43410-12171iAE92..GT,GTI199101-199308

sub43410-12172

sub90178-22001

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE92,EE90198705-199308

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iAE92..GTI198705-199205

main90949-01078iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198705-199308

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAE92..GT,GTI198705-199308

sub42345-12160

main90949-01080iAE92,EE90..(STD,XL)..SA198705-199308

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iAE92..GT,GTI198705-199308

main90949-01078iAE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN)198705-199308

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iAE92..GTI198705-198709

main90949-01076iAE92,EE90..GL,STD,XL198705-199308

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19275iAE92,EE90..GL,SR5,STD,XL198705-199101

sub43460-19276

sub43525-20030

sub90179-22020

main43460-19276iAE92,EE90..GL,SR5,STD,XL199101-199308

sub43460-19277

sub90178-22001

main43460-19285iAE92..GTI198705-198709

sub43460-19286

sub43525-20030

sub90179-22020

main43460-19305iAE92..GT,GTI198709-199101

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19306iAE92..GT,GTI199101-199308

sub43460-19309

sub90178-22001

43474DAMPER, DRIVE SHAFT

main43474-12020iAE92,EE90198705-199308

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE92,EE90198705-199308

15 parts on this diagram · 6 diagrams in section
