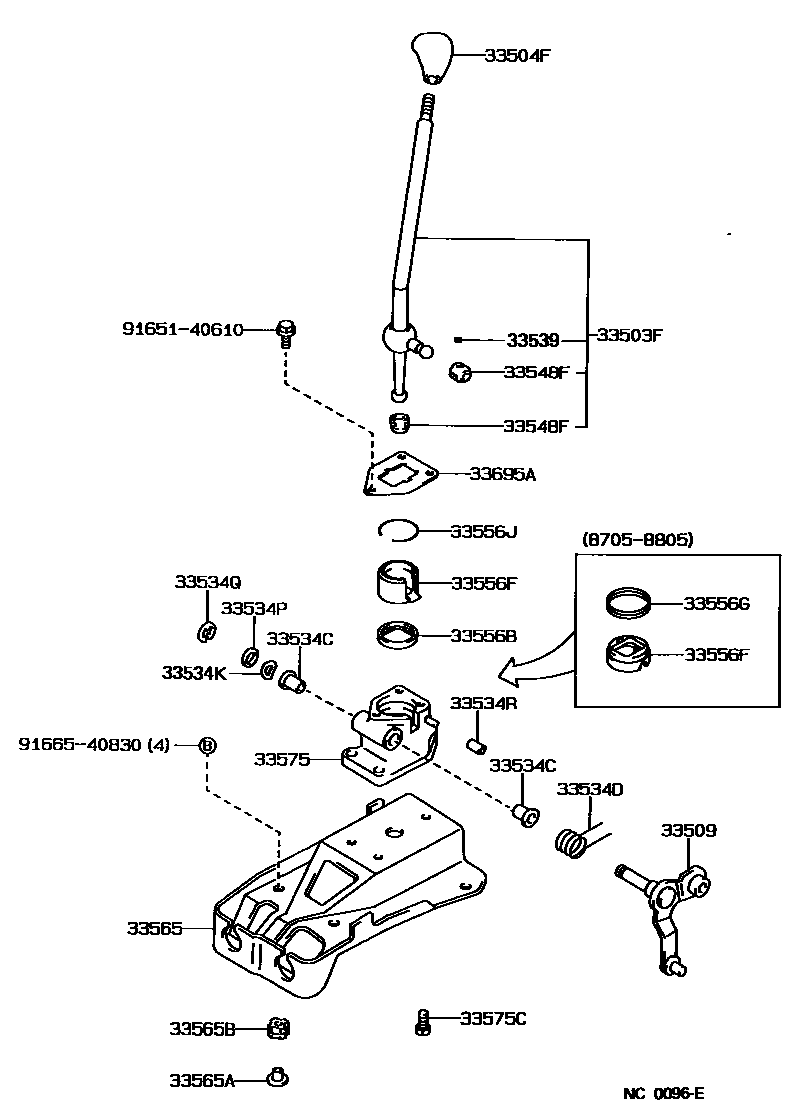

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12190iAE92,EE90..RHD..3FC198705-198908

main33503-12310iAE92,EE90..LHD..3FC198705-198908

main33503-12330iAE92,EE90..RHD..MTM198705-198904

sub33503-12331

main33503-12331iAE92,EE90..RHD..MTM198904-199308

main33503-12360iAE92,EE90..LHD..MTM198705-198904

sub33503-12361

main33503-12361iAE92,EE90..LHD..MTM198904-199207

main33503-12440iAE92,EE90..RHD..3FC198908-199308

main33503-12460iAE92,EE90..3FC..GCC198908-199207

main33503-12470iAE92..4FC198908-199106

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150iAE92..GT198808-198811

sub33504-22140

main33504-12150-11iAE92..GTI198705-198903

BLACK,TRIM1#

sub33504-12150

sub33504-22140

main33504-12150-C0iAE92..GT,GTI198903-199308

BLACK,TRIM1#

sub33504-12150

sub33504-22140

main33504-14040-15iEE90..STD198705-199308

DARK BEIGE,TRIM4#

sub33504-14040

main33504-14040-33iEE90..STD198705-199308

GRAY,TRIM1#

sub33504-14040

main33504-14040-34iEE90..STD..GEN198908-199205

DARK BLUE,TRIM8#

sub33504-14040

main33504-14060-23iEE90..4F..GCC198708-199008

GRAY,TRIM1#

sub33504-14060

sub33504-14040

main33504-14060-25iEE90..4F..GCC198708-198908

DARK BEIGE,TRIM4#

sub33504-14060

sub33504-14040

main33504-14060-46iEE90..4F..GCC198908-199008

BROWN,TRIM4#

sub33504-14060

sub33504-14040

main33504-14060-54iEE90..4F..GCC198708-199008

DARK BLUE,TRIM8#

sub33504-14060

sub33504-14040

main33504-24010-20iAE92,EE90..5F..(GL,SR5,XL)198705-199009

GRAY,TRIM1#

sub33504-24010

main33504-24010-54iAE92..5F..XL;EE90..LHD..5F198705-198807

DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-55iAE92,EE90..XL..SA198705-199308

DARK BEIGE,TRIM4#

sub33504-24010

main33504-24010-B3iAE92,EE90..(2D,5D)..5F..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub33504-24010

main33504-24010-E1iEE90..LHD..5F198908-199207

BROWN,TRIM4#

sub33504-24010

main33504-24010-J0iEE90..LHD..5F;AE92..5F..XL..GEN198807-199207

DARK BLUE,TRIM8#

sub33504-24010

main33542-12140-03iAE92,EE90..RHD..3FC198705-199308

SHADOW GRAY,TRIM1#

sub33542-12140

main33542-12140-04iEE90..3FC..GEN198705-199206

DARK BLUE,TRIM8#

sub33542-12140

main33542-12140-05iAE92,EE90..RHD..3FC198705-198908

DARK BEIGE,TRIM4#

sub33542-12140

main33542-12150iAE92,EE90..3FC..GCC198908-199009

main33542-12150-03iAE92,EE90..LHD..3FC198705-198908

SHADOW GRAY,TRIM1#

sub33542-12150

main33542-12150-B1iAE92..3FC..GCC199009-199207

SHADOW GRAY,TRIM1#

sub33542-12150

main33542-20080-03iAE92..4FC198908-199106

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-04iAE92..4FC198908-199106

BLUE,TRIM8#

sub33542-20080

sub33542-20081

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060iAE92,EE90..MTM198705-198904

sub33509-12080

sub90206-12003

main33509-12080iAE92,EE90..MTM198904-199308

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013iAE92,EE90..MTM198705-198805

main90386-12034iAE92,EE90..MTM198805-199308

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iAE92,EE90..MTM198705-199308

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iAE92,EE90..MTM198904-199308

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iAE92,EE90..MTM198705-199308

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iAE92,EE90..MTM198705-199308

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iAE92,EE90..MTM198705-199308

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iAE92,EE90..MTM198908-199308

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iAE92,EE90..MTM198705-198908

main33548-12040iAE92,EE90..MTM198908-199308

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iAE92,EE90..MTM198805-199308

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-12040iAE92,EE90..MTM198705-198805

main33556-20020iAE92,EE90..MTM198805-199308

33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90501-11040iAE92,EE90..MTM198705-198805

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iAE92,EE90..MTM198808-199308

33565PLATE, CONTROL SHIFT LEVER RETAINER

main33565-12030iAE92,EE90..MTM198705-199308

33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-08031iAE92,EE90..MTM198705-199308

33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-10020iAE92,EE90..MTM198705-199308

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-12120iAE92,EE90..MTM198705-198805

sub33575-12H00

main33575-32050iAE92,EE90..MTM198805-199308

33575CBOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08622iAE92,EE90..MTM198705-199308

33695ACOVER, SHIFT LEVER BALL

main33695-12020iAE92,EE90..MTM198705-198807

sub33695-12031

main33695-12031iAE92,EE90..MTM198807-199308

9165140610

main91651-40610

9166540830

main91665-40830

23 parts on this diagram · 6 diagrams in section
