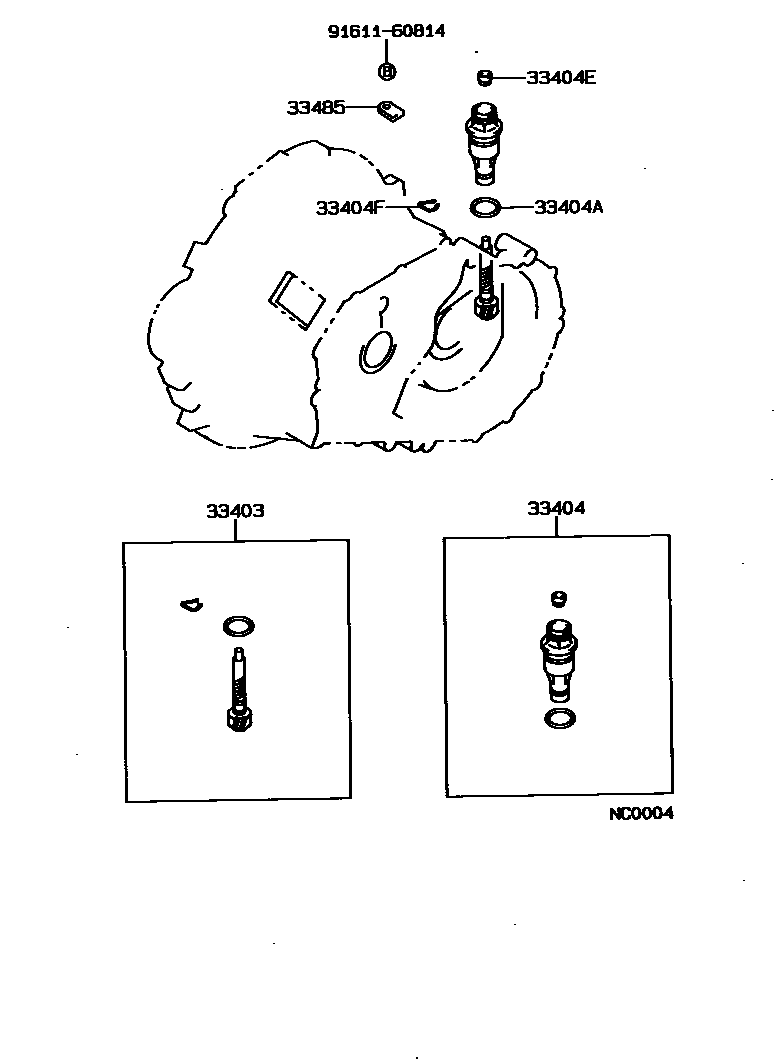

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=31,MARK 31:35
N=31,MARK 31:35,W(175/70R13 TIRE)
N=30,MARK 30:35,W(165SR13 TIRE)
N=30,MARK 30:35
N=30,MARK 30:34
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161160814
main91611-60814
7 parts on this diagram · 1 diagram in section
