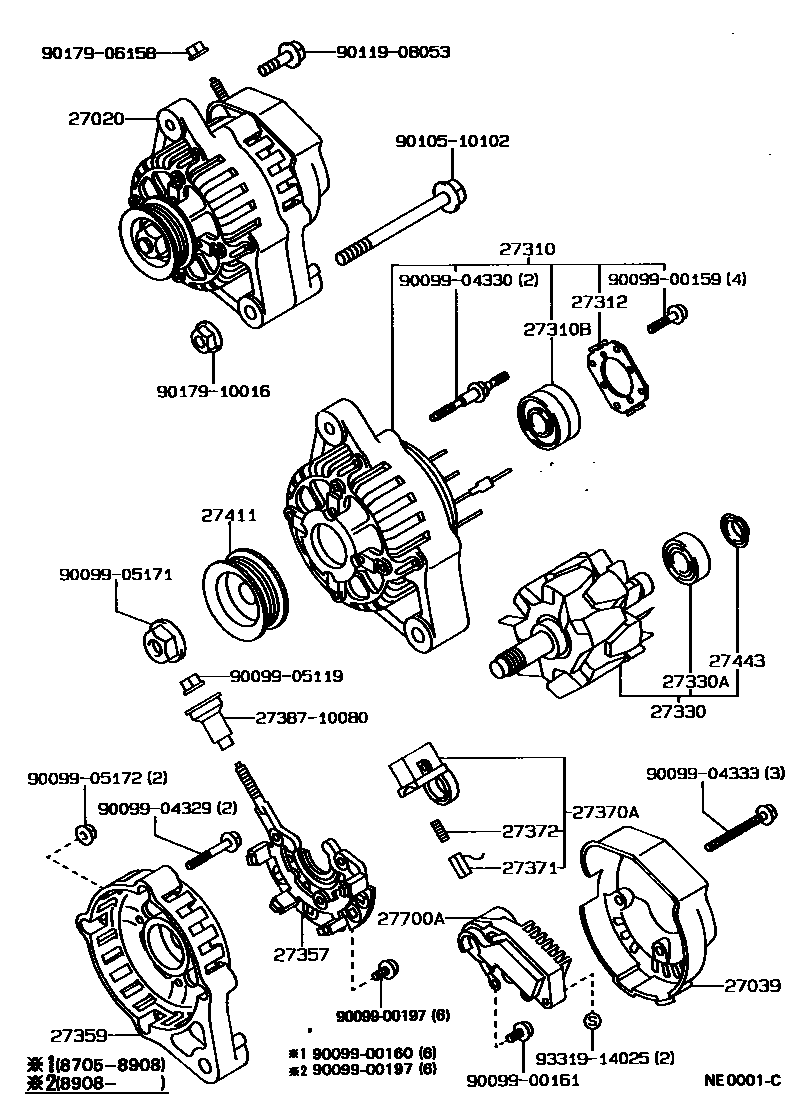

ALTERNATOR

0001 112V 50A 0003 112V 55A 0004 112V 60A,70A 0005 112V 60A,70A

27020ALTERNATOR ASSY

main27060-10011i2E..EE90..GCC198908-199207

12V 55A

main27060-10100i2E..EE90198705-199308

12V 50A

main27060-11050i2E..EE90..GCC198809-198908

12V 55A

main27060-11080i2E..EE90..GEN198908-199108

12V 50A

sub27060-10100

main27060-16151i4AGE..AE92198705-198908

12V 60A

main27060-16160i4AF..AE92..SA198705-199308

12V 60A

main27060-16170i4AF..AE92..GCC,GEN198908-199207

12V 70A

main27060-16180i4AGE..AE92198908-199308

12V 70A

sub27060-16082

27039COVER, ALTERNATOR REAR END

main27039-15170i4A#..AE92..GT,GTI,SR5199109-199308

sub27039-15171

main27039-72010i4AF..AE92..SA198705-199308

sub27039-15170

main27039-72110i2E..EE90..GCC198809-199207

main27039-72150i2E..EE90..GEN,SA198705-199308

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10021i2E..EE90..GCC198809-199105

sub27310-10070

main27310-10070i2E..EE90..GCC199105-199207

main27310-10090i2E..EE90198705-199308

main27310-16102i4AGE..AE92198908-198909

sub27310-16103

main27310-16103i4AGE..AE92198909-199308

main27310-16181i4AGE..AE92198705-198908

main27310-16190i4AF..AE92198705-199308

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i2E..EE90..GCC198809-199105

sub90099-10199

main90099-10170i2E..EE90198705-199105

sub90099-10198

main90099-10178i4A#..AE92198705-199308

main90099-10198i2E..EE90..GEN,SA199105-199308

sub90099-10229

main90099-10199i2E..EE90..GCC199105-199207

27312PLATE, RETAINER

main27312-70200i4A#..AE92198705-199308

main27312-72100i2E..EE90..GCC198809-199207

main27312-72120i2E..EE90..GEN,SA198705-199308

27330ROTOR ASSY, ALTERNATOR

main27330-10021i2E..EE90..GCC198809-199207

main27330-72100i4AGE..AE92198705-198709

sub27330-72101

main27330-72101i4AF..AE92198705-199308

main27330-72150i2E..EE90..GEN,SA198705-199308

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4A#..AE92;2E..EE90..GCC198705-199308

main90099-10154i2E..EE90..GEN,SA198705-199308

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AGE..AE92;4AF..AE92..GCC,GEN198705-199308

main27357-63040i2E..EE90..GCC198809-199207

main27357-63060i4AF..AE92198705-199308

main27357-72150i2E..EE90..GEN,SA198705-199308

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16081i2E..EE90..GCC198809-199207

main27359-16151i4AF..AE92198705-199308

sub27359-16152

sub27384-16380

main27359-16180i4AGE..AE92198705-199308

sub27359-16181

sub27384-16380

main27359-72150i2E..EE90..GEN,SA198705-199308

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AGE,2E..AE92,EE90198705-199105

sub27370-54450

main27370-54450i4AGE,2E..AE92,EE90199105-199308

sub27370-58320

main27370-63021i4AF..AE92198705-199308

sub27370-70300

main27370-70300i4AF..AE92..GCC,GEN199105-199207

sub27370-35060

27371BRUSH, ALTERNATOR

main27371-63020i4AF..AE92..SA198705-199308

sub27371-70300

main27371-70300i4AF..AE92..GCC,GEN;4AGE,2E..AE92,EE90199105-199308

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4A#,2E..AE92,EE90..GCC,GEN198908-199207

sub27372-87501

main27372-72100i4A#,2E..AE92,EE90..SA198705-199308

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-10051i2E..EE90198705-199308

main27411-10070i2E..EE90..GCC198809-198908

main27411-16180i4AGE..AE92198705-199308

main27411-16190i4AF..AE92198705-198808

sub27411-16191

main27411-16191i4AF..AE92198808-199308

main27411-70200i2E..EE90..GCC198908-199207

27443COVER, ALTERNATOR BEARING

main27443-63020i4A#,2E..AE92,EE90198705-199308

27700AREGULATOR ASSY, GENERATOR

main27700-10050i2E..EE90198705-199108

sub27700-10080

main27700-10061i2E..EE90..GCC198809-198908

sub27700-54050

main27700-10080i2E..EE90..GEN,SA198804-199308

sub27700-66010

main27700-16010i4AGE..AE92198705-199308

sub27700-66020

main27700-63021i4AF..AE92198705-199108

sub27700-70030

main27700-70030i4AF..AE92198804-199308

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009900197

main90099-00197

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908053

main90119-08053

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

31 parts on this diagram · 4 diagrams in section
