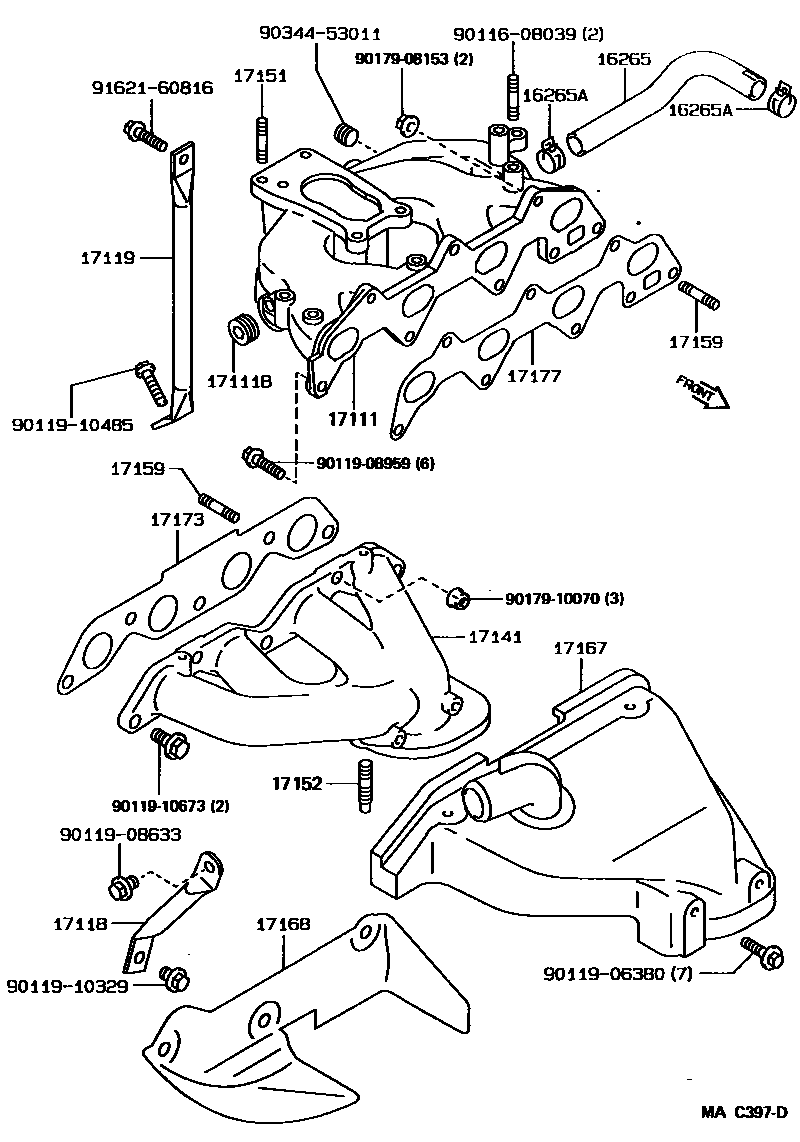

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17111MANIFOLD, INTAKE
NEW ZEALAND SPEC
NEW ZEALAND SPEC
17111BPLUG, NO.2
17118STAY, MANIFOLD
NEW ZEALAND SPEC
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
NEW ZEALAND SPEC
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD; INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
NEW ZEALAND SPEC
NEW ZEALAND SPEC OR W(HOT AIR INTAKE); W(HOT AIR INTAKE)
W(HOT AIR INTAKE)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011608039
main90116-08039
9011906380
main90119-06380
9011908633
main90119-08633
9011908959
main90119-08959
9011910329
main90119-10329
9011910485
main90119-10485
9011910673
main90119-10673
9017908153
main90179-08153
9017910070
main90179-10070
9034453011
main90344-53011
9162160816
main91621-60816
25 parts on this diagram · 3 diagrams in section
