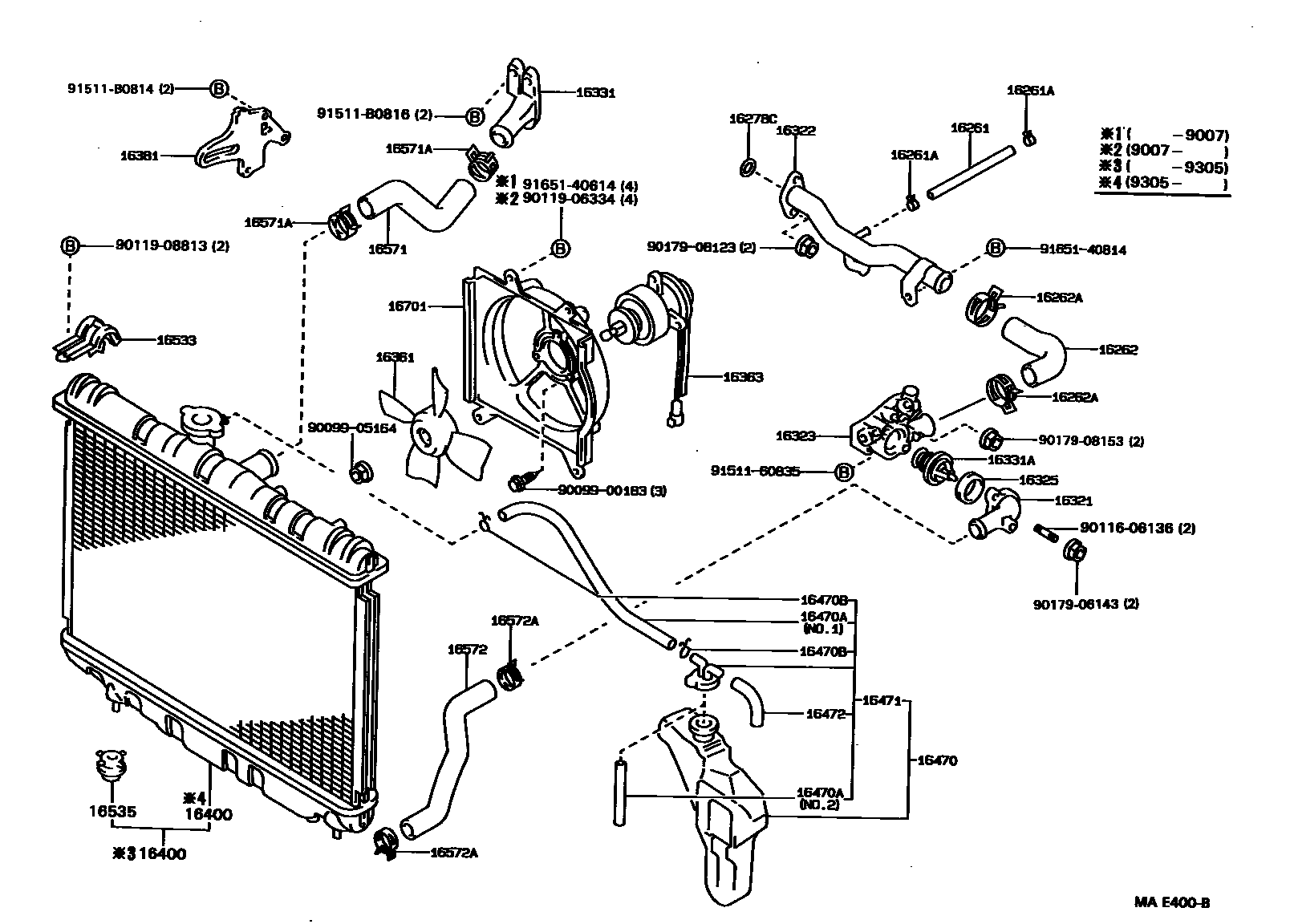

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-11011i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main16261-15010i4AGE..AE92198705-199308

main99555-10200i4AF..AE92198705-199106

*H,L=200

main99555-10220i4AF..AE92199106-199308

*H,L=220

sub99555-10300

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2E..EE90..RHD198705-198908

NEW ZEALAND SPEC

sub96135-51100

main90467-13001i4AF..AE92198705-199106

sub96135-51300

main90467-22004i4AGE..AE92198705-199308

sub90467-21010

main96135-41300i4AF..AE92199106-199308

sub96135-51300

16262HOSE, WATER INLET

main16262-10010i2E..EE90..5F..GCC;2E..EE90..MTM..(GEN,SA)198705-199308

sub16262-10011

main16262-10020i2E..EE90..3FC..GEN198705-199206

sub16262-10022

main16262-15010i4AGE..AE92..GEN198705-199308

main16262-15030i4AF..AE92198705-199308

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4AGE..AE92198705-199308

sub90467-34004

main90467-36001i4AF..AE92198705-199308

16278PIPE, WATER BY-PASS, NO.2

main16278-16060i4AGE..AE92198705-199106

sub16278-16061

main16278-16061i4AGE..AE92199106-199308

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4A#..AE92198705-199308

sub96761-24035

16321INLET, WATER

main16321-11011i2E..EE90..GEN,SA;2E..EE90..5F..GCC198705-199308

main16321-15020i4AF..AE92198705-199308

main16321-16030i4AGE..AE92..GEN198705-199308

16322PIPE, WATER INLET

main16322-10010i2E..EE90..GEN;2E..EE90..5F..GCC198705-199207

main16322-11010i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

sub16322-11081

sub16266-11010

main16322-11080i2E..EE90..RHD..GEN198908-199204

NEW ZEALAND SPEC

sub16322-11081

main16322-11080i2E..EE90..SA198912-199204

sub16322-11081

main16322-11081i2E..EE90..SA199204-199308

sub16322-11091

main16322-11081i2E..EE90..RHD..GEN199204-199206

NEW ZEALAND SPEC

sub16322-11091

main16322-15020i4AF..AE92198705-199005

sub16322-15040

main16322-15040i4AF..AE92199005-199106

main16322-15041i4AF..AE92199106-199308

16323HOUSING, WATER INLET

main16323-15060i4AF..AE92198705-199308

main16323-15090i4AF..AE92..SA198905-198910

main16323-16060i4AGE..AE92198705-199308

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4A#..AE92..GTI,STD,XL198705-199301

sub16325-63011

main16325-63011i2E..EE90199209-199308

16331OUTLET, WATER

main16331-15070i4AF..AE92..ATM198705-199308

main16331-15080i4AF..AE92..5F198705-199308

main16331-16090i4AGE..AE92198705-199308

16331ATHERMOSTAT

main90916-03046i2E..EE90..GEN,SA;2E..EE90..5F..GCC198705-199308

*WAX 82-95

main90916-03060i4AGE..AE92..GEN198705-199308

*WAX 82-95

sub90916-03090

16361FAN

main16361-15080i4A#..AE92..5F..(GTI,SR5,XL)198705-199308

main16361-63020i4AF..AE92..3FC198705-199308

sub16361-74070

main16361-64010i2E..EE90..5F..GCC198809-199207

main16361-64010i2E..EE90..3FC..GEN198712-199206

*AXC=-652

16363MOTOR, COOLING FAN

main16363-16030i2E..EE90..GEN,SA198705-199308

main16363-64010i2E..EE90..3FC..GEN198712-199206

*AXC=-652

main16363-64010i2E..EE90..GCC198809-198908

main16363-64030i4AF..AE92..ATM;4AGE..AE92..SA198705-199308

16381BAR, FAN BELT ADJUSTING

main16381-11020i2E..EE90198705-199207

sub16381-11021

main16381-11021i2E..EE90199207-199308

main16381-11030i2E..EE90..GCC198809-199207

main16381-15060i4AF..AE92198705-199308

main16381-16050i4AGE..AE92198705-199308

16400RADIATOR ASSY

main16400-11190i2E..EE90..MTM198705-198708

sub16400-11191

main16400-11191i4AF..AE92..5F198708-199305

sub16400-11192

sub90480-40010

main16400-11192i2E..EE90199305-199308

main16400-11210i2E..EE90..3FC..GCC198908-199006

main16400-11220i2E..EE90..LHD..MTM198705-198708

MIDDLE EAST SPEC

sub16400-11221

main16400-11221i2E..EE90..4F..GCC198708-199207

sub16400-16231

sub16535-15020

main16400-11221i2E..EE90..LHD..MTM..GEN198708-199206

MIDDLE EAST SPEC

sub16400-16231

sub16535-15020

main16400-15380i2E..EE90..3FC..GEN198712-199206

*AXC=-652

main16400-15380i4AF..AE92..ATM..(GEN,SA)198705-199308

main16400-15440i4AF..AE92..3FC..GCC199008-199207

sub16400-15410

main16400-16130i4AGE..AE92198705-199308

sub16400-16140

main16400-16200i2E..EE90..3FC..GEN198705-199206

sub16400-15380

main16400-16290i4AF..AE92..5F..GCC198908-199207

16470TANK ASSY, RADIATOR RESERVE

main16470-15040i2E..EE90198705-199308

main16470-16070i4AGE..AE92198705-199308

sub16470-16090

main16470-16090i4AGE..AE92..GEN198705-199205

W(AIR CONDITIONER)

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-16070i4AGE..AE92198705-199308

NO.1

main85338-16090i4AGE..AE92..GEN198705-198908

W(AIR CONDITIONER),NO.2

main90445-12078i2E..EE90..GCC,GEN198705-199308

L=600,NO.2

main90445-12078i2E..EE90198705-199308

L=600

main90445-12117i4AF..AE92198705-199308

L=460

main90445-12117i4AF..AE92198705-199308

L=460,NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4A#..AE92198705-199308

16471CAP SUB-ASSY, RESERVE TANK

main16405-15050i2E..EE90..GEN,SA;2E..EE90..5F..GCC198705-199308

main16405-16050i4AGE..AE92198705-199308

sub16405-16070

main16405-16070i4AGE..AE92..GEN198705-199205

W(AIR CONDITIONER)

16472HOSE, BREATHER

main85338-74040i4A#..AE92198705-199308

16533SUPPORT, RADIATOR, UPPER

main16505-15060i4AF..AE92..5F..XL198705-199308

main16533-15090i4AF..AE92..ATM;4A#..AE92..GT,GTI,SR5198705-199308

16535SUPPORT, RADIATOR, LOWER

main16535-11030i2E..EE90..3FC..GCC198705-199308

main16535-15020i2E..EE90..3FC198705-199308

main90480-40010i4AF..AE92..5F..XL198705-199308

16571HOSE, RADIATOR, INLET

main16571-11050i2E..EE90198705-199308

main16571-15150i4AF..AE92198705-199308

main16571-16090i4AGE..AE92198705-199308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-44002i2E..EE90..SA198707-199308

main90467-31003i2E..EE90198705-199308

ENGINE SIDE

main90467-34003i2E..EE90198705-199308

RADIATOR SIDE

sub90467-34004

main90467-34003i4A#..AE92198705-199308

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-11100i2E..EE90..MTM198705-198708

main16572-11110i2E..EE90..3FC..GEN198705-199206

main16572-11140i2E..EE90..5F..GCC;2E..EE90..MTM..(GEN,SA)198708-199308

main16572-15190i4AF..AE92198705-199308

main16572-16070i4AGE..AE92198705-199308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-44002i2E..EE90..MTM198707-199308

main90467-31003i2E..EE90198705-199308

ENGINE SIDE

main90467-34003i2E..EE90..GEN,SA;2E..EE90..5F..GCC198705-199308

RADIATOR SIDE

sub90467-34004

main90467-34003i4A#..AE92198705-199308

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-15220i2E..EE90..GEN,SA198705-199308

main16711-15230i2E..EE90..5F..GCC198809-199207

main16711-15230i2E..EE90..3FC..GEN198712-199206

*AXC=-652

main16711-15240i4AGE..AE92;4AF..AE92..3FC198705-199308

9009900183

main90099-00183

9009905164

main90099-05164

9011606136

main90116-06136

9011906334

main90119-06334

9011908813

main90119-08813

9017906143

main90179-06143

9017908123

main90179-08123

9017908153

main90179-08153

9151160835

main91511-60835

91511B0814

main91511-B0814

91511B0816

main91511-B0816

9165140614

main91651-40614

9165140814

main91651-40814

41 parts on this diagram · 4 diagrams in section
