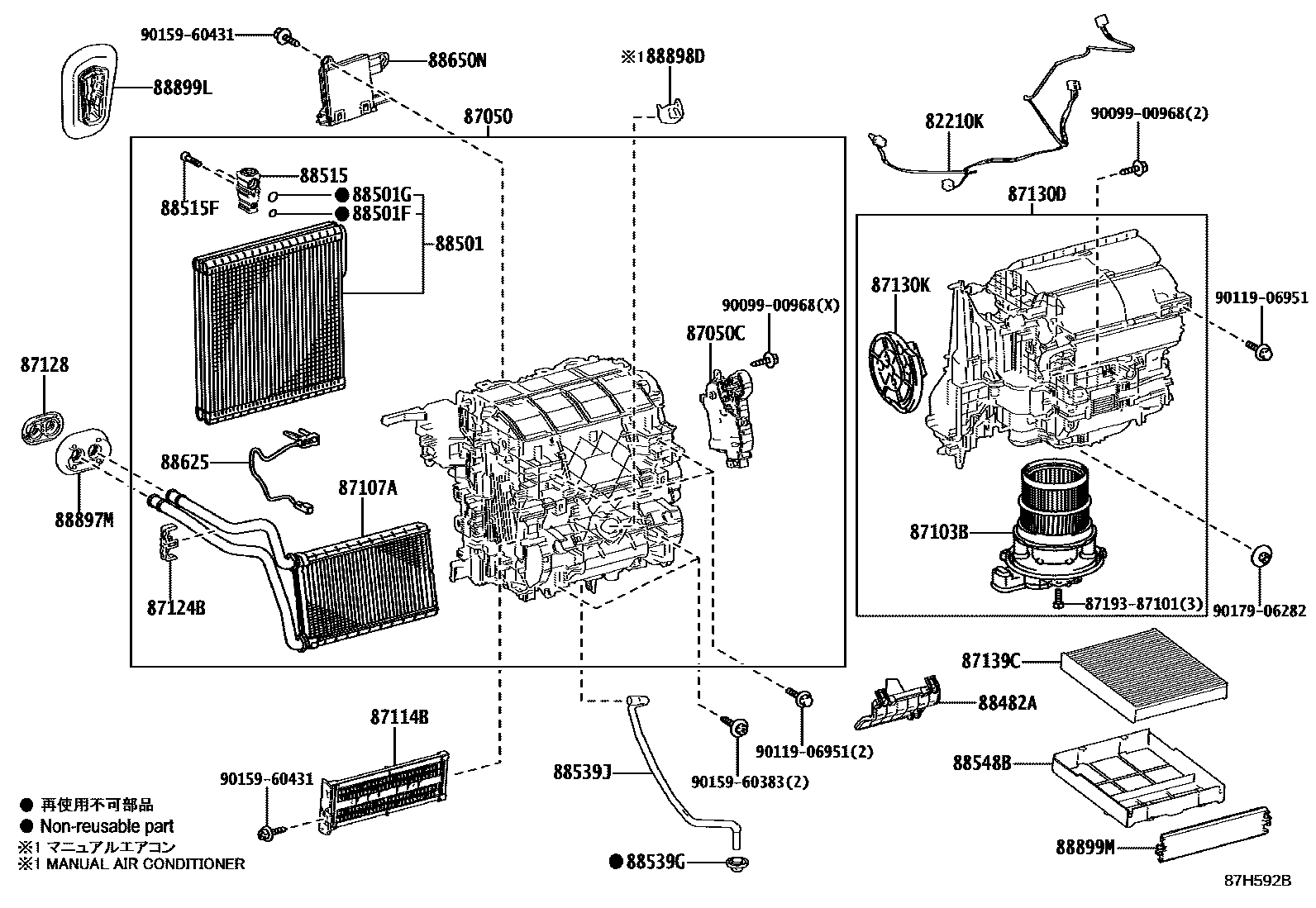

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0005 1 0007 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12050iZRE212..LHD202004-202208

main82212-12060iZWE21#..MXC202004-202208

main82212-12080iZWE211..ARL202004-202208

main82212-12130iMZEA12,ZWE219..ARL202209-202409

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12840iMZEA18202409

main87050-12850iZWE211..MXC201901-202004

main87050-12890iMZEA12,ZRE212..RHD202004-202208

main87050-12A00iZWE211..ARL202004-202208

main87050-12B70iZWE219..MXC202409

main87050-12C60iZWE219..ARL202209-202409

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-47180iMZEA12,ZRE212,ZWE21#202004-202208

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58070iMZEA12,ZRE212,ZWE211..RHD201909-202004

main87103-58080iMZEA18,ZWE219..LHD202209-202409

main87103-78040iMZEA18,ZWE219..LHD202409

main87103-78050iMZEA12..D202409-202507

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iMZEA12,ZWE219..L..ARL202409

main87107-47080iZRE212,ZWE21#..LHD202004-202208

87114BCOVER, HEATER

main87114-47020iMZEA12..D202409-202507

87124BCLAMP, HEATER

main87124-33070iMZEA12..D202409-202507

87128GROMMET, HEATER

main87128-28010iMZEA12..D202409-202507

87130DBLOWER ASSY

main87130-16211iMZEA12..D202409-202507

main87130-42491iMZEA18,ZWE219..LHD202409

main87130-47290iZRE212,ZWE211..LHD201901-202004

main87130-47300iMZEA12,ZWE219..ARL202209-202409

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iMZEA12,ZRE212,ZWE211..RHD201909-202004

main87106-58050iMZEA18,ZWE219..LHD202209-202409

87139CFILTER, CLEAN AIR

main87139-28020iMZEA12,ZRE212,ZWE21#202004-202208

POLLEN FILTER,OE PART

main87139-58010iMZEA18..RHD202209-202307

DEODORANT FILTER

88482ACOVER

main87114-10100iMZEA12,ZRE212,ZWE211201901-202004

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10180iZWE219202209-202409

main88501-12620iMZEA18..RHD202209-202307

main88501-47090iZWE211201901-202004

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMZEA12..D202409-202507

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMZEA18;MZEA12,ZWE219..L202409

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-30800iZWE21#202004-202208

main88515-48110iMZEA12,ZRE212201901-202004

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iMZEA12,ZRE212,ZWE211201901-202004

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iMZEA12..D202409-202507

88539JHOSE, DRAIN COOLER

main88539-47050iMZEA12,ZRE212,ZWE211..RHD201909-202004

main88539-47060iMZEA18,ZWE219..LHD202209-202409

88548BCASE, AIR FILTER

main88899-47090iMZEA12,ZRE212,ZWE21#202004-202208

88625THERMISTOR, COOLER, NO.1

main88620-28050iMZEA12..D202409-202507

main88620-28060iZWE211201901-202004

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12G80iMZEA12,ZRE212,ZWE211201907-201912

main88650-12G90iMZEA12,ZRE212,ZWE21#202004-202208

main88650-12M00iMZEA1#,ZWE219202209-202405

main88650-12N00iMZEA1#,ZWE219202406-202406

main88650-12N01iMZEA1#,ZWE219202407-202409

main88650-12N20iMZEA18;MZEA12,ZWE219..L202409

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iMZEA12..D202409-202507

88898DGROMMET

main88899-33070iMZEA18..D202409

88899LPARTS, COOLING UNIT

main88899-10120iMZEA12..D202409-202507

main88899-47070iZWE211201901-202004

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iMZEA12..D202409-202507

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

32 parts on this diagram · 4 diagrams in section
