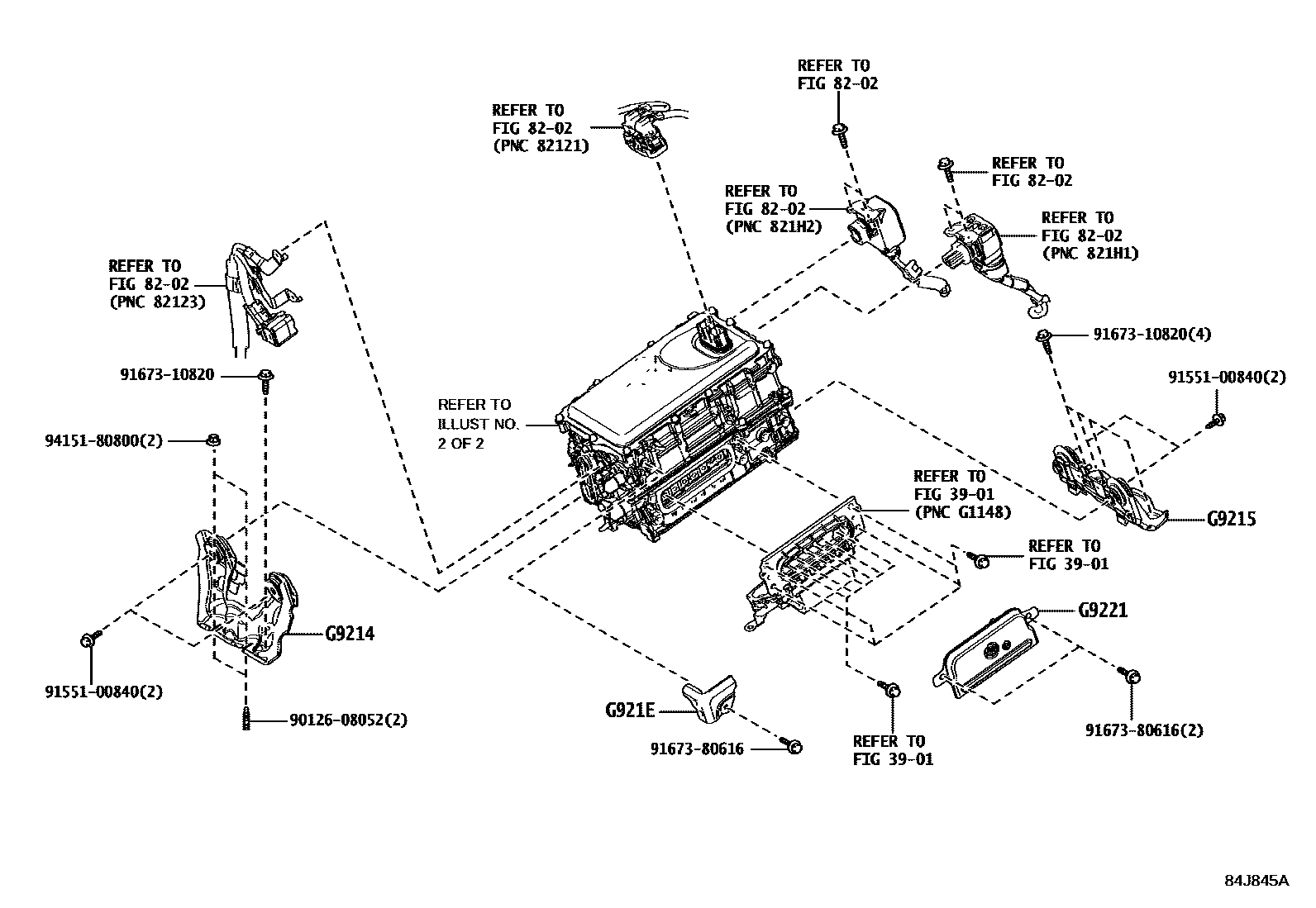

Toyota COROLLA SED (JPP)153 — HEV INVERTER
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
8202WIRING & CLAMP
9012608052
9155100840
9167310820
9167380616
9415180800
11 parts on this diagram · 4 diagrams in section
HEV INVERTER for Toyota COROLLA SED (JPP)153
This section contains 26 genuine Toyota parts for the HEV INVERTER system of the Toyota COROLLA SED (JPP)153. Key components include: CONVERTER KIT, HV, COMPUTER KIT, MOTOR GENERATOR CONTROL, TRANSAXLE ASSY(HEV OR BEV OR FCEV), WIRING & CLAMP, CLAMP, INVERTER COOLING PIPE.
