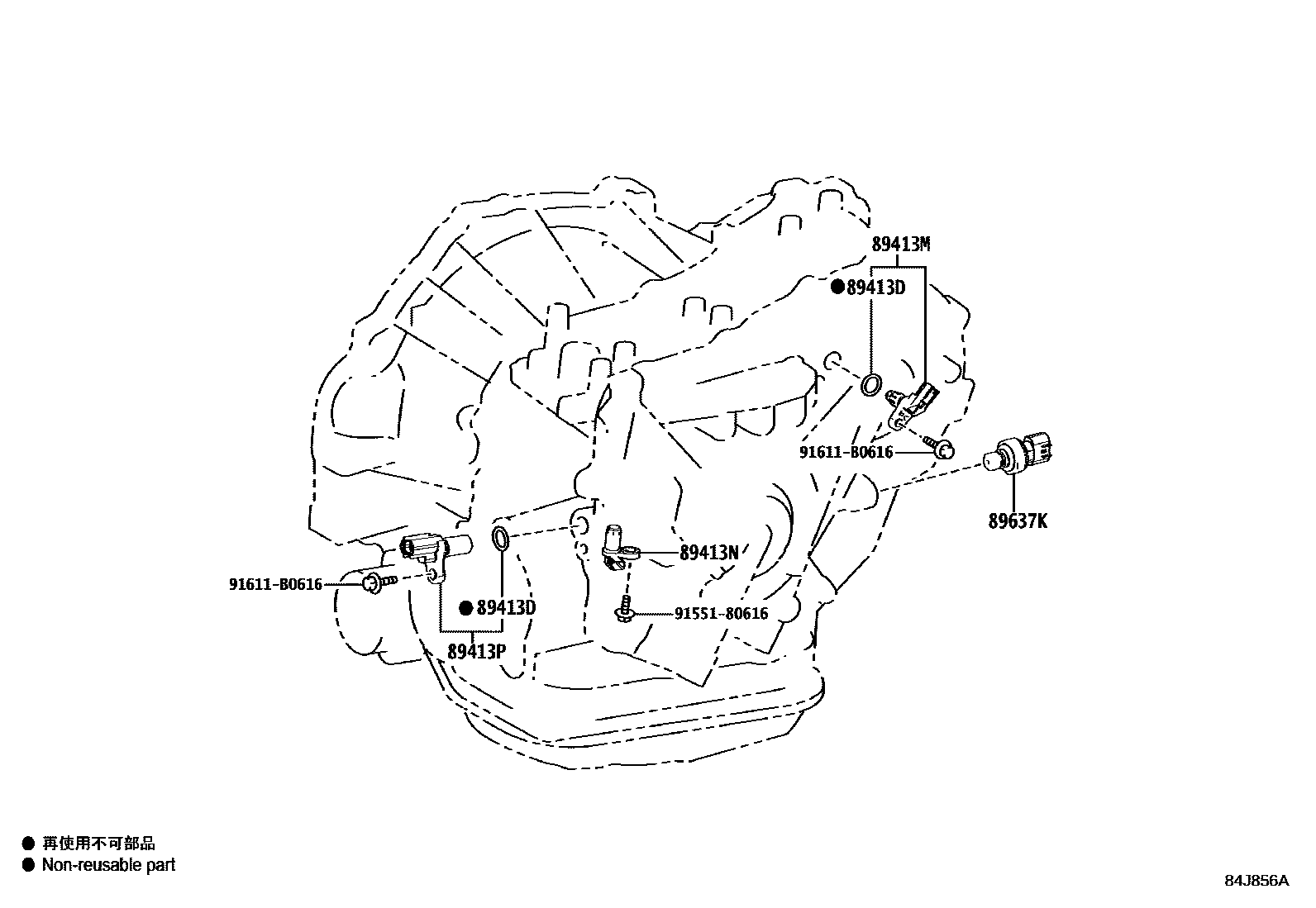

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K313 0002 1EG60 0003 1K120

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iZRE212..CVT201901-202004

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12010iMZEA12;MZEA18..LHD202209-202409

main89413-12020iZRE212..CVT201901-202004

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12010iMZEA12;MZEA18..LHD202209-202409

main89413-50020iZRE212..CVT202004-202208

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60021iZRE212..CVT202004-202208

89637KSENSOR, OIL PRESSURE

main89637-12040iMZEA12;MZEA18..LHD202209-202409

main89637-63010iZRE212..CVT201901-202004

9155180616

main91551-80616

91611B0616

main91611-B0616

7 parts on this diagram · 3 diagrams in section
