SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
NO PAINT REQ.,SOUTH AFRICA SPEC
NO PAINT REQ.,HIGH GRADE PACKAGE
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
NO PAINT REQ.,SOUTH AFRICA SPEC
NO PAINT REQ.
NO PAINT REQ.,HIGH GRADE PACKAGE
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
SOUTH AFRICA SPEC
NO PAINT REQ.
HIGH GRADE PACKAGE
NO PAINT REQ.,HIGH GRADE PACKAGE
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
SOUTH AFRICA SPEC
NO PAINT REQ.
HIGH GRADE PACKAGE
NO PAINT REQ.
NO PAINT REQ.,HIGH GRADE PACKAGE
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
9018904059
main90189-04059
9026904051
main90269-04051
9046707227
main90467-07227
9046708225
main90467-08225

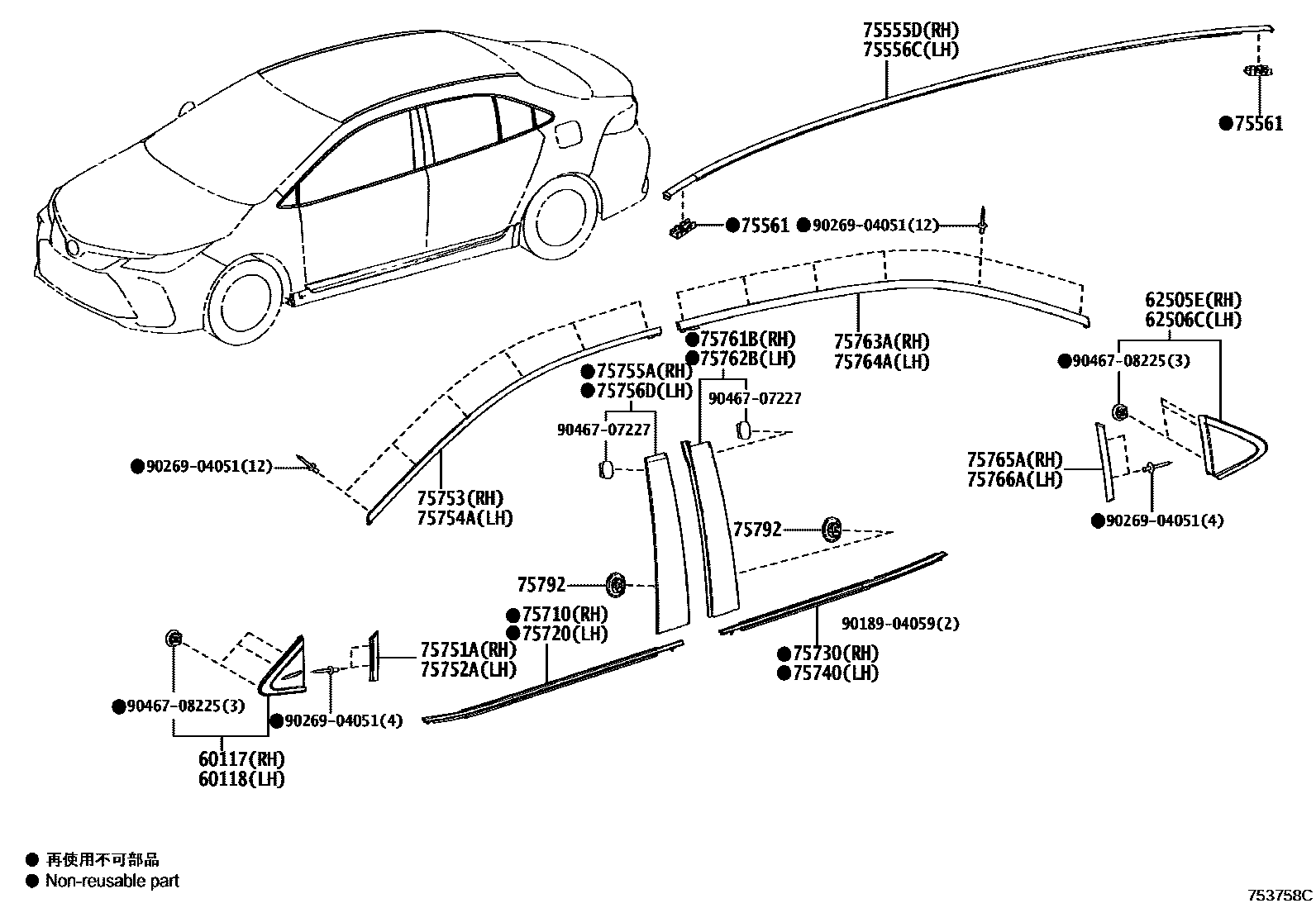

28 parts on this diagram · 2 diagrams in section
