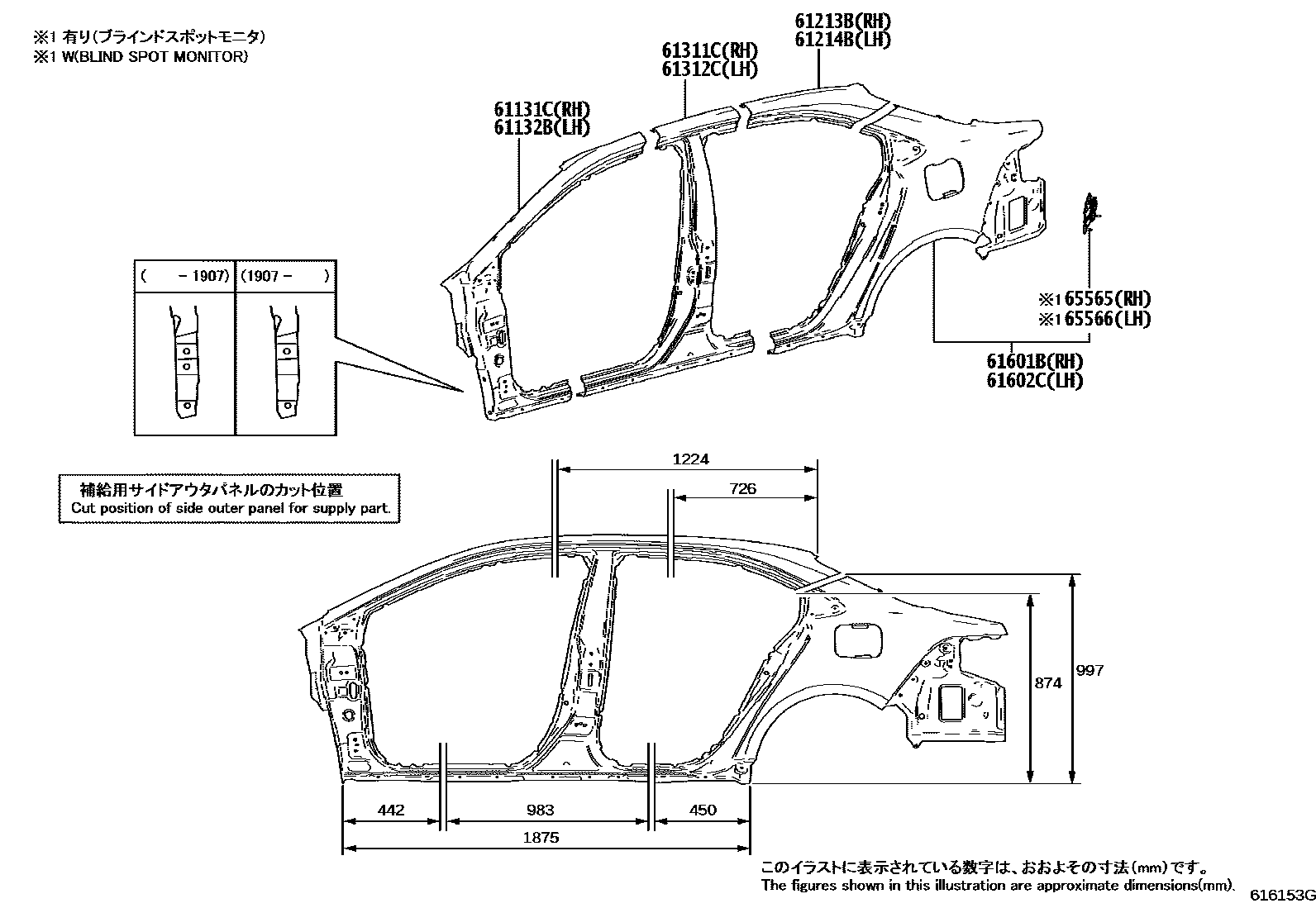

SIDE MEMBER
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61312CPANEL, REAR BODY FRONT OUTSIDE, LH
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-12C40iMZEA12..D;MZEA18,ZWE219..RHD..L; MZEA12..L; MZEA18..LHD..D; MZEA18..RHD..D;MZEA18..LHD..L; ZWE219..MXC202209-202307
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main61601-12D10supersedes 61601-12D20iMZEA12..D;ZWE219..ARL; MZEA12..L; MZEA18..D; MZEA18..L; ZWE219..MXC202407-202409
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-12C40iMZEA12..D;MZEA18,ZWE219..RHD..L; MZEA12..L; MZEA18..LHD..D; MZEA18..RHD..D;MZEA18..LHD..L; ZWE219..MXC202209-202307
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main61602-12D10supersedes 61602-12D20iMZEA12..L; MZEA18,ZWE219..L..(ARL,GEN); MZEA18..D; ZWE219..MXC202409
BACK MONITOR-CAMERA & WIRE HARNESS; BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
65565PATCH, SIDE PANEL REAR END, RH
main65565-50010iMZEA12..D;ZWE219..ARL; MZEA12..L; MZEA18..LHD..D; MZEA18..LHD..L; ZWE219..MXC202209-202409
BACK MONITOR-CAMERA & WIRE HARNESS; BACK MONITOR-CAMERA & WIRE HARNESS&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
65566PATCH, SIDE PANEL REAR END, LH
BACK MONITOR-CAMERA & WIRE HARNESS; BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
10 parts on this diagram · 3 diagrams in section
