REAR DISC BRAKE CALIPER & DUST COVER

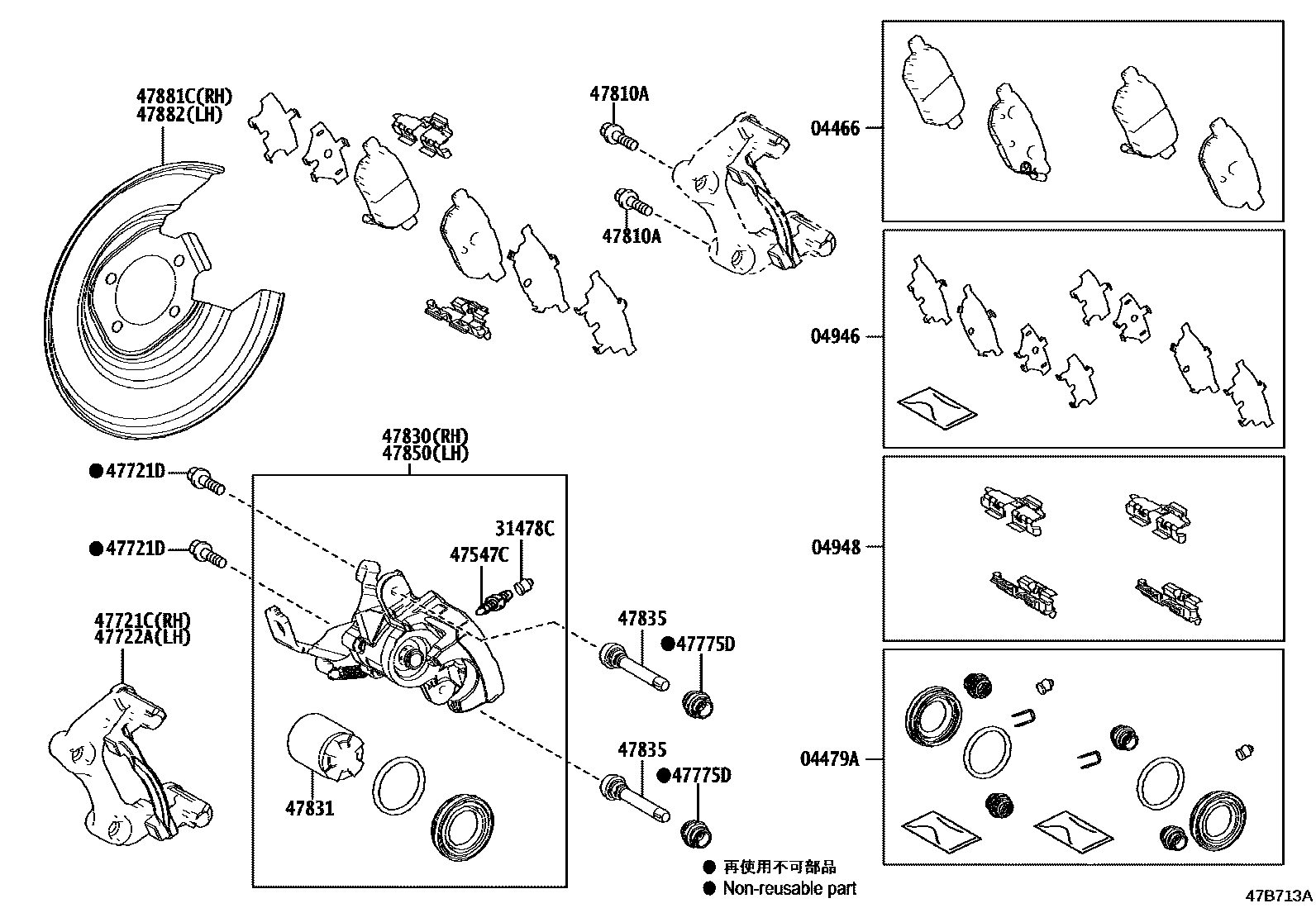

Parts diagram

04466PAD KIT, DISC BRAKE, REAR

main04466-12162i201901-202507

MARK NBK D6360-FF

main04466-47110i201901-202208

MARK NBK 478-XW5P

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091i201901-202507

main04479-12260i201901-202208

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12130i201901-202507

main04946-47070i201901-202208

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060i201901-202208

main04948-12070i201901-201904

main04948-12071i201905-202507

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i201901-202507

main31478-52010i201901-202208

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i201901-202507

main47847-52050i201901-202208

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47110i201901-202208

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102i201901-202208

main90015-AA603i201901-202507

*8-1.00PX23-12.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110i201901-202208

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150i201901-202208

main47875-33270i201901-202507

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174i201901-202507

main90105-12208i202209-202409

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12280i201901-202507

main47830-47111i201901-202208

47831PISTON, REAR DISC BRAKE

main47831-10030i201901-202507

main47831-52050i201901-202208

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150i201901-202208

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12280i201901-202507

main47850-47111i201901-202208

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-12130i201901-202507

main47881-12140i202209-202409

main47881-47010i201901-202208

47882COVER, DISC BRAKE DUST, REAR LH

main47882-12130i201901-202507

main47882-12140i202209-202409

main47882-47010i201901-202208

17 parts on this diagram · 2 diagrams in section
