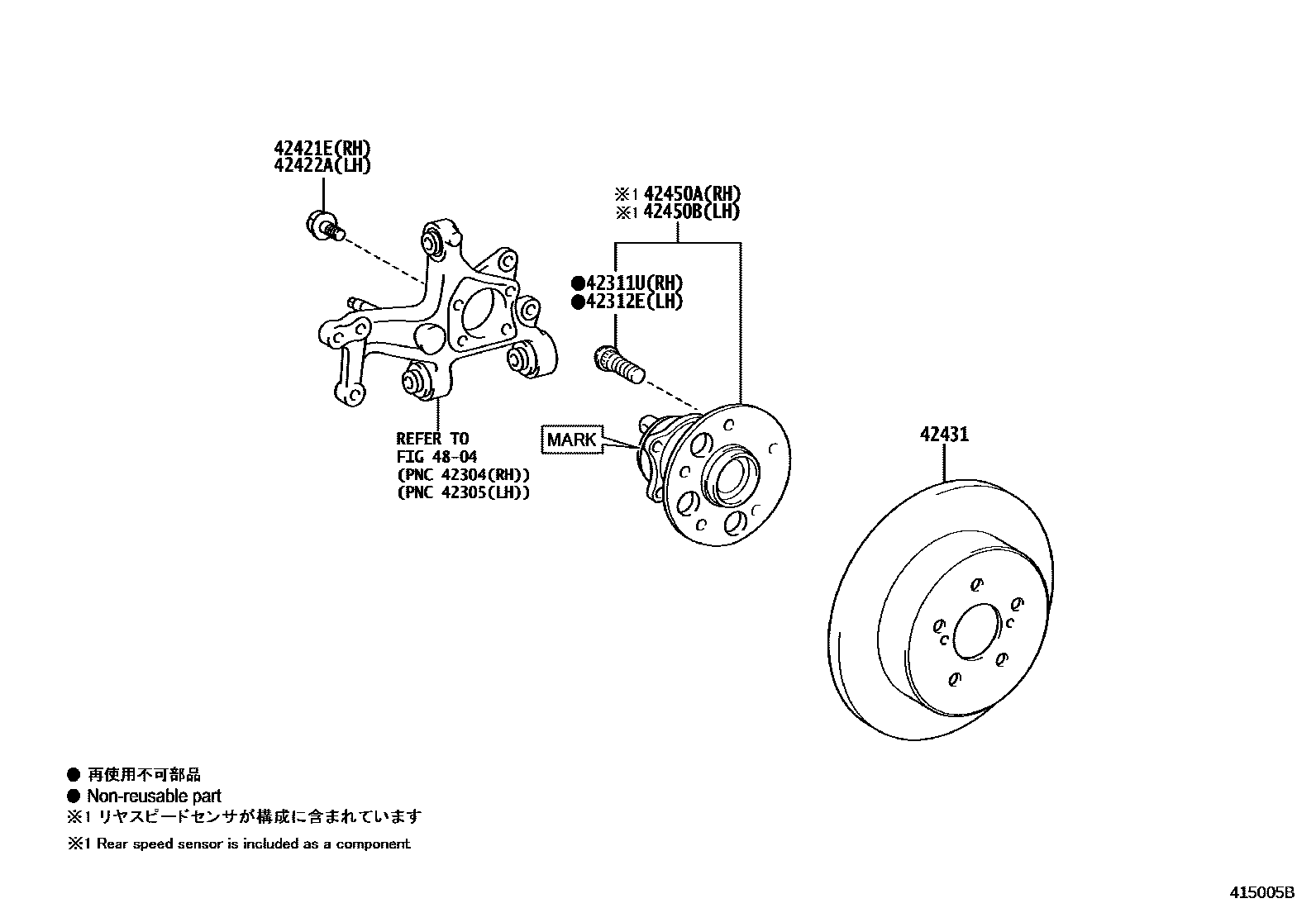

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMZEA18;MZEA12,ZWE219..L202409

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMZEA12,ZRE212,ZWE211201901-202004

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMZEA12..D202409-202507

main90105-12408×4iMZEA18..RHD202209-202307

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iMZEA12,ZWE219..L202409

main90105-12408×4iMZEA18..LHD202209-202409

42431DISC, REAR

main42431-12270×2iMZEA12..D202409-202507

main42431-12310×2iZRE212..LHD201901-202004

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12210iMZEA12,ZRE212,ZWE21#202004-202208

W/O MARK,MARK=DENSO

main42450-12211iMZEA12..D202409-202507

W/O MARK

main42450-12220iMZEA12,ZRE212,ZWE211201901-201911

MARK=DENSO

main42450-12230iMZEA18202209-202211

main42450-12231iMZEA18202409

main42450-76020iMZEA12,ZRE212,ZWE21#202004-202208

MARK=AISIN

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12210iMZEA12,ZRE212,ZWE21#202004-202208

W/O MARK,MARK=DENSO

main42450-12211iMZEA12,ZWE219202301-202409

W/O MARK

main42450-12220iMZEA12,ZRE212,ZWE211201901-201911

MARK=DENSO

main42450-12230iMZEA18202209-202211

main42450-12231iMZEA18..RHD202212-202307

main42450-76020iMZEA12,ZRE212,ZWE21#202004-202208

MARK=AISIN

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 2 diagrams in section
