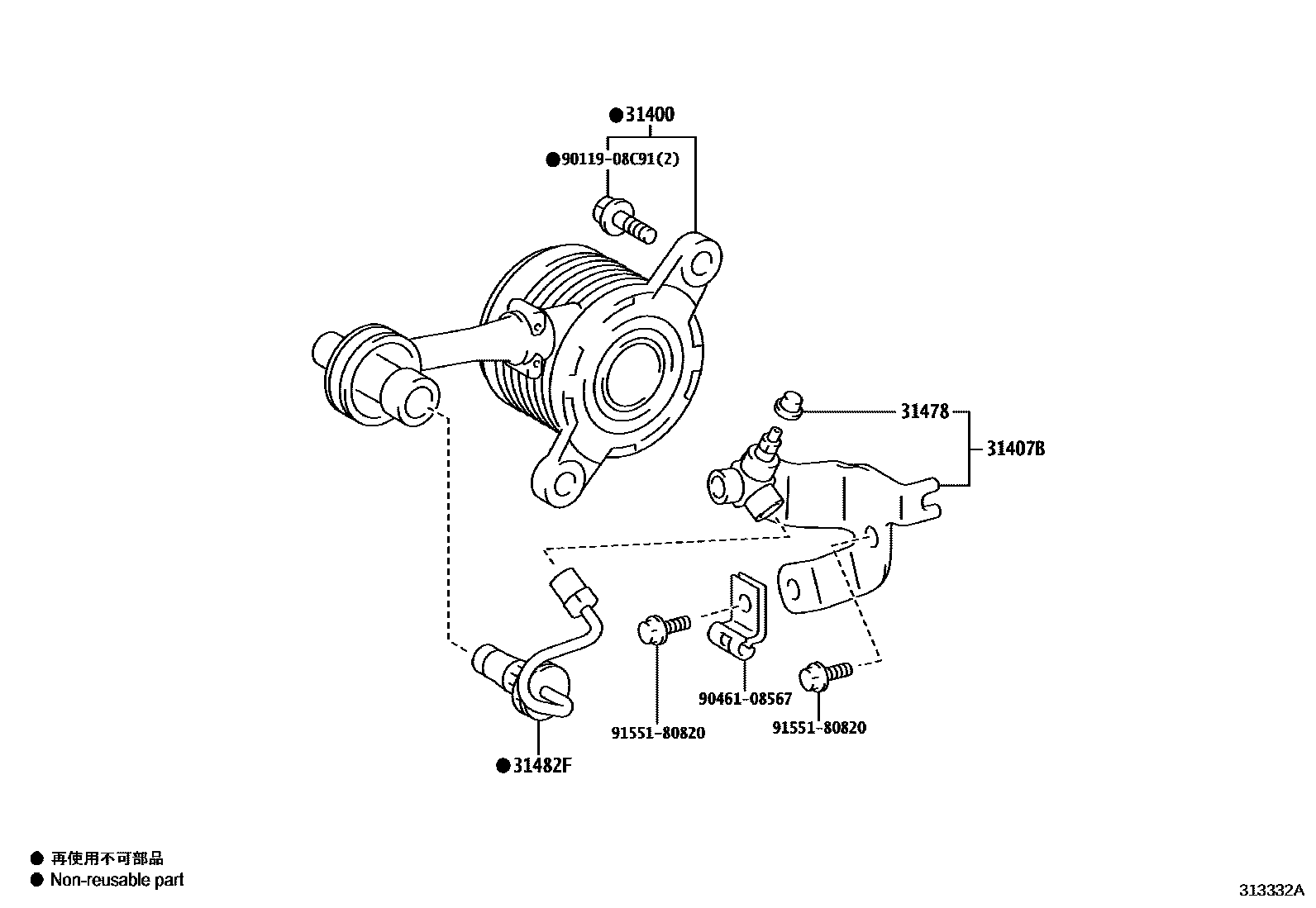

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-19025iMZEA12..6F201909-202004

main31400-19026iMZEA12..6F202111-202208

main31400-59025iZRE212..6F202004

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-12010iMZEA12..6F201909-202004

main31407-52010iZRE212..6F201901-202004

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMZEA12,ZRE212..6F201901-202004

31482FTUBE, CLUTCH RELEASE CYLINDER W/BEARING TO BLEEDER

main31482-12410iMZEA12..6F201909-202004

9011908C91

main90119-08C91

9046108567

main90461-08567

9155180820

main91551-80820

7 parts on this diagram · 2 diagrams in section
