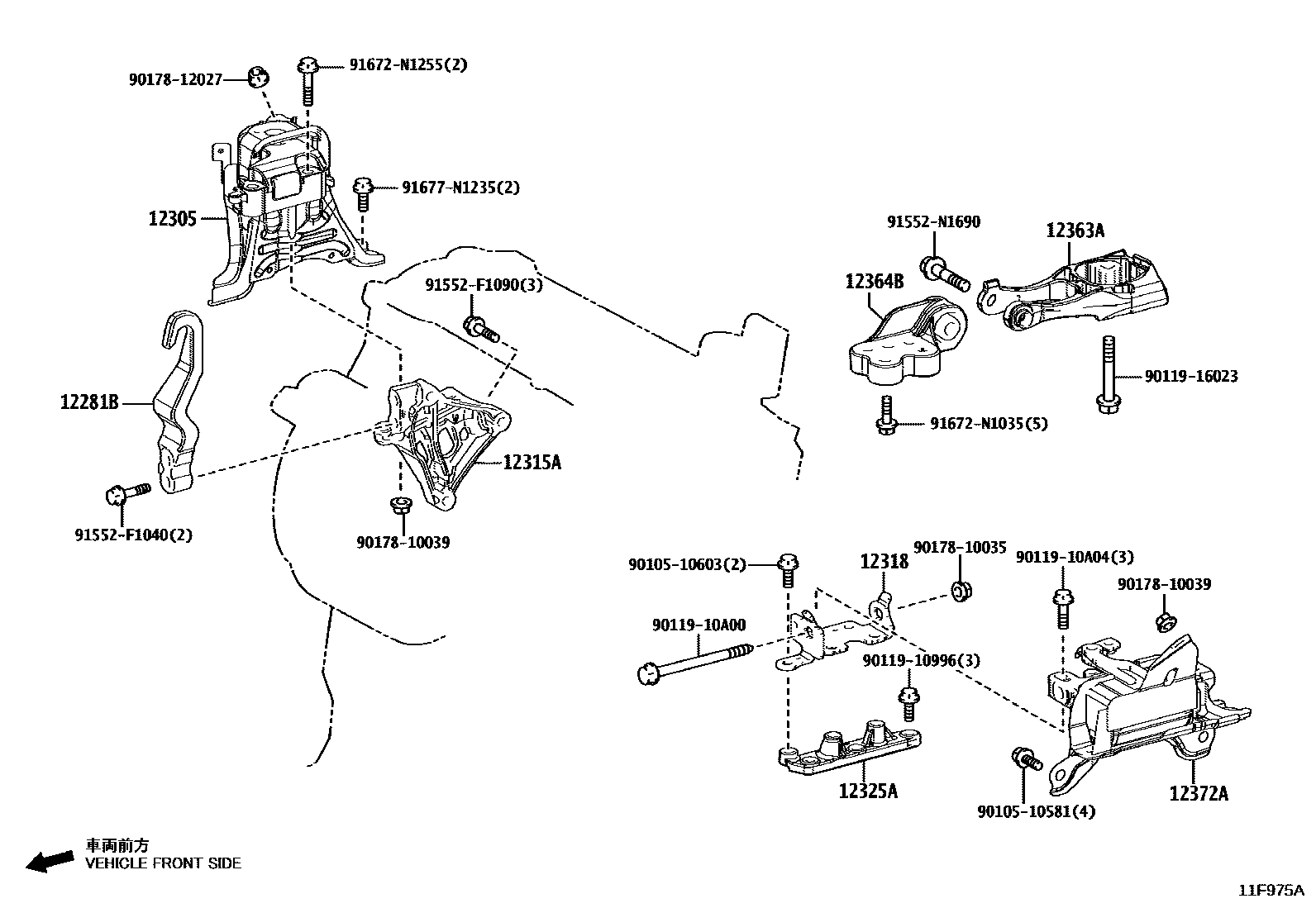

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFKS..MZEA18;M20AFKS..MZEA12..L202409

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24010iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD202209-202409

main12305-37341i2ZRFXE..ZWE21#202004-202010

main12305-37342i2ZRFXE..ZWE21#202010-202208

main12305-37380i2ZRFXE..ZWE219202409

main12305-37390i2ZRFAE..ZRE212201901-202004

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24010iM20AFKS..MZEA12202004-202105

main12315-24011iM20AFKS..MZEA18;M20AFKS..MZEA12..L202409

main12315-37060i2ZR#..ZRE212,ZWE211201901-202004

main12315-37070i2ZRFXE..ZWE219202409

12318STAY, ENGINE MOUNTING, LH

main12318-24010iM20AFKS..MZEA12..CVT202004-202106

main12318-24030×2iM20AFKS..MZEA12..6F201909-202004

main12318-24040iM20AFKS..MZEA12..6F202106-202208

main12318-47010i2ZRFAE..ZRE212..CVT201901-202004

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-24020iM20AFKS..MZEA12..CVT201909-202004

main12325-24050iM20AFKS..MZEA12..6F202106-202208

main12325-24070iM20AFKS..MZEA1#202409

main12325-47140i2ZRFAE..ZRE212..CVT202004-202208

main12325-47150i2ZRFAE..ZRE212..6F201901-202004

12363AROD, ENGINE MOVING CONTROL

main12363-24010iM20AFKS..MZEA12..6F201909-202004

main12363-24011iM20AFKS..MZEA12..6F202201-202208

main12363-24020iM20AFKS..MZEA1#202409

main12363-37031i2ZRFXE..ZWE21#202004-202208

main12363-37040i2ZRFAE..ZRE212..6F202004-202208

main12363-37060i2ZRFXE..ZWE219202209-202305

main12363-37080i2ZRFXE..ZWE219202306-202409

main12363-47101i2ZRFAE..ZRE212..CVT201901-202004

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-24010iM20AFKS..MZEA12..6F201909-202004

main12364-24020i2ZRFXE..ZWE219; M20AFKS..MZEA12;M20AFKS..MZEA18..LHD202209-202409

main12364-37040i2ZR#..ZRE212,ZWE21#..CVT202004-202208

main12364-37060i2ZRFAE..ZRE212..6F202004-202208

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T610i2ZRFAE..ZRE212..6F201901-202004

main12372-0T620i2ZRFAE..ZRE212..CVT202004-202208

main12372-24010iM20AFKS..MZEA12..6F201909-202004

main12372-24021iM20AFKS..MZEA12..CVT202004-202106

main12372-24070iM20AFKS..MZEA12..6F202106-202208

main12372-24080iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD202209-202407

main12372-24081iM20AFKS..MZEA1#202410

main12372-37313i2ZRFXE..ZWE21#202004-202208

main12372-37320i2ZRFXE..ZWE219202209-202212

main12372-37321i2ZRFXE..ZWE219202409

9010510581

main90105-10581

9010510603

main90105-10603

9011910996

main90119-10996

9011910A00

main90119-10A00

9011910A04

main90119-10A04

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

23 parts on this diagram · 8 diagrams in section
