ENGINE OVERHAUL GASKET KIT

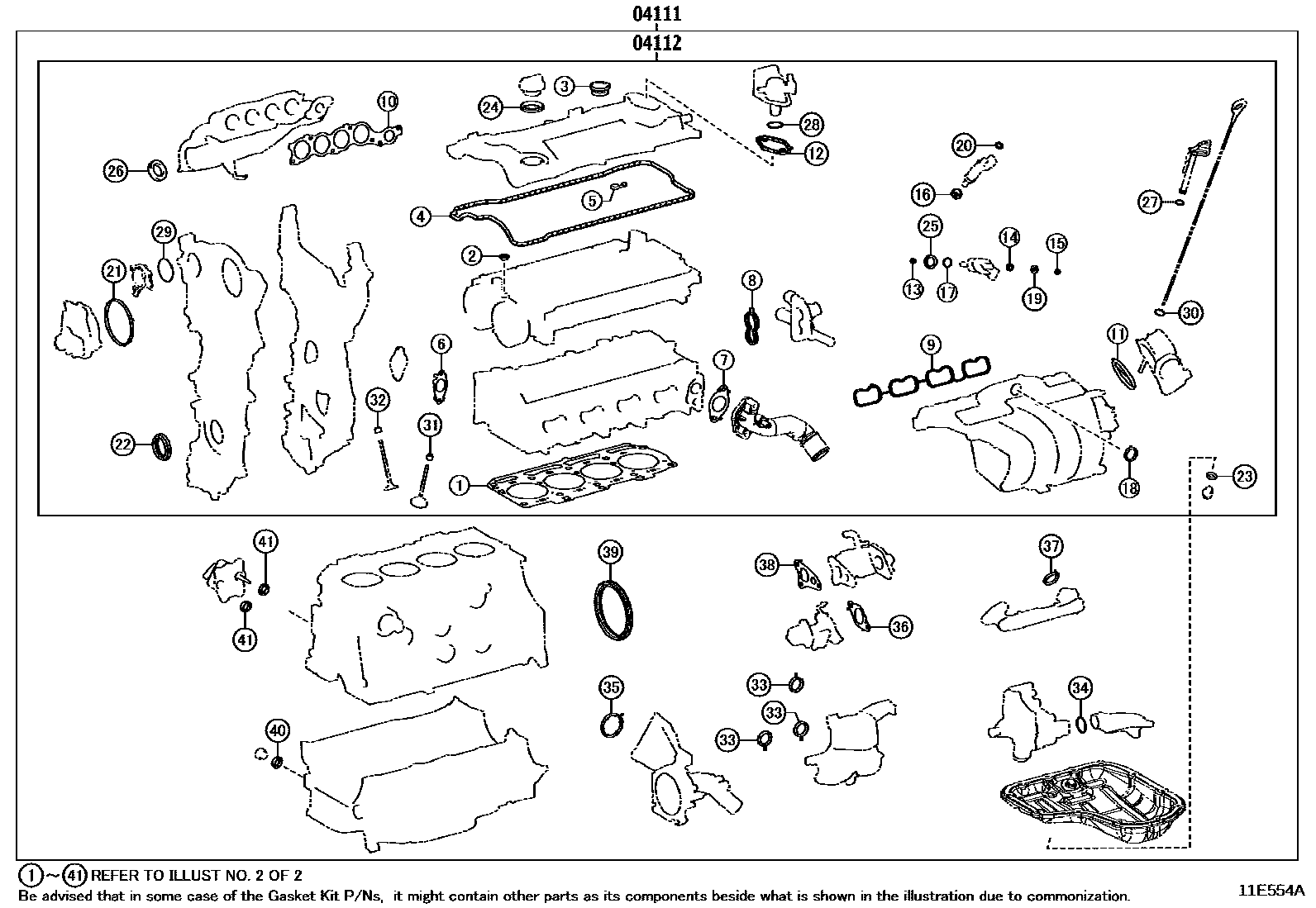

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-24120i201909-202107
sub04111-24121
main04111-24121i202107-202507
main04111-24200i202209-202409
main04111-37501i201901-202004
sub04111-37502
main04111-37540i201901-202109
sub04111-37541
main04111-37541i202110-202208
main04111-37560i202004-202109
sub04111-37561
main04111-37561i202110-202409
04112GASKET KIT, ENGINE VALVE GRIND
main04112-24060i201909-202107
sub04112-24061
main04112-24061i202107-202507
main04112-24120i202209-202409
main04112-37224i201901-202109
sub04112-37225
main04112-37225i202110-202208
main04112-37381i201901-202004
sub04112-37382
main04112-37400i202004-202109
sub04112-37401
main04112-37401i202110-202409

2 parts on this diagram · 8 diagrams in section
