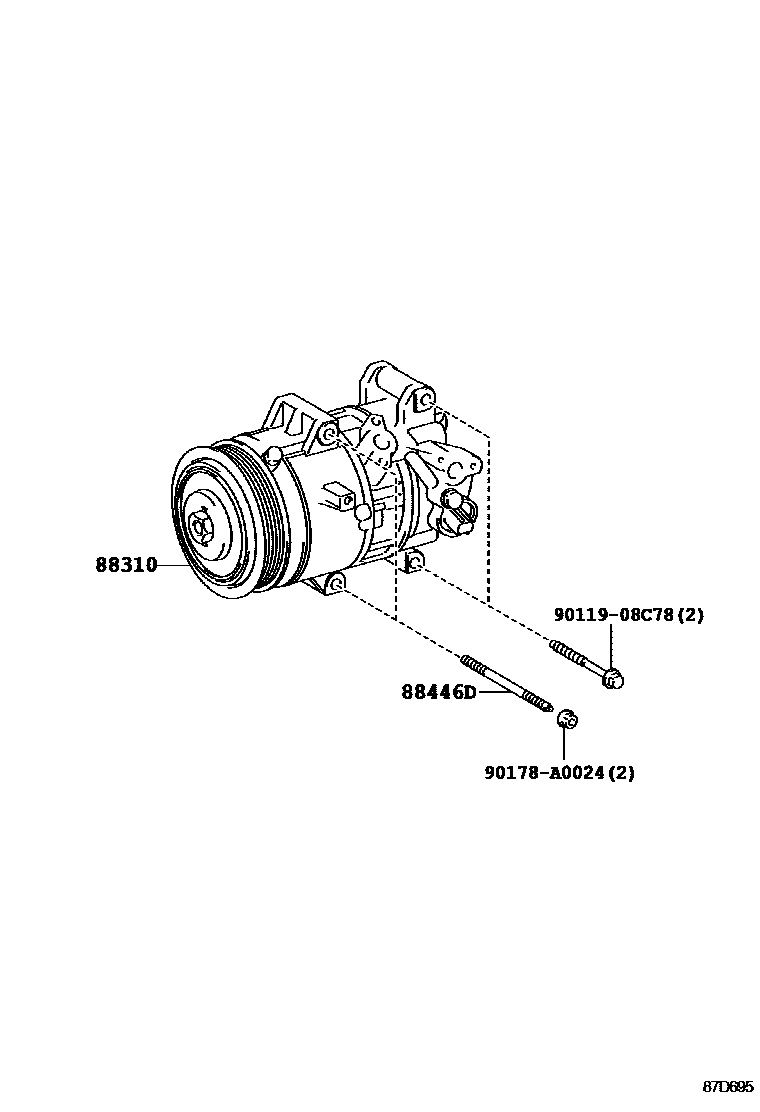

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02850iZRE172201308-201407

main88310-02851iZRE172201408-201601

AIR CONDITIONER-WITHOUT

main88310-02852iZRE172201602-201608

AIR CONDITIONER-WITHOUT

main88310-02852iZRE172..6F..S;ZRE172..LE,STD;ZRE172..CVT..S..GEN201608

AIR CONDITIONER-MANUAL

88446DBOLT, COOLER

main88446-02120iZRE172..4FC201308-201608

main88446-02120iZRE172201608

AIR CONDITIONER-WITHOUT

9011908C78

main90119-08C78

90178A0024

main90178-A0024

4 parts on this diagram · 2 diagrams in section
